Description

Product Information

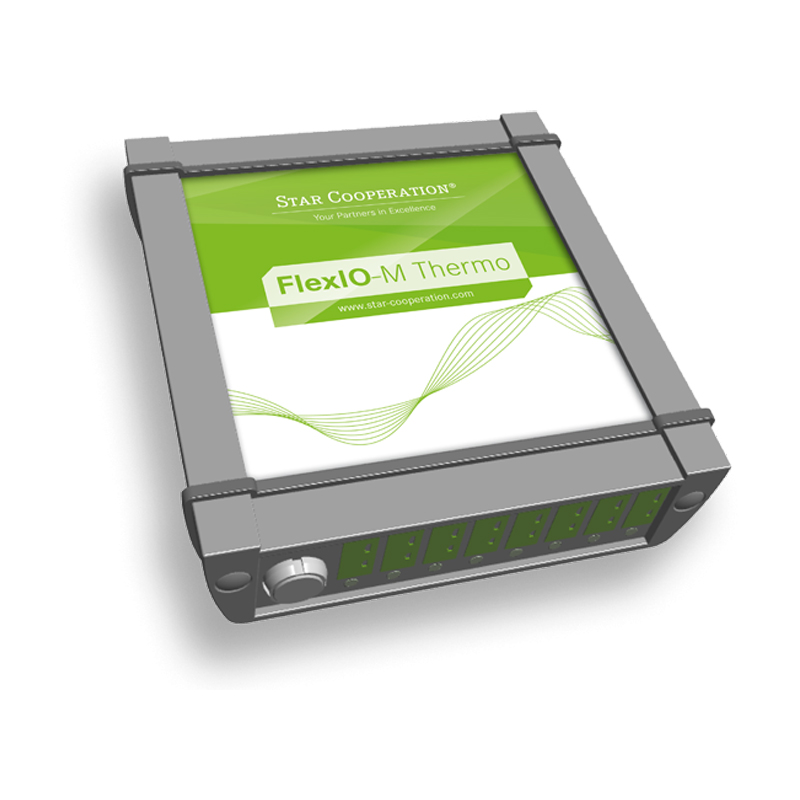

The thermal element measurement module FlexIO-M Thermo facilitates a galvanically separated temperature measurement by evaluating 8 type K thermal elements. These measurement values are exported cyclically via the CAN interface.

It is suitable for operating in 12 V, 24 V and 48 V on-board networks due to its large supply voltage range of 6 V to 60 V. With its operating temperature range of -40°C to +85°C, it is ideal for use in test benches and test vehicles.

The included PC software enables the comfortable and easy configuration of the CAN messages' IDs and cycle times. After transfer to the hardware via USB, the configuration is saved there and can be installed without PC connection.

Advantages

• Temperature measurement of -100°C up to +1372°C

• Variation with 8 channels

• Big supply voltage range of 6 V – 60 V

• Galvanically separated measurement

• Measurement value output on CAN bus

Characteristics

• Precise, galvanically separated temperature measurement of -100°C up to +1372°C

• 48 V on-board network-able due to supply of 6 V to 60 V

• Cold-junction compensation for each channel

Applications

• Experimental and test set-up

• Test benches/individual measurement tasks

• Temperature monitoring in test vehicles

• Temperature measurement in HIL set-ups

Scope of Delivery

• FlexIO-M Thermo (device)

• Configuration software for Windows

• Connector cable (supply and CAN on banana plugs), length 2m

• Manual

Accessories (Optional)

• Customer-specific connector cable

• Customer-specific type K measurement lines
