FlexOpto
Part No.: MPSC-FlexOpto
FlexOpto is a bidirectional media converter which transmits electrical FlexRay, CAN or LIN signals via optical fibre.
產品介紹
Description
Product Information

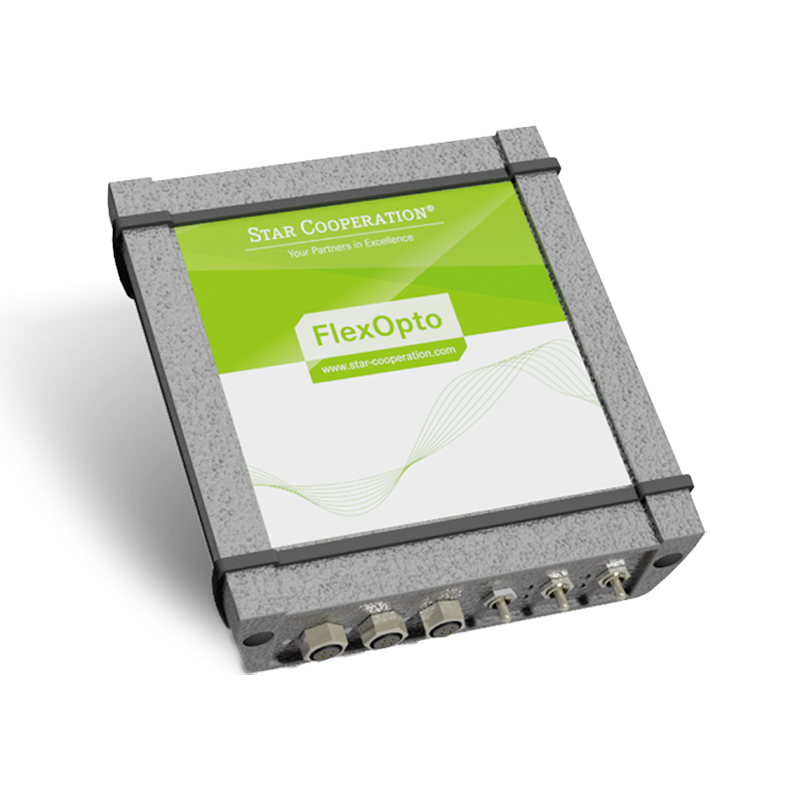

FlexOpto is a bidirectional media converter which transmits electrical FlexRay, CAN or LIN signals via optical fibre. For an independent use, a high capacity lithium ion battery allows an operation up to 40 h without charging. The PCB design is optimized for EMC tests, emits very little noise and is unsusceptible against high levels of electromagnetic noise.
Advantages
-
Complete EMC optimized design with best-in-class low emissions
-
Best-in-class unsusceptible against noise
-
Integrated battery, up to 40 h operation
-
Supports WUP and symbols (CAS, MTS, ...)
-
Integrated, switchable network termination with power resistors
Application Areas
EMC Testing
FlexOpto has a PCB that is optimized for EMC testing. Operating on internal, a rechargeable lithium ion battery, it can transmit the signals from a DUT into an EMC chamber to the FlexOpto outside via optical fibre. Using an interface e.g. a FlexCard family interface, the communication can be monitored.
Galvanic Isolation
FlexOpto can be used as galvanic isolation for FlexRay, CAN or LIN networks. Areas with high voltage can be isolated and groundshifts can be eliminated. Measurement equipment can be protected and the operator is safe because of the non conducting connection.
Range Extender
FlexOpto works as a range extender for FlexRay, CAN or LIN networks. It avoids reflexions because of unterminated tabs or distortion, e.g. caused by magnetic fields from electric motors etc. Because of the optical connection, the signal is not affected.
| Timings | FlexOpto | |
|---|---|---|
| FlexRay pulsewidth distortion | ±2 ns at 10 m HCS | |
| FlexRay bit delay | 195 ns at 10 m HCS | |
| FlexRay TSS truncation | 145 ns at 10 m HCS | |
| CAN pulsewidth distortion | ±4 ns at 10 m HCS | |
| CAN delay | 275 ns at 10 m HCS | |
| LIN pulsewidth distortion | ±4 µs at 10 m HCS | |
| LIN delay |
12 µs at 10 m HCS
|
|
Features
| Application Areas | ||
|---|---|---|
| EMC Testing | ✔ | |
| Galvanic Isolation | ✔ | |
| Range Extender | ✔ | |
| EMC Characteristics | ||
|
Emissions (CISPR 25: 2008-03 ALSE-method) |
Class 5 | |
|
Unsusceptible Against Noise
(ISO 11452-2:2004-11)
|
min. 270 V/m | |
|
Battery supply
|
||
| Battery Operation | up to 40 h | |
| Connectivity | ||
| FlexRay | Binder 712, 4 Pin | |
| CAN | Binder 712, 4 Pin | |
| LIN | Binder 712, 4 Pin | |
| Optical Fibre |
850 nm, ST connector, 1x Rx, 1x Tx
(SMA connector available on request)
|
|
| Supply | Binder 712, 4 Pin | |
| Switchable Termination | ✔ | |
| Device | ||
| Housing | 145 x 125 x 35 mm³ | |
| Supply Voltage | Li-Ion charger 8,4 V | |
| Temperature Range |
Operating mode: 0°C – 40°C
Charging: 10°C – 30°C
Storage (short-term): -20°C – 60°C
|
|
| Scope of Delivery | ||
| Device | 2x | |
| Documentation in PDF Format | ✔ | |
| Cables |
2x Li-Ion charger
1x fibre optic cable
1x bus cable
1x bus connector set
1x gender changer
|
|
Order Information FlexOpto
| Product | Description | |
|---|---|---|
| FlexOpto |
Media converter for FlexRay, CAN-HS or LIN into optical signals and vice versa. |
|
| 2Cell Li Ion Charger | Specific charger for FlexOpto | |
|
FlexOpto
bus cable (2 m)
|
4 pole Binder male to 9 pole D-Sub female connector |
|
|
Fibre Optic
cable (10 m)
|
Fibre optic cable | |
