Product Information

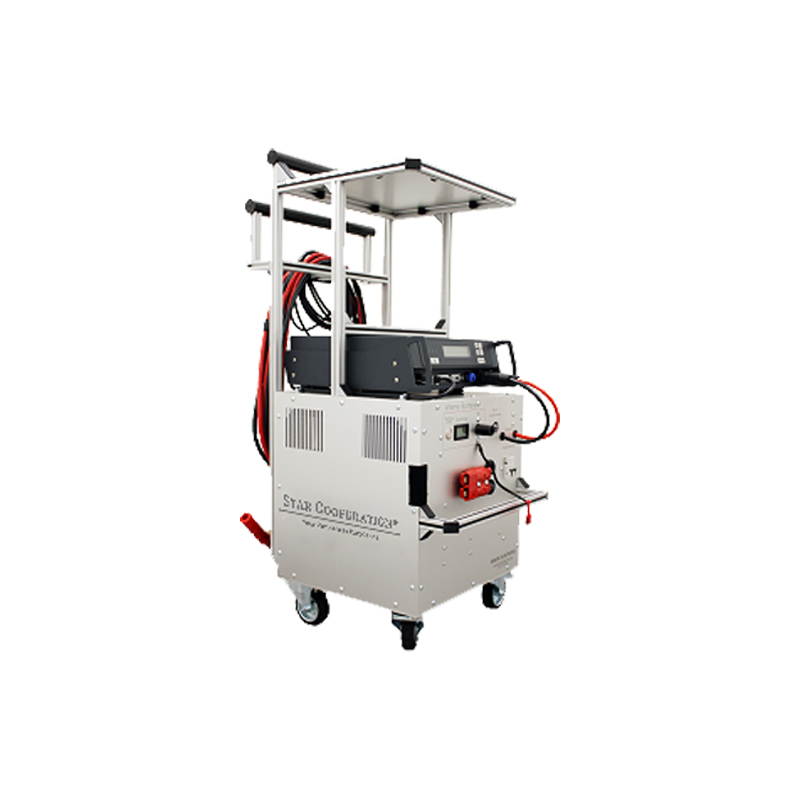

FlexSupply-M was designed for supporting on-board networks during repair and service work on vehicles. It contains a charger, a car battery and various electronics components.


Advantages

• Deep discharge, overvoltage and overcurrent protection

• Nominal capacity: 1,200 W; maximum capacity: 1,500 W

• Applicable as charger and external current supply

Technical Details

• ​Charger 12 V/20 A

• Car battery 12 V AGM 75 Ah

• Deep discharge protection of internal battery (<11.3 V)

  • Load break after 40 seconds

  • Automatic restart

  • Optical and acoustic signaling

• Overvoltage protection of internal battery (>15.2 V)

  • Load break after 40 seconds

  • Automatic restart

  • Optical and acoustic signaling

• Two-tier overcurrent protection in case of inverse polarity or a short-circuit

  • Load break through electronics

  • Load break through safety switch

  • Optical and acoustic signaling

• Abnormal temperature protection

• Connector cable set with pole clamps

• Dimensions 320

FlexSupply-M – 12V (BE2441.120)

Short Description

• Can be used as a charging device/external power supply unit/jump-start unit

• Internal 12 V car battery, 75 Ah

• Overload protection/short circuit protection

• Premium charging device by Eltek – MC1500

• Sense line for controlling the optimal charging voltage

• 12 V tap – 4 mm banana connectors (incl. 20 A safeguard)

• Acoustic alarm and circuit breaker for charges over 350 A

• Acoustic alarm and circuit breaker for voltage reversal

• Voltage display for the internal battery

• Support table for storing laptop and tools

• Robust construction with ram protection on the front

• Premium battery connection cable with terminals (3.5 m long)

• Dimensions (LxWxH) 380 x 380 x 870 mm

Technical Data, Charging Device:
​
