BABY-LIN-3-Dual
Part No.: MPLPS-BABY-LIN-3-Dual
LIN- & CAN-Bus simulation device with USB interface
產品介紹

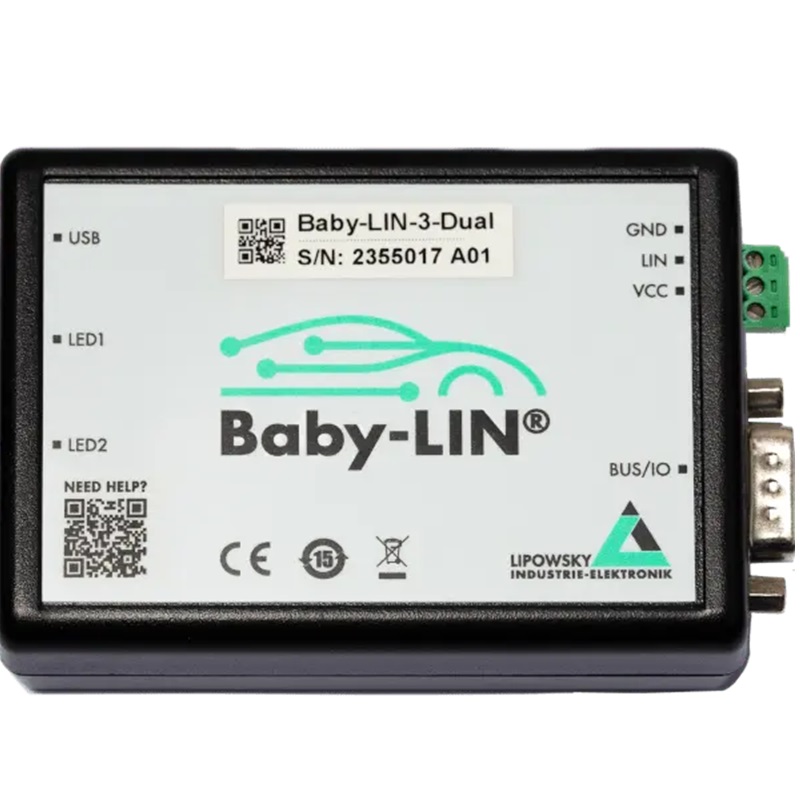

Description
The Baby-LIN-3-DUAL combines a LIN and a CAN bus interface for USB control in a compact device. Control is implemented using the API functions of the Baby-LIN-DLL, known from Generation 2. The system also supports stand-alone operation, allowing for tasks such as continuous run sequences to be executed without a PC. Additionally, galvanic isolation ensures interference-free data transmission.
The delivery of a Baby-LIN-3-Dual system includes the following components:
- Baby-LIN-3-Dual device
- USB-C 2.0 cable, 1m, type A to type C
- A 3-pole plug with screw connection (MC 1,5/ 3-ST-3,81)
- Download licence for LINWorks suite (includes LINWorks PC software, sample files and documentation)
Performance Overview
Application areas
- Extends PC and Raspberry Pi with a LIN interface
- Residual bus simulations with PC front end (LINWorks or own application)
- Supports stand-alone operation without PC, e.g. for endurance runs
- Read and write frame data in real time
- Monitoring of a running LIN bus for viewing or recording LIN frames.
Compatibility and system requirements
- Windows 10/11 (32/64 Bit)
- Interface to the DLL library for:
- Windows (x86 & x64), PC based Linux (x86 & x64), ARM based Linux (ARM32 & ARM64)
- Native programming for C/C++ as well as via wrappers in .NET languages, Python, VB6 and LabView are possible
Technical function
- Supports LIN bus versions 1.2, 1.3, 2.0, 2.1 and 2.2
- CAN high-speed interface (ISO 11898-2), upgradeable to CAN-FD through a paid activation.
- Galvanically isolated bus interfaces
- Simulation of LIN master and LIN slave nodes possible
- Can also be used as a LIN-CAN gateway in standalone mode
- On-board voltages from 8 - 28V
Technical Specifications
Device
- Power supply: 8-26 VDC
- Power supply via 3 pin connector (MC 1,5/ 3-ST-3,81) or male SUBD9 connector
- Galvanic isolation of the communication interfaces and USB plug side
- CPU: ARM Cortex-M7, 480 MHz
- Memory: 32 MB RAM
Interface: USB Device
- USB 2.0 high-speed (480Mbit/s) interface
- Connection via USB-C plug
Interface: LIN
- 1 LIN-Bus interface available
- 1 Red/green LED (LED1) to show state of the LIN-Bus and the supply voltage
- LIN-Bus connection via 3 pin connector (MCVR 1,5/ 3-ST-3,81) or SUB-D9 connector
- LIN-Bus supply voltage: 8-26 VDC
- LIN-Bus baud rate: up to 115200 Baud (Support of protocols outside of the LIN specification)
- Supported LIN versions: V1.2, V1.3,...V2.2
- Supported LIN related protocols: Cooling and SAE J2602
- Maximum signal cable length for LIN-Bus: 30 m
Interface: CAN
- 1 CAN-HS-Bus interfaces according to ISO-11898 with up to 1Mbit/s.
- Upgradeable to CAN-FD-Bus according to ISO-11898-1:2015 with data baudrates up to 8 MBit/s, voucher code required.
- CAN-Bus connection via SUB-D9 connector, pin layout according to CiA DS102
- 1 Red/green LED (LED2) to show state of the CAN-Bus
- Internal switchable 120R termination resistor
- Galvanic isolation from LIN-Bus and USB
- Maximum signal cable length for CAN-Bus: 30m
Case:
- Degree of protection: IP20
- Operating temperature: -20°- +80°Celsius
- Weight: 95 g

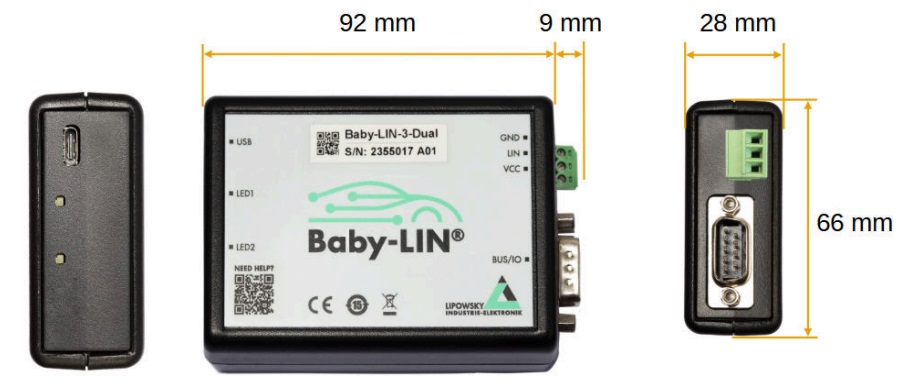

- Case dimensions [mm]: 92 x 66 x 28 (L x W x H), external connectors not included.
Ordering Information
- Baby-LIN-3-Dual (8001023) - LIN- and CAN-Bus simulation device with USB interface
