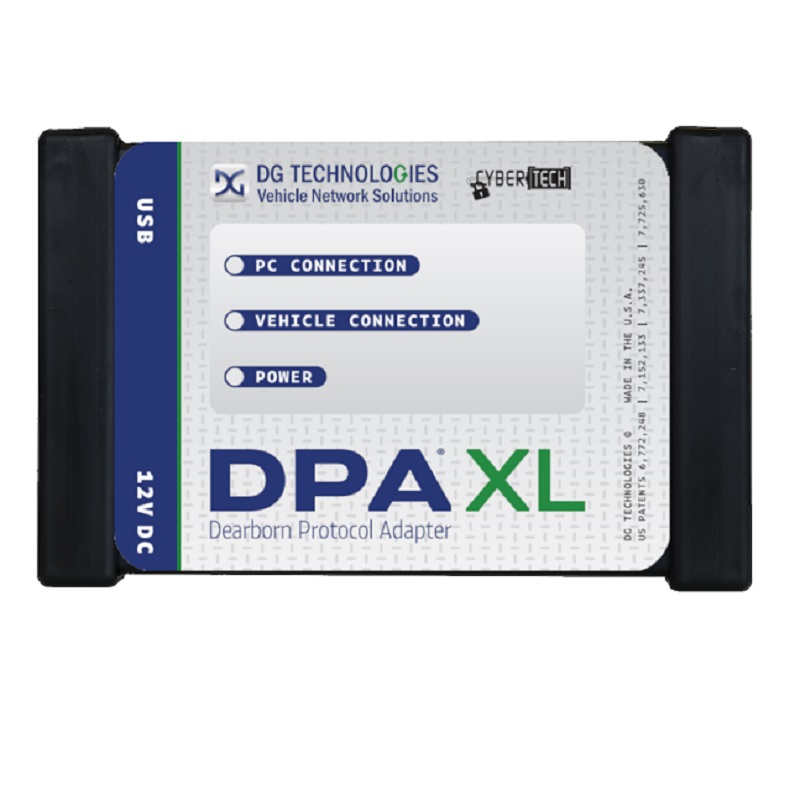

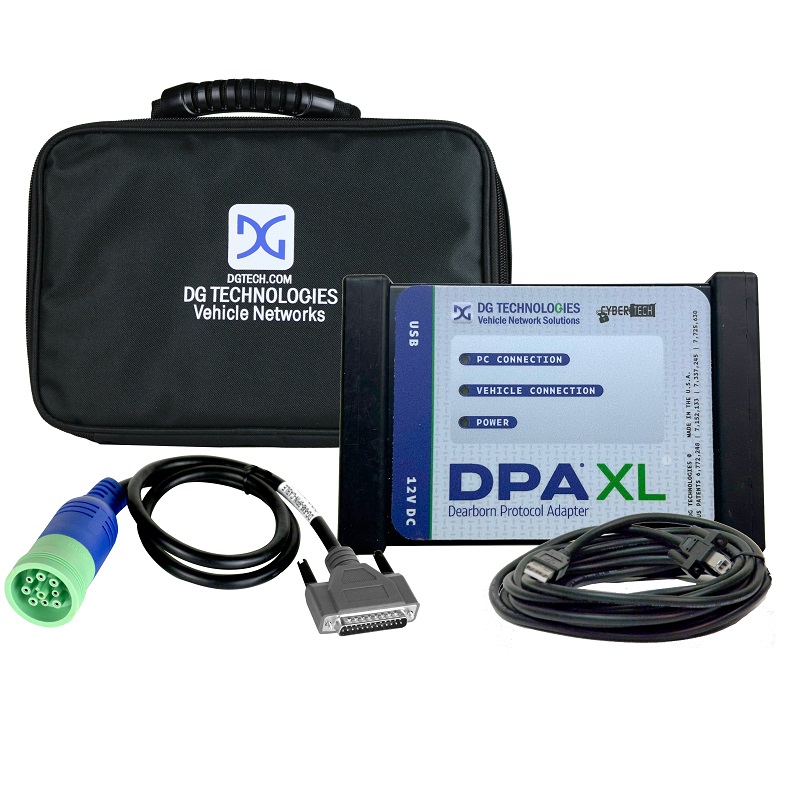

DPA XL

Part No.: MPDG-DPA-XL
Industry standard (SAE, TMC, ISO), J1939, J2534, J1708, CAN,
CAN FD, K-Line, ISO 9141, ISO15765 & more!

產品介紹

Description

The ALL-NEW DPA XL is DG’s newest, TMC RP1210 compliant Dearborn Protocol Adapter (DPA) with current and future technologies built-in for years of shop services. It is the leading tool of choice for Diagnostics and Reprogramming of Heavy-Duty, Medium-Duty and some Light-Duty vehicles and covers over-the-road, bus, construction, agricultural, military, industrial stationary equipment and fleet vehicle segments.

Product Highlights

  • Industry standard (SAE, TMC, ISO), J1939, J2534, J1708, CAN,
  • CAN FD, K-Line, ISO 9141, ISO15765 & more!
  • Industry First Technologies
  • 4 Independent channel communication capability
  • 2 channel CAN FD communication capability
  • Protected by CyberGuard
  • Embedded Hardware Security Module (HSM)
  • Rugged enclosure for any environment
  • USB Powered for updates
  • Patented secure USB connector
  • DG Diagnostics software included
  • Bluetooth Wireless
  • RP1227 for Mobile Apps

Features & Benefits

  • TMC RP1210A/B/C complete compliance
  • SAE J2534 compliance (04.04 & 05.00)
  • 4 Independent CAN channels
  • 2 Channel CAN FD capable
  • 1 Channel FT CAN capable
  • Embedded Hardware Security Module (HSM)
  • Included software via DG Utilities
  • Adapter Validation Tool (AVT)
    • DG Data Recorder
    • DG Diagnostics
    • DG Update
  • Patented, secure USB connection
  • Bluetooth Wireless
  • RP1227 compatible for Mobile Apps
  • Rugged design to withstand the shop environment
  • US-based Technical Support Team
  • Built in the U.S.A.

Additional Information

Weight: 2 lbs
Dimensions: 9.5 x 7 x 1 in
