DPA XL V13 Kit

Part No.: MPDG-DPA-XL-V13-Kit
This kit includes “Y” cable for Volvo vehicles 2013+ with a J1962-style connector and a standard 9-pin Deutsch connector.

產品介紹

Description

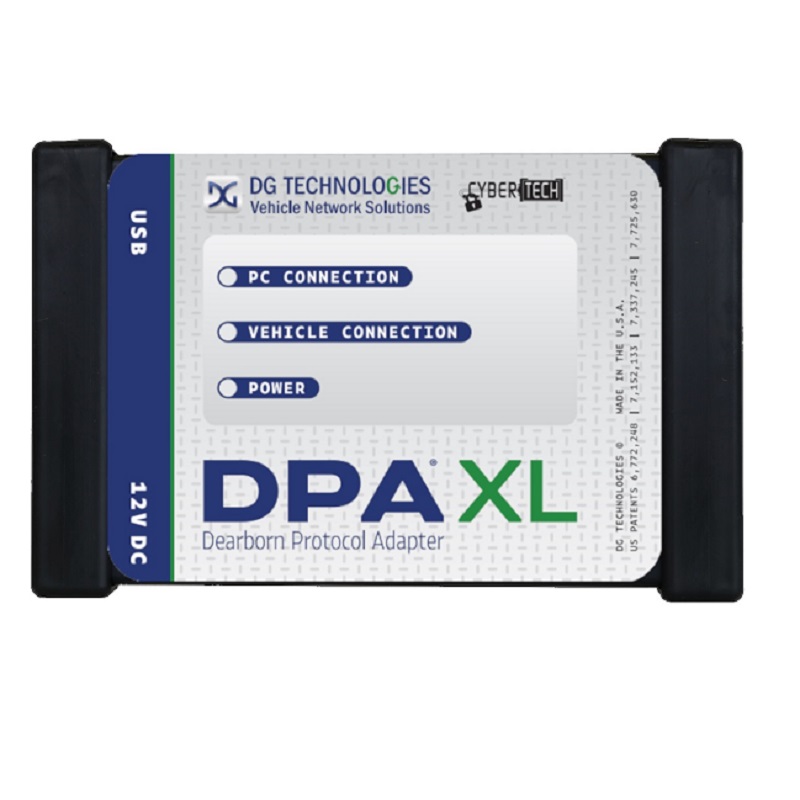

The ALL-NEW DPA XL is DG’s newest, TMC RP1210 compliant Dearborn Protocol Adapter (DPA) with current and future technologies built-in for years of shop services. It is the leading tool of choice for Diagnostics and Reprogramming of Heavy-Duty, Medium-Duty and some Light-Duty vehicles and covers over-the-road, bus, construction, agricultural, military, industrial stationary equipment and fleet vehicle segments.

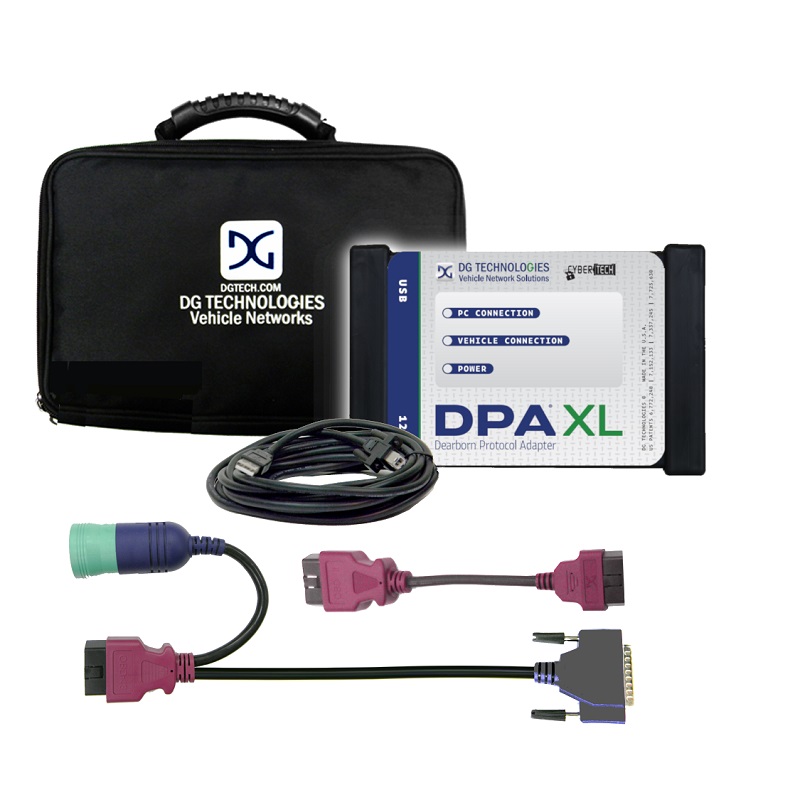

KIT CONTAINS

  • DPA XL Adapter
  • USB Cable with thumb screws
  • Quick Start Guide
  • Carrying Case
  • DG-295-10839
  • DG-V13-XOVER-CABLE
DG-295-10839
  • Connects DPA XL to the OBDII (J1962) connector of some 2013 & newer trucks for performing diagnostics using OEM applications or DG Diagnostics.
  • The J1939 Type II Deutsch connector connects to all J1939 Type II and Type I connectors for J1708 and J1939 OEM diagnostics.
  • The J1962 connector covers light and medium duty vehicles using CAN/ISO15765 (2008 and newer mandated), as well as GM J1850, GM SWCAN, and ISO9141 protocols.
DG-V13-XOVER-CABLE
  • This cable is used in conjunction with the V13 Y-Cable to run J1939-based component diagnostic applications from Allison, Eaton, Meritor-WABCO, Bendix (etc) on the 2013 and newer Volvo/Mack vehicles with a Volvo engine. It allows J1939 and J1708/1587 communication using the vehicle OBDII diagnostic port.

Features & Benefits

  • TMC RP1210A/B/C complete compliance
  • SAE J2534 compliance (04.04 & 05.00)
  • 4 Independent CAN channels
  • 2 Channel CAN FD capable
  • 1 Channel FT CAN capable
  • Embedded Hardware Security Module (HSM)
  • Included software via DG Utilities
  • Adapter Validation Tool (AVT)
    • DG Data Recorder
    • DG Diagnostics
    • DG Update
  • Patented, secure USB connection
  • Bluetooth Wireless
  • RP1227 compatible for Mobile Apps
  • Rugged design to withstand the shop environment
  • US-based Technical Support Team
  • Built in the U.S.A.

Additional Information

Weight: 2 lbs
Dimensions: 9.5 x 7 x 1 in
