VSI-2534

Vehicle Standard Interface

The go-to J2534 reprogramming and diagnostic device providing Mechanics, Technicians, Locksmiths and

Vehicle Security Professionals Complete Automotive Coverage for Engine, Brakes, Transmission & Body

Differentiation

• Out-of-the-box diagnostic and reprogramming capability in a single device.
• Industry first 2 year warranty

Key Features

• OBDII to laptop communication using OBDII/serial cable
• Adapter to PC validation software
• High speed USB to CAN interface connectivity
• GM Tech2Win Compatible
• GM GDS2 Compatible
• Includes DG Diagnostics OBDII
• Includes DG Update software

Benefits

• Provides advanced dealership diagnostics with OEM software
• Technicians kit for J2534 module programming
• Complete diagnostic functionality
• Freeze frame, data monitoring and data logging
• Read/Clear Codes
• Key Programming
• Immobilizer Adaptation
• Free personalized technical support. Phone or email
• Complete J2534-1 compliance with J2534-2 support

Protocols Suppportd

• ISO 14230 (LWP2000)
• SCI and GM-UART
• MSCAN.
• J1850 PWM (Ford SCP)
• J1850 VPWM (GM Class 2 & Chrysler)
• CAN (ISO 11898,J2284)
• GM LAN (HSCAN + SWCAN)
• ISO 15765
• ISO 9141
• ISO 14230
• ISO 22900

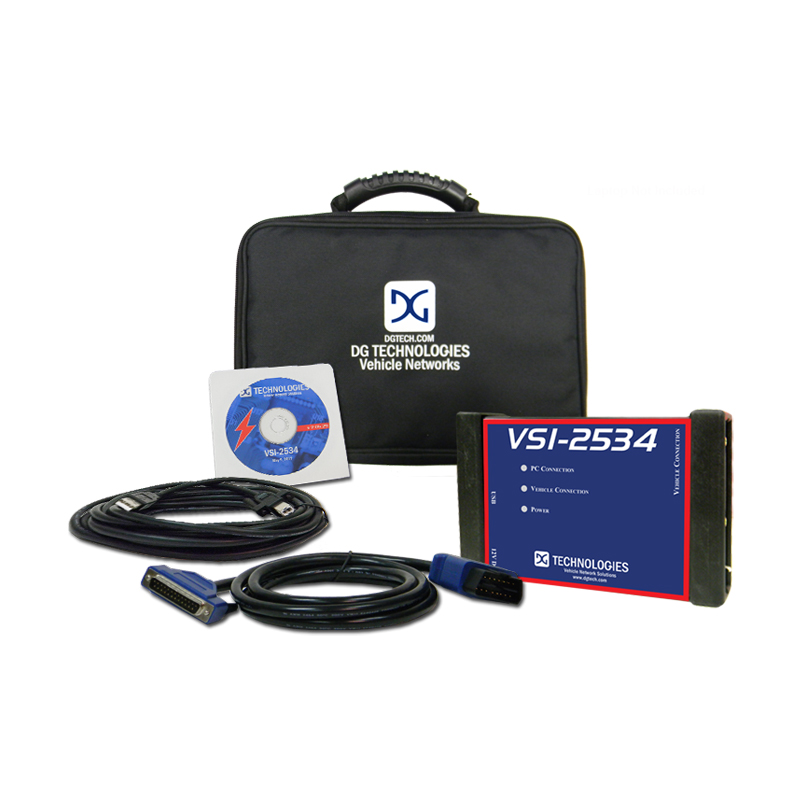

This is the standard VSI-2534 Kit that includes:

• Adapter
• OBDII cable
• USB cable
• Installation CD with OBDII DG Diagnostics
• Quickstart guide.
