FibreOptic foLIN

Part No.: MPPT-FibreOptic-foLIN
1 – 20 kbit/s

產品介紹

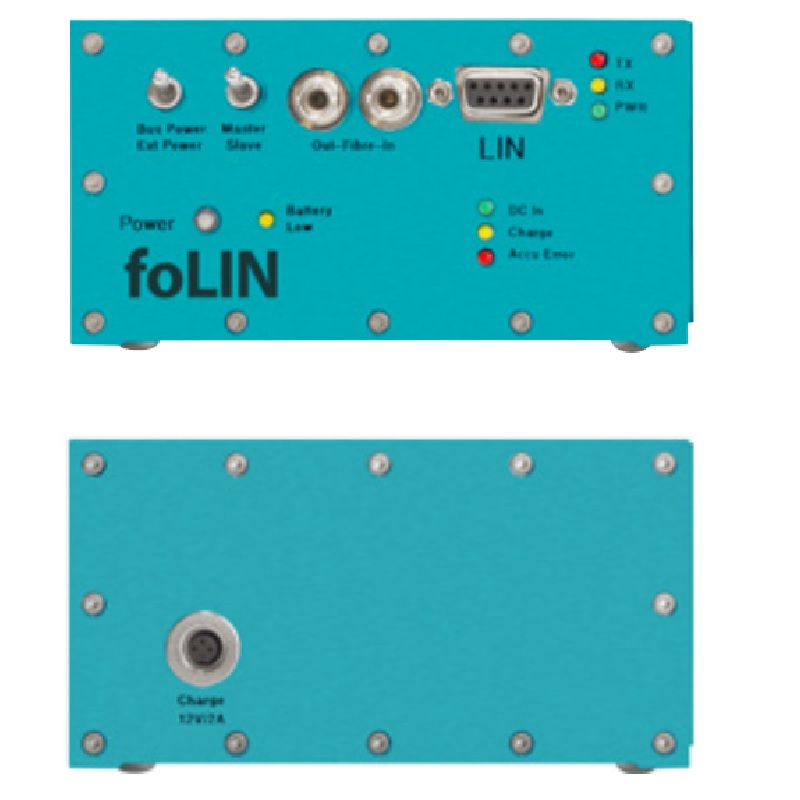

foLIN

  • 1 – 20 kbit/s
  • Switchable terminator
  • Switchable power: from LIN-bus
  • Max. distance : 100 m, depends on No of Patches
  • EMC compliant to CISPR 25, Class5

foLIN

In complex testing environments it is often needed that electrical signals have to be transmitted into the chamber or out of the chamber to the test equipment.

For that purpose we offer a variety of different interfaces that convert electrical signals into optical signals and back. Such the signal can be transmitted via fibre optics and is immune against electrical fields.

A sophisticated shielding and filtering concept ensures that the interfaces are highly immune against radiation and do not deliver out any significant emission.

In most cases both units are shielded.



Features

  • RF-Immunity: Antenna radiated 200 V/m, 200 MHz –18 GHz, ISO11452-2, CW, AM, PM Stripline 200 V/m, 10 – 1 GHz, ISO11452-5, CW, AM, PM
  • Emission: EMC compliant to CISPR25 Class 5, 150 k – 4 GHz
  • Battery (approx. 8 hours operation) or mains powered
  • Compact metal housing
  • No galvanic connection between test equipment and measurement instruments
  • Build in battery supply, foLIN can be self-sustaining foLIN can be also completely powered by DUT/LIN bus
  • Master/Slave termination switchable (1 kR and Diode in series)
  • Protocol transparent, bus errors are also transmitted

Accessories

  • Standard

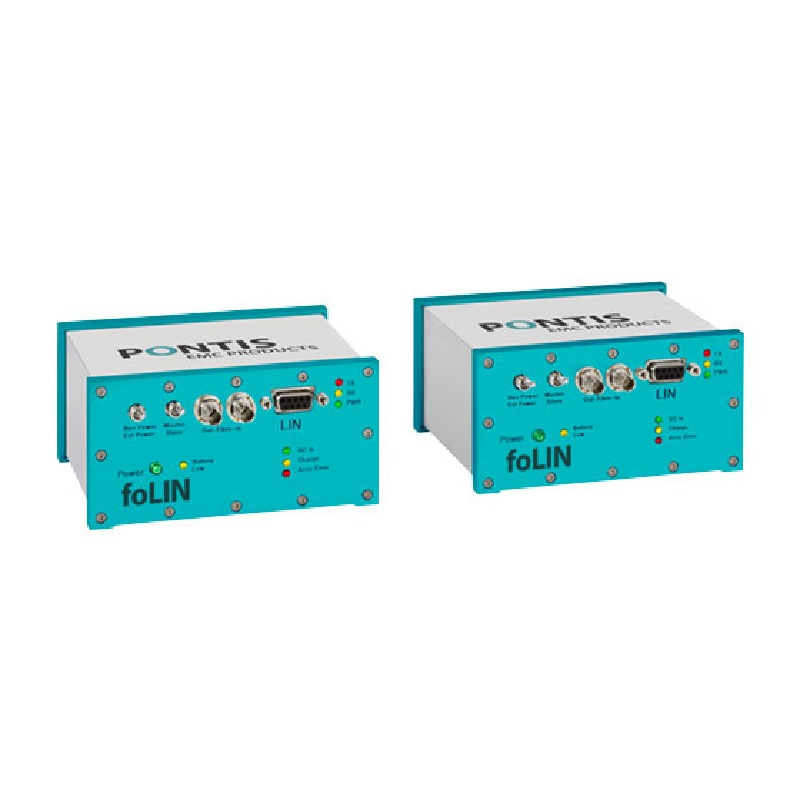

    • One set consists of two converter units
    • All converters are shipped with the appropriate power supply or battery and charger.
  • Optional
    • Fibre optic cables: variable lengths ST/FSMAconnector or ST/ST-connector
    • FO-Patches (Feed Through wall Patches)

Technical Specifications

Data Signaling Rate up to 20kBit/s
Data Transfer Direction bidirectional
Electrical Connection 9 pol female D-SUB
LIN Bus Operating Voltage continuous 8-27V, load dump 43V
Compatibility can operate with 24 V vehicles
Fibre Optic Connection FST
Fibre Optic Cables multimode duplex fibre, 50/125 µm maximum fibre length 100 m,
depends on No of FO patches between converters
Wavelength 850 nm
Charging Input 12V DC, 1A, mains power supply or recharchable battery
Operating Temperature 0 °C / +40 °C
Operating Humidity 20 to 85 % RH
Weight Per Converter 0.7 kg
Housing  passivated aluminium, grey-petrol
Dimensions Per Converter 105 x 125 x 65 mm (LxWxH)

Prices and specifications are subject to change without notice!
