RS232-422-485 to Ethernet / Serial
Part No.: MPADFW-RS232-422-485-to-Ethernet-Serial
This series of products allows to integrate a Ethernet network with a Serial RS232 / RS422 / RS485 net.
產品介紹
Ethernet / Serial - Converter
This series of products allows to integrate a Ethernet network with a Serial RS232 / RS422 / RS485 net.
The HD67038 is a RS232/RS485 / Ethernet Converter and it allows you to create a port RS232 or a RS485 through the Ethernet (RJ45) connection.
The HD67648 is a RS232/RS422/RS485 / Ethernet Converter and it allows you create one or two independents ports RS232 / RS485 / RS422 through the Ethernet (RJ45) connection.
Important in this type of product is the installation of 2 LAN ports (RJ45) that can extend an Ethernet line without using the switch.
See diagram:
The converters are available also in another version, ideal for STRONG applications.
The corresponding models are:
-

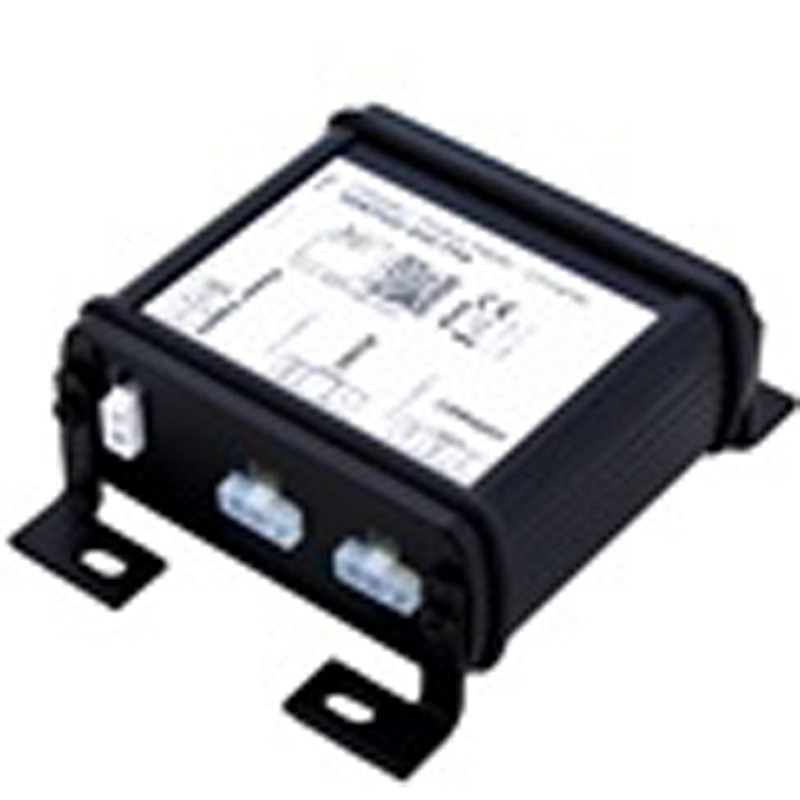

HD674-A020 - Serial / Ethernet, STRONG Converter
These converters are contained in a metal housing, so it is STRONG and RESISTANT to the vibrations and shocks. The electrical parts are with triple isolation of 4000 V between Serial/Ethernet - Serial/Power Supply - Ethernet/Power Supply.
Particularly suitable for the installation on cars, trains, boats, industrial sector and in fragile environments.
Two versions, one with Varnished PCB and one with Resined PCB.
Varnished treatment gives dust and humidity protection, Resined treatment gives high water, dust and vibrations protection.
Excellent range of temperature resistance from -40°C to +105°C, features required by AUTOMOTIVE applications.
Similar Products: Series Ethernet / Serial

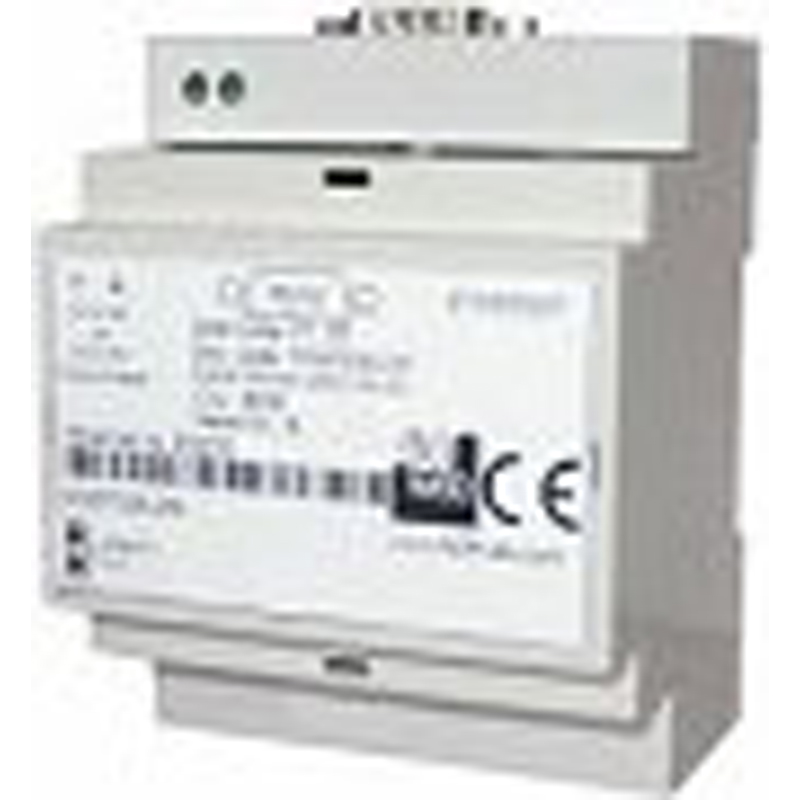

HD67648-A1-232
Ethernet / Serial - Converter ( Ethernet Switch inside for enter/exit connection, Serial Port: RS232 )
| Ports | 2xEthernet; 1xRS232 | |
|---|---|---|
| Data Rates RS232 | Up to 115200 bps | |
| RS232 connector | 3way 5mm terminal block | |
| Ethernet Connector | RJ45 | |
| Power Supply Connector | 2way 5mm terminal block | |
| Power Supply | 8..24V AC; 12..35V DC | |
| Operating Temperature | -40ºC/+85ºC (-40ºF/+185ºF) | |
| Dimensions | 120x23x107 (LxWxH) | |
| Weight | 200g approx | |
| Mechanical Fixing | DIN Rail montage | |
| SOFTWARE | SW67648 | |
HD67648-A1-485
Ethernet / Serial - Converter ( Ethernet Switch inside for enter/exit connection, Serial Port: RS485 )
| Ports | 2xEthernet; 1xRS485 | |
|---|---|---|
| Data Rates RS485 | Up to 115200 bps | |
| RS485 Connector | 3way 5mm terminal block | |
| Ethernet Connector | RJ45 | |
| Power Supply Connector | 2way 5mm terminal block | |
| Power Supply | 8..24V AC; 12..35V DC | |
| Operating Temperature | -40ºC/+85ºC (-40ºF/+185ºF) | |
| Dimensions | 120x23x107 (LxWxH) | |
| Weight | 200g approx | |
| Mechanical Fixing | DIN Rail montage | |
| SOFTWARE | SW67648 | |
HD67648-A1-422
Ethernet / Serial - Converter ( Ethernet Switch inside for enter/exit connection, Serial Port: RS422 )
| Ports | 2xEthernet; 1xRS422 | |
|---|---|---|
| Data Rates RS422 | Up to 115200 bps | |
| RS422 Connector | 5way 5mm terminal block | |
| Ethernet Connector | RJ45 | |
| Power Supply Connector | 2way 5mm terminal block | |
| Power Supply | 8..24V AC; 12..35V DC | |
| Operating Temperature | -40ºC/+85ºC (-40ºF/+185ºF) | |
| Dimensions | 120x23x107 (LxWxH) | |
| Weight | 200g approx | |
| Mechanical Fixing | DIN Rail montage | |
| SOFTWARE | SW67648 | |
HD67648-A1-232-485
Ethernet / Serial - Converter ( Ethernet Switch inside for enter/exit connection, Serial Port: RS232,RS485 )
| Ports | 2xEthernet; 1xRS232, 1xRS485 | |
|---|---|---|
| Data Rates RS232 | Up to 115200 bps | |
| RS232 Connector | 3way 5mm terminal block | |
| Data Rates RS485 | Up to 115200 bps | |
| RS485 Connector | 3way 5mm terminal block | |
| Ethernet Connector | RJ45 | |
| Power Supply Connector | 2way 5mm terminal block | |
| Power Supply | 8..24V AC; 12..35V DC | |
| Operating Temperature | -40ºC/+85ºC (-40ºF/+185ºF) | |
| Dimensions | 120x23x107 (LxWxH) | |
| Weight | 200g approx | |
| Mechanical Fixing | DIN Rail montage | |
| SOFTWARE | SW67648 | |
HD67648-A1-232-422
Ethernet / Serial - Converter ( Ethernet Switch inside for enter/exit connection, Serial Port: RS232,RS422 )
| Ports | 2xEthernet; 1xRS322, 1xRS422 | |
|---|---|---|
| Data Rates RS232 | Up to 115200 bps | |
| RS232 Connector | 3way 5mm terminal block | |
| Data Rates RS422 | Up to 115200 bps | |
| RS422 Connector | 5way 5mm terminal block | |
| Ethernet Connector | RJ45 | |
| Power Supply Connector | 2way 5mm terminal block | |
| Power Supply | 8..24V AC; 12..35V DC | |
| Operating Temperature | -40ºC/+85ºC (-40ºF/+185ºF) | |
| Dimensions | 120x23x107 (LxWxH) | |
| Weight | 200g approx | |
| Mechanical Fixing | DIN Rail montage | |
| SOFTWARE | SW67648 | |
Accessories
| Order Code | Description |
|---|---|
| AC34011 | Isolated Converter 100..240V AC to 12V DC stabilized - AC/DC |
| AC34012 | Isolated Converter 100..240V AC to 24V DC stabilized - AC/DC |
| AC67402 | Cable Super Seal 1.5 MALE 2-pole - 1.0 Meters |
| AC67402-3 | Cable Super Seal 1.5 MALE 2-pole - 3.0 Meters |
| AC67403 | Cable Super Seal 1.5 MALE 3-pole - 1.0 Meters |
| AC67403-3 | Cable Super Seal 1.5 MALE 3-pole - 3.0 Meters |
| AC67404 | Cable Super Seal 1.5 MALE 4-pole - 1.0 Meters |
| AC67404-3 | Cable Super Seal 1.5 MALE 4-pole - 3.0 Meters |
| AC67410 | Accessory Automotive Devices - Support for rail DIN |
| AC34107 | Null Modem Cable, Fem/Fem, DSub 9 Pin, 1.8 m |
| AC34114 | Null Modem Cable, Fem/Fem, DSub 9 Pin, 5 m |
Benefits
- RS232/485 Selection
- Support Modbus RTU
- Support Modbus TCP
- Software for easy configurator
- Designed for serius use
- Very easy to configure
- Low cost
- Rail din mountable
- Wide supply input range
- Galvanic isolation
- Industrial temperature range: -30° / 70° (-22°F / 158°F)
