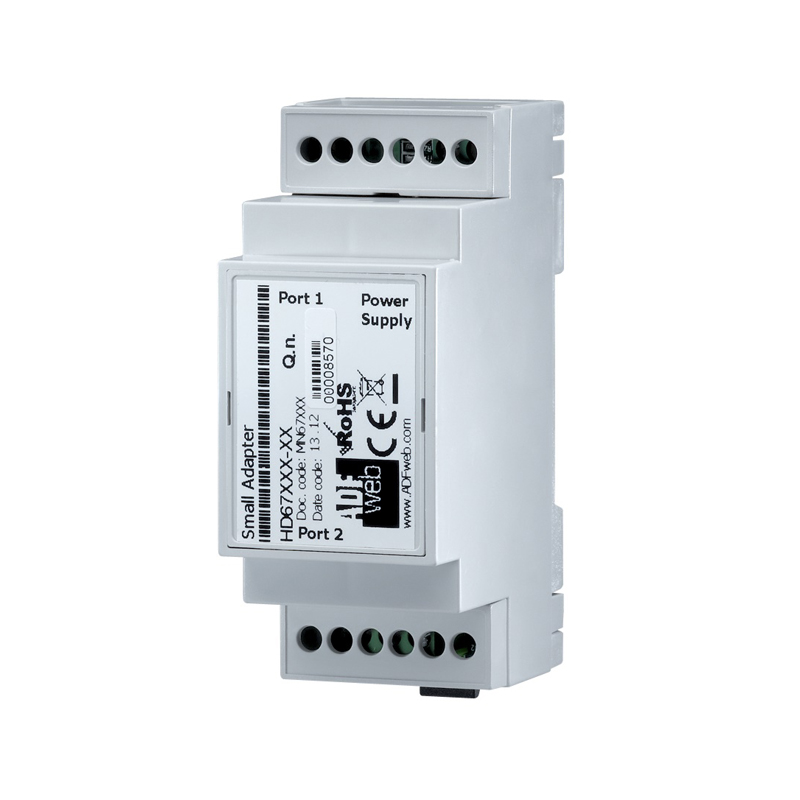

BACnet to MQTT
Part No.: MPADFW-BACnet-to-MQTT
This series of products allows you to integrate a BACnet network with the IoT world based on MQTT net.
產品介紹
IoT Gateway
BACnet / MQTT - Converter
This series of products allows you to integrate a BACnet network with the IoT world based on MQTT net.
The HD67937-B2 are BACnet Master / MQTT Converters.
They allow to publish and get the data into/from a MQTT Server from/to BACnet Slaves.

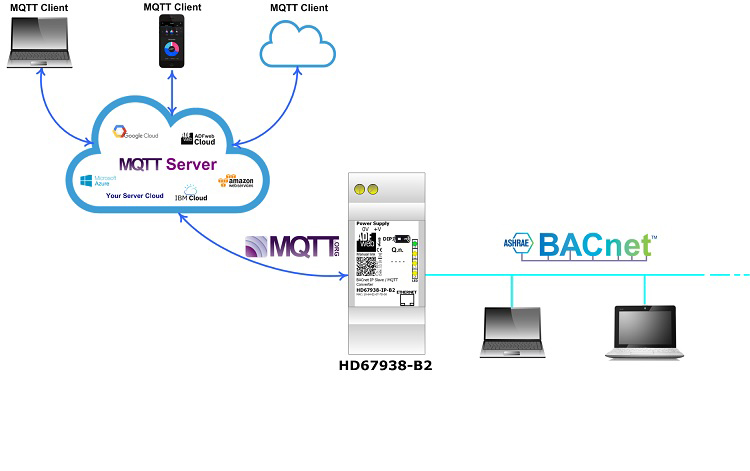

The HD67938-B2 are BACnet Slave / MQTT Converters.
They allow to publish and get the data into/from a MQTT Server using a BACnet Master (like PLC, Supervisory System etc.).
These gateways allow a fast and easy access to IoT world and they are compatible with IoT Servers ( Microsoft Azure, Amazon AWS, IBM Cloud, Google Cloud... etc and customized Servers) that support MQTT protocol.
The MQTT communication can be encrypted using TLS / SSL protocols, ensuring a SECURE and SAFETY communication.
HD67937-IP, HD7938-IP support BACnet/IP.
The connection to BACnet is done over Ethernet.
HD67937-MSTP, HD67938-MSTP support BACnet MSTP.
The connection to BACnet is done over RS485.
Series BACnet Master / MQTT
HD67937-IP-B2
BACnet IP Master / MQTT - Converter ( Housing type: B, Terminal Blocks Connectors )
| Ports | 1xEthernet | |
|---|---|---|
| EtherNet Protocol | MQTT | |
| BACnet Protocol | BACNet IP Master | |
| Data Rates BACnet | 10/100 Base-T autosensing | |
| Data Rates MQTT | 10/100 Base-T Autosensing | |
| BACnet IP Connector | RJ45 | |
| MQTT Connector | RJ45 | |
| Power Supply | 8..24V AC; 12..35V DC | |
| Power Supply Connector | 2way 5mm terminal block | |
| Operating Temperature | -40° to +85° (-40°F to +185°F) | |
| Dimensions | 36x60x95 (DxWxH) | |
| Weight | 200g approx | |
| Mechanical Fixing | 35mm DIN Rail montage | |
| Software | SW67937 | |
HD67937-MSTP-B2
BACnet MSTP Master / MQTT - Converter ( Housing type: B, Terminal Blocks Connectors )
| Ports | 1xSerial; 1xEthernet | |
|---|---|---|
| EtherNet Protocol | MQTT | |
| BACnet Protocol | BACnet MSTP Master (RS485) | |
| Data Rates BACnet | Up to 115200 bps | |
| Data Rates MQTT | 10/100 Base-T Autosensing | |
| BACnet MSTP Connector | 3way 5mm terminal block | |
| MQTT Connector | RJ45 | |
| Power Supply | 8..24V AC; 12..35V DC | |
| Power Supply Connector | 2way 5mm terminal block | |
| Operating Temperature | -40° to +85° (-40°F to +185°F) | |
| Dimensions | 36x60x95 (DxWxH) | |
| Weight | 200g approx | |
| Mechanical Fixing | 35mm DIN Rail montage | |
| Software | SW67937 | |
Series BACnet Slave / MQTT
HD67938-IP-B2
BACnet IP Slave / MQTT - Converter ( Housing type: B, Terminal Blocks Connectors )
| Ports | 1xEthernet | |
|---|---|---|
| EtherNet Protocol | MQTT | |
| BACnet Protocol | BACNet IP Salve | |
| Data Rates BACnet | 10/100 Base-T autosensing | |
| Data Rates MQTT | 10/100 Base-T Autosensing | |
| BACnet IP Connector | RJ45 | |
| MQTT Connector | RJ45 | |
| Power Supply | 8..24V AC; 12..35V DC | |
| Power Supply Connector | 2way 5mm terminal block | |
| Operating Temperature | -40° to +85° (-40°F to +185°F) | |
| Dimensions | 36x60x95 (DxWxH) | |
| Weight | 200g approx | |
| Mechanical Fixing | 35mm DIN Rail montage | |
| Software | SW67938 | |
HD67938-MSTP-B2
BACnet MSTP Slave / MQTT - Converter ( Housing type: B, Terminal Blocks Connectors )
| Ports | 1xSerial; 1xEthernet | |
|---|---|---|
| EtherNet Protocol | MQTT | |
| BACnet Protocol | BACnet MSTP Slave (RS485) | |
| Data Rates BACnet | Up to 115200 bps | |
| Data Rates MQTT | 10/100 Base-T Autosensing | |
| BACnet MSTP Connector | 3way 5mm terminal block | |
| MQTT Connector | RJ45 | |
| Power Supply | 8..24V AC; 12..35V DC | |
| Power Supply Connector | 2way 5mm terminal block | |
| Operating Temperature | -40° to +85° (-40°F to +185°F) | |
| Dimensions | 36x60x95 (DxWxH) | |
| Weight | 200g approx | |
| Mechanical Fixing | 35mm DIN Rail montage | |
| Software | SW67938 | |
Accessories
| Order Code | Description |
|---|---|
| AC34011 | Isolated Converter 100..240V AC to 12V DC stabilized - AC/DC |
| AC34012 | Isolated Converter 100..240V AC to 24V DC stabilized - AC/DC |
| AC34131 | Patch Cross Cable Cat6 2 Meters |
