DeviceNet REPEATER/ISOLATOR

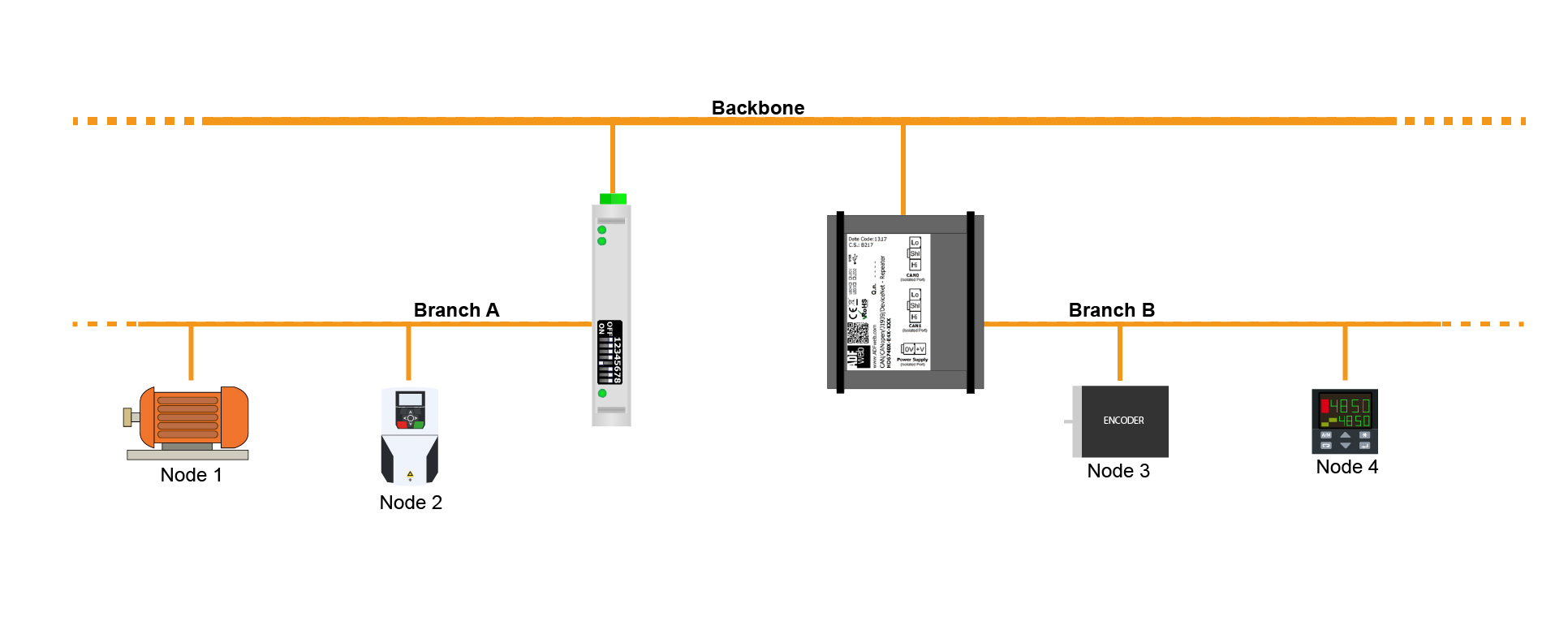

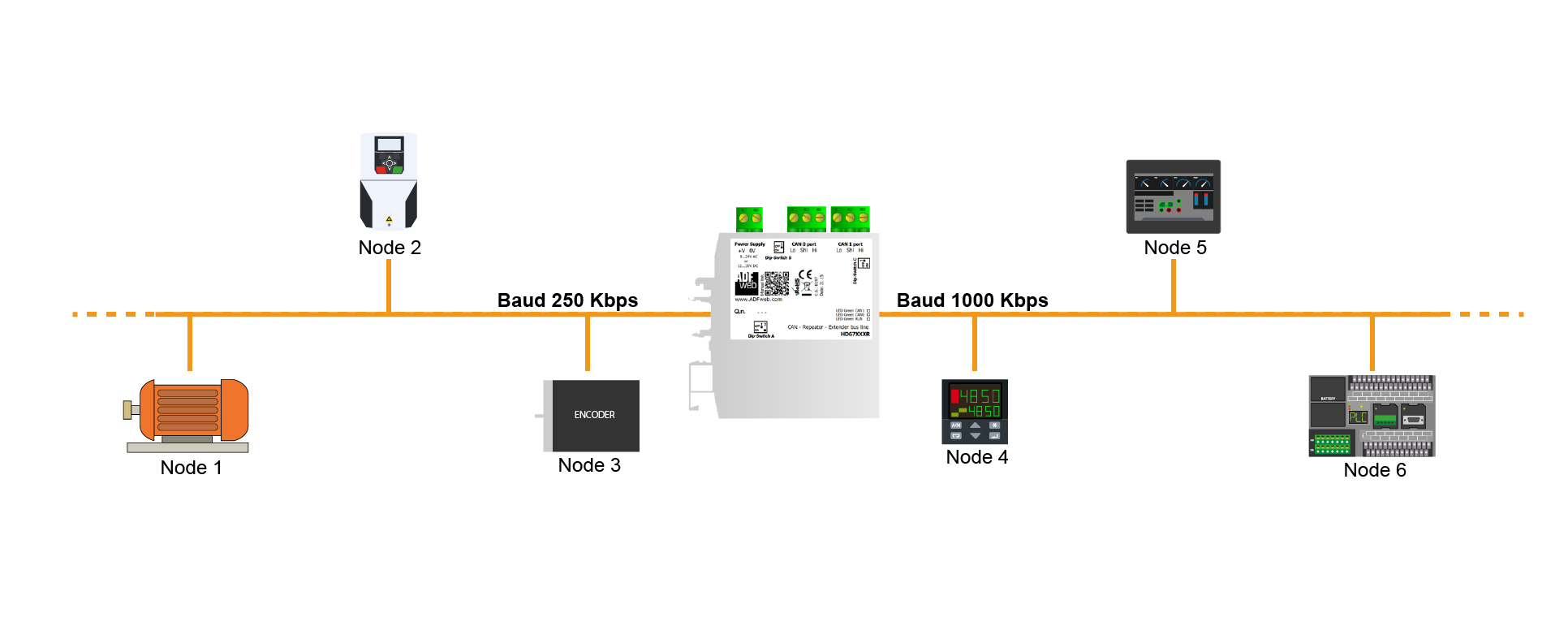

The ranges includes various products for solving all the needs of a DeviceNet line like extension of the line, increase of nodes number, isolation of DeviceNet branches, protection from spikes noise and electrostatic charger or simply to change the communication baudrate.

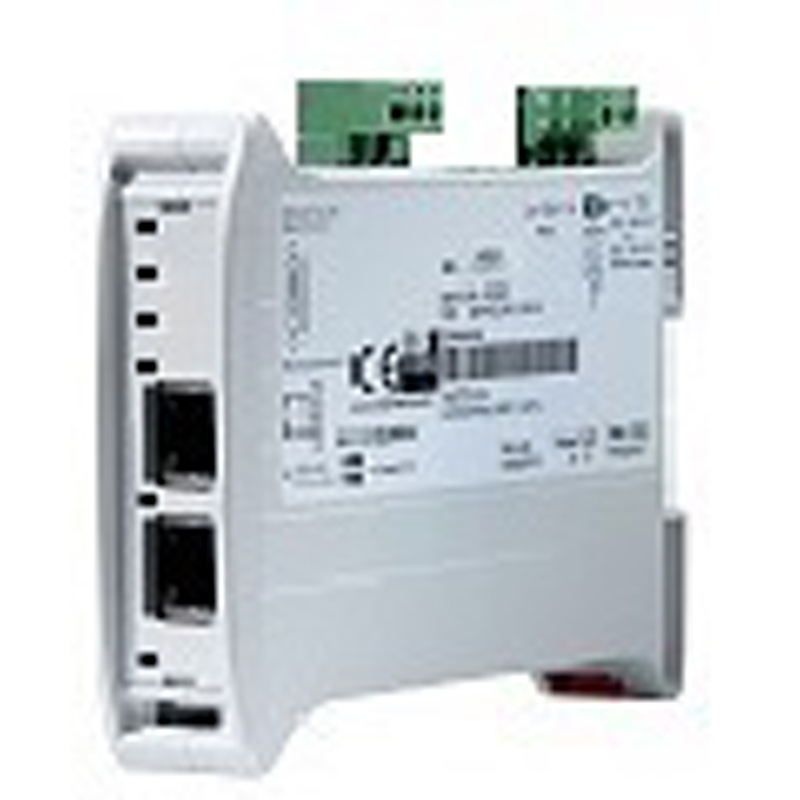

The HD67180 and HD67180M devices are repeaters/isolators for DeviceNet buses.

The HD67180R, HD67180-A3 and HD67180-A4 devices are repeaters/isolators with a 3kV isolation between the two DeviceNet bus.

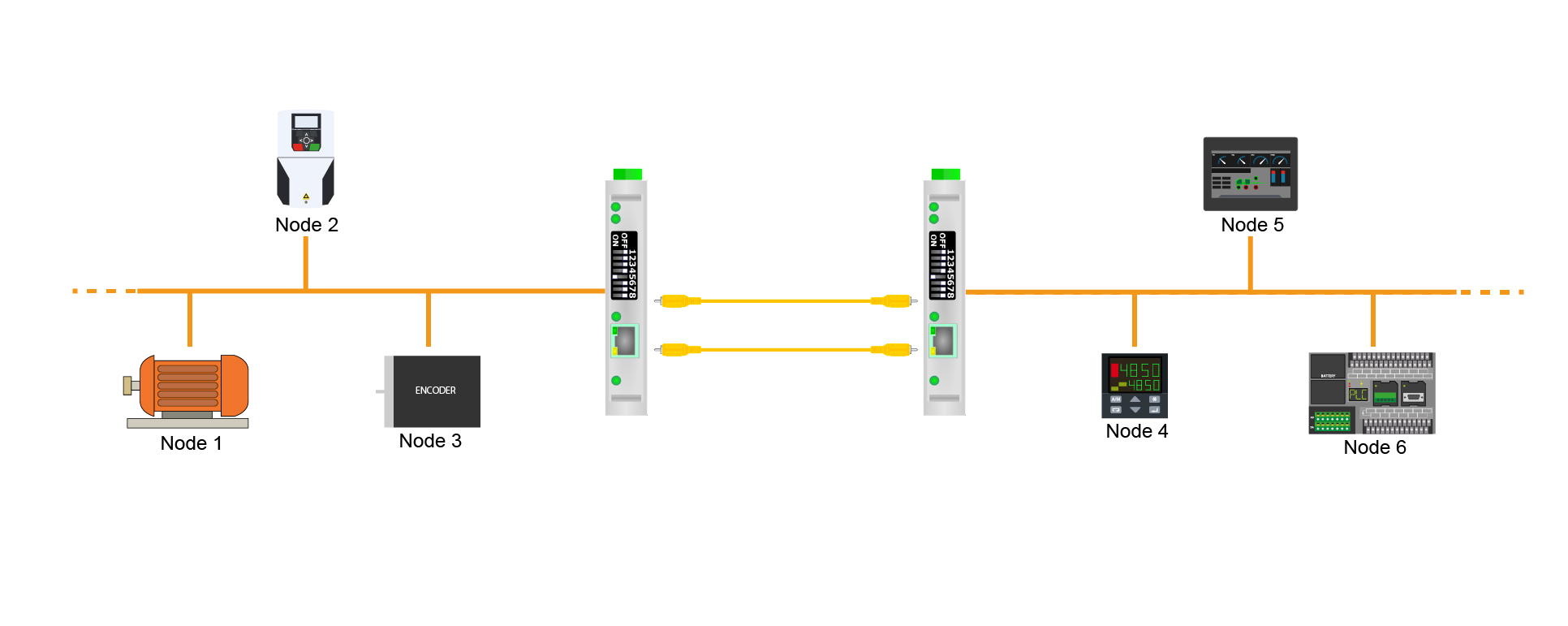

The HD67180F and the HD67180FSX are generic DeviceNet repeaters that allows to extend a DeviceNet network through Multi-Modal optic fiber.

The converters are available also in another version, ideal for STRONG applications.

The corresponding models are:

• HD67403 – DeviceNet Repeater, STRONG

These converters are contained in a metal housing, so it is STRONG and RESISTANT to the vibrations and shocks. The electrical parts are with triple isolation of 4000 V between DeviceNet/DeviceNet - DeviceNet/Power Supply - DeviceNet/Power Supply.
Particularly suitable for the installation on cars, trains, boats, industrial sector and in fragile environments.
Two versions, one with Varnished PCB and one with Resined PCB.
Varnished treatment gives dust and humidity protection, Resined treatment gives high water, dust and vibrations protection.
Excellent range of temperature resistance from -40°C to +105°C, features required by AUTOMOTIVE applications.





Series DeviceNet Repeater

HD67180

DeviceNet - Repeater - Extender bus line ( Housing type: A, Terminal Blocks Connectors )

HD67180R

DeviceNet - Repeater - Extender bus line ( Housing type: R, Terminal Blocks Connectors, Galvanic Isolation: 3KV )

HD67180M

DeviceNet - Repeater - Extender bus line ( Housing type: Small Size, Terminal Blocks Connetors )

HD67180-A3

DeviceNet - Repeater - Extender bus line ( Housing type: A, M12 Connectors, Galvanic Isolation: 3KV )

HD67180-A4

DeviceNet - Repeater - Extender bus line ( Housing type: A, Mni-Fit Connectors, Galvanic Isolation: 3KV )

DeviceNet - Repeater - Extender bus line

Products supplied with metal housing (Housing type: E), are STRONG and RESISTANT to mechanical stress (such as vibration and shock), electrical parts with a triple isolation 4 kV between CAN0/CAN1 - CAN0/Power Supply - CAN1/Power Supply.

Particularly suitable for installation in cars, trucks, trains, boats, in the industrial sector and in fragile environments. .

Two versions, one with a coating of the PCB (suffix code V) that ensures IP65 and another encapsulation with resin (suffix code R) which gives to device the high performance safety and insulation for wet environments (IP67) and to resist to noise. .

This product can be mounted on any type of surface (horizontal, vertical and oblique) with four fixing lugs, also you can choose the type of connector, Mini-Fit or Superseal 1.5. .

Excellent range of temperature resistance from -40 ° C to +105 ° C, features required by AUTOMOTIVE.

HD67403-E4V

DeviceNet - Repeater - Extender bus line afont class="desc">( Housing type: E, Mini-Fit Connectors, Triple Galvanic Isolation: 4KV, PCB Treatment: Varnished )

HD67403-E4R

DeviceNet - Repeater - Extender bus line afont class="desc">( Housing type: E, Mini-Fit Connectors, Triple Galvanic Isolation: 4KV, PCB Treatment: Resined )

HD67403-E7V

DeviceNet - Repeater - Extender bus line ( Housing type: E, SuperSeal 1.5 Connectors, Triple Galvanic Isolation: 4KV, PCB Treatment: Varnished )

HD67403-E7R

DeviceNet - Repeater - Extender bus line ( Housing type: E, SuperSeal 1.5 Connectors, Triple Galvanic Isolation: 4KV, PCB Treatment: Resined )

Series DeviceNet Repeater Optic fibres

HD67180F

DeviceNet / Optic Fiber - Repeater - Extender bus line




HD67181FS

CAN / Optic Fiber - Repeater - Extender bus line ( High Performance )
