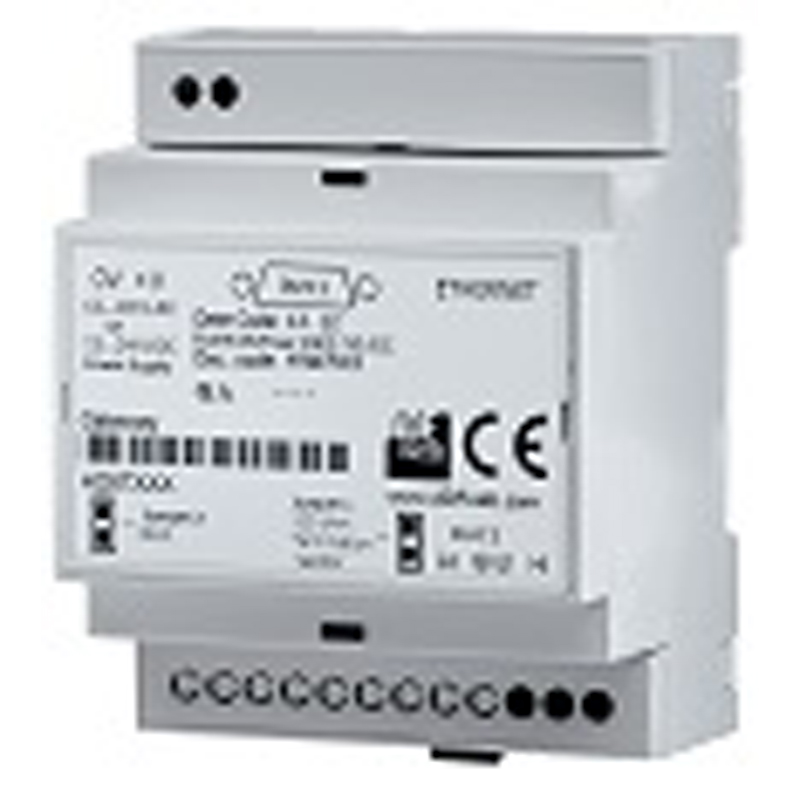

EnOcean to BACnet
Part No.: MPADFW-EnOcean-to-BACnet
This series of products allows to integrate some EnOcean devices into a BACnet network.
產品介紹
EnOcean / BACnet - Converter
This series of products allows to integrate some EnOcean devices into a BACnet network.

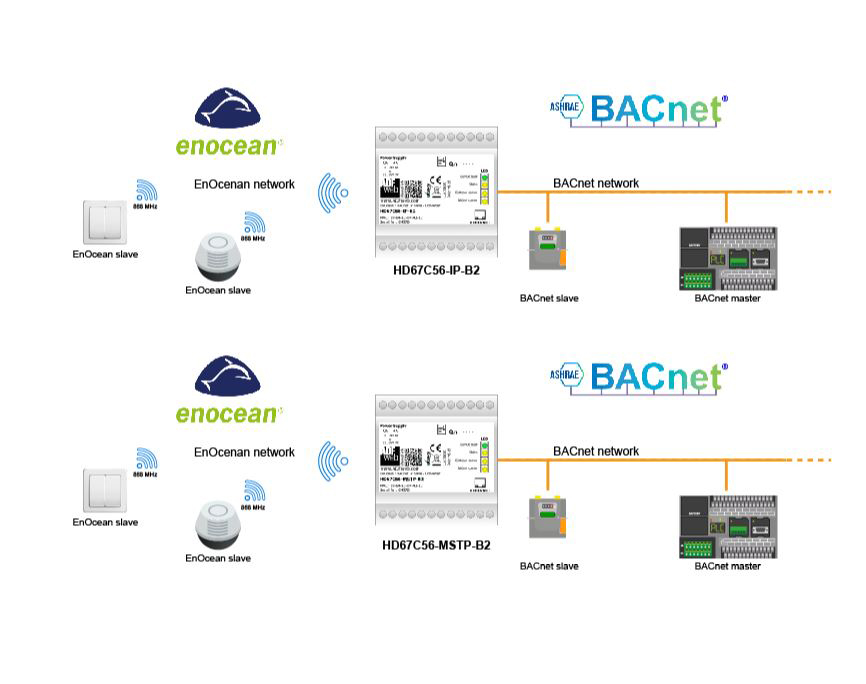

The HD67C56 is an EnOcean / BACnet Slave Converter so you can connect an EnOcean network with a BACnet Master in order to exchange informations between the BACnet Master (for example a Supervisory System, PLC, etc..) and the EnOcean network.
HD67C56-IP-B2 supports the connection on the BACnet side over Ethernet.
HD67C56-MSTP-B2 supports the connection on the BACnet side over RS485.
EnOcean / BACnet Slave Converters
HD67C56-IP-B2
EnOcean / BACnet IP Slave - Converter ( Housing type: B, Terminal Blocks Connectors )
| Ports | 1xEthernet | |
|---|---|---|
| BACnet Protocol | BACnet IP Slave | |
| Ethernet Protocol | EnOcean | |
| Data Rates BACnet | 10/100 Base-T Autosensing | |
| Data Rates EnOcean | 10/100 Base-T Autosensing | |
| BACnet Connector | RJ45 | |
| EnOcean Connector | RJ45 | |
| Power Supply | 8..24V AC; 12..35V DC | |
| Power Supply Connector | 2way 5mm terminal block | |
| Operating Temperature | -40° to +85° (-40°F to +185°F) | |
| Dimensions | 70x60x95 (DxWxH) | |
| Weight | 200g approx | |
| Mechanical Fixing | 35mm DIN Rail montage | |
| Software | SW67C56 | |
HD67C56-MSTP-B2
EnOcean /BACnet MSTP Slave - Converter ( Housing type: B, Terminal Blocks Connectors )
| Ports | 1xEthernet | |
|---|---|---|
| BACnet Protocol | BACnet MSTP Slave | |
| Ethernet Protocol | EnOcean | |
| Data Rates BACnet | 10/100 Base-T Autosensing | |
| Data Rates EnOcean | 10/100 Base-T Autosensing | |
| BACnet Connector | RJ45 | |
| EnOcean Connector | RJ45 | |
| Power Supply | 8..24V AC; 12..35V DC | |
| Power Supply Connector | 2way 5mm terminal block | |
| Operating Temperature | -40° to +85° (-40°F to +185°F) | |
| Dimensions | 70x60x95 (DxWxH) | |
| Weight | 200g approx | |
| Mechanical Fixing | 35mm DIN Rail montage | |
| Software | SW67C56 | |
Accessories
| Order Code | Description |
|---|---|
| AC34011 | Isolated Converter 100..240V AC to 12V DC stabilized - AC/DC |
| AC34012 | Isolated Converter 100..240V AC to 24V DC stabilized - AC/DC |
| AC34131 | Patch Cross Cable Cat6 2 Meters |
