EnOcean to CAN
Part No.: MPADFW-EnOcean-to-CAN

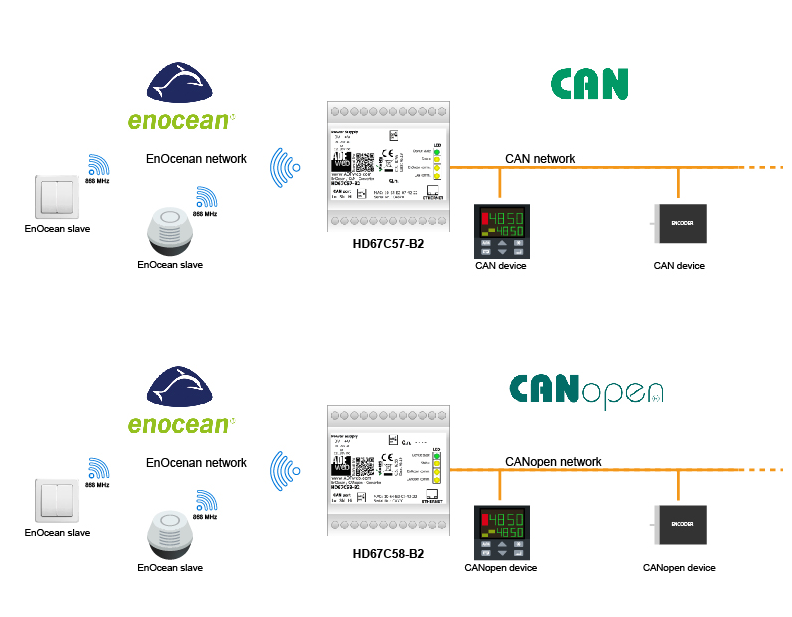

This series of products allows to integrate an EnOcean network with a CAN network.
產品介紹
EnOcean / CAN - Converter
This series of products allows to integrate an EnOcean network with a CAN network.

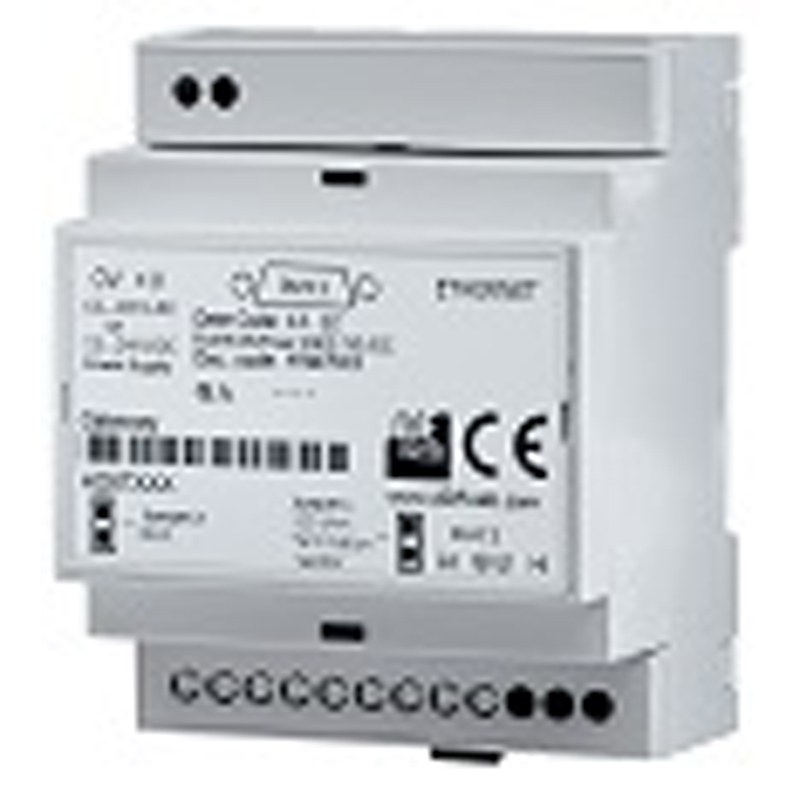

The HD67C57 is an EnOcean / CAN Converter and it allows you to read/write the data from one or more EnOcean devices using CAN devices (like PC etc).
EnOcean / CAN Converters
HD67C57-B2
EnOcean / CAN - Converter ( Housing type: B, Terminal Blocks Connectors )
| Ports | 1xEthernet;1xCAN | |
|---|---|---|
| CAN Protocol | CAN 2.0A CAN2.0B | |
| Ethernet Protocol | EnOcean | |
| Data Rates CAN | Up to 1Mbps | |
| Data Rates EnOcean | 10/100 Base-T Autosensing | |
| CAN Connector | 3way 5mm terminal block | |
| EnOcean Connector | RJ45 | |
| Power Supply | 8..24V AC; 12..35V DC | |
| Power Supply Connector | 2way 5mm terminal block | |
| Operating Temperature | -40° to +85° (-40°F to +185°F) | |
| Dimensions | 70x60x95 (DxWxH) | |
| Weight | 200g approx | |
| Mechanical Fixing | 35mm DIN Rail montage | |
| Software | SW67C57 | |
EnOcean / CANOpen Converters
HD67C58-B2
EnOcean / CANopen - Converter ( Housing type: B, Terminal Blocks Connectors )
| Ports | 1xEthernet;1xCAN | |
|---|---|---|
| CAN Protocol | CANopen | |
| Ethernet Protocol | EnOcean | |
| Data Rates CAN | Up to 1Mbps | |
| Data Rates EnOcean | 10/100 Base-T Autosensing | |
| CAN Connector | 3way 5mm terminal block | |
| EnOcean Connector | RJ45 | |
| Power Supply | 8..24V AC; 12..35V DC | |
| Power Supply Connector | 2way 5mm terminal block | |
| Operating Temperature | -40° to +85° (-40°F to +185°F) | |
| Dimensions | 70x60x95 (DxWxH) | |
| Weight | 200g approx | |
| Mechanical Fixing | 35mm DIN Rail montage | |
| Software | SW67C58 | |
Accessories
| Order Code | Description |
|---|---|
| AC34011 | Isolated Converter 100..240V AC to 12V DC stabilized - AC/DC |
| AC34012 | Isolated Converter 100..240V AC to 24V DC stabilized - AC/DC |
| AC34131 | Patch Cross Cable Cat6 2 Meters |
