EnOcean to DeviceNet
Part No.: MPADFW-EnOcean-to-DeviceNet
This series of products allows to integrate some EnOcean devices into a DeviceNet network.
產品介紹
EnOcean / DeviceNet - Converter
This series of products allows to integrate some EnOcean devices into a DeviceNet network.

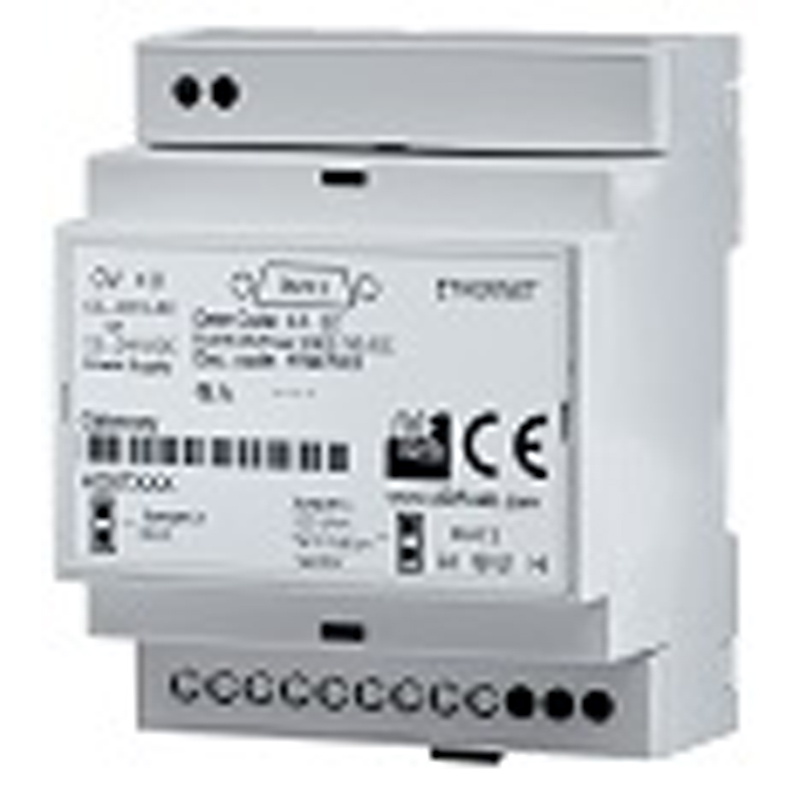

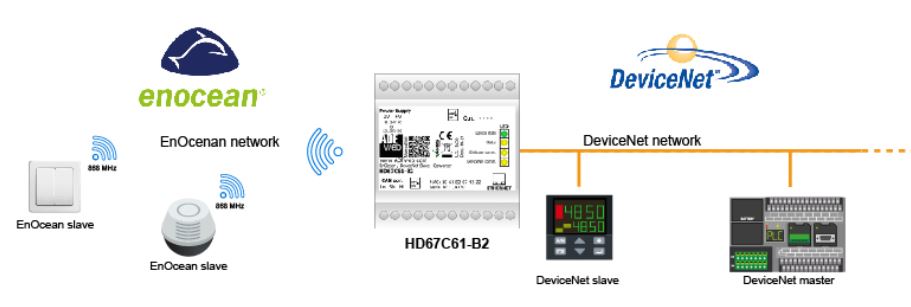

The HD67C61 is an EnOcean / DeviceNet Slave Converter so you can connect an EnOCean network with a DeviceNet Master in order to exchange informations between the DeviceNet Master (for example a Supervisory System, PLC, etc..) and the EnOcean network.
EnOcean / DeviceNet Converters
HD67C61-B2
EnOcean / DeviceNet Slave - Converter ( Housing type: B, Terminal Blocks Connectors )
| Ports | 1xEthernet;1xCAN | |
|---|---|---|
| DeviceNet Protocol | DeviceNet Slave | |
| Ethernet Protocol | EnOcean | |
| Data Rates DeviceNet | Up to 1Mbps | |
| Data Rates EnOcean | 10/100 Base-T Autosensing | |
| DeviceNet Connector | 3way 5mm terminal block | |
| EnOcean Connector | RJ45 | |
| Power Supply | 8..24V AC; 12..35V DC | |
| Power Supply Connector | 2way 5mm terminal block | |
| Operating Temperature | -40° to +85° (-40°F to +185°F) | |
| Dimensions | 70x60x95 (DxWxH) | |
| Weight | 200g approx | |
| Mechanical Fixing | 35mm DIN Rail montage | |
| Software | SW67C61 | |
Accessories
| Order Code | Description |
|---|---|
| AC34011 | Isolated Converter 100..240V AC to 12V DC stabilized - AC/DC |
| AC34012 | Isolated Converter 100..240V AC to 24V DC stabilized - AC/DC |
| AC34131 | Patch Cross Cable Cat6 2 Meters |
