EnOcean to KNX
Part No.: MPADFW-EnOcean-to-KNX
This series of products allows to integrate some EnOcean devices into a KNX network.
產品介紹
EnOcean / KNX - Converter
This series of products allows to integrate some EnOcean devices into a KNX network.

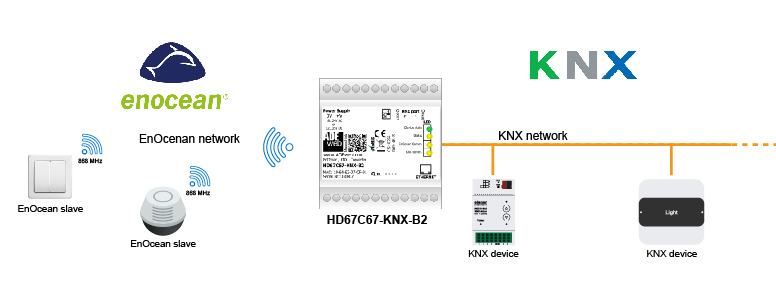

The HD67C67 is an EnOcean / KNX Converter and it allows you to read/write the data from one or more EnOcean devices (like light switches, actuators etc) using the KNX notwork.
These converters are very easy to configure and allows you to interface a n EnOcean system with the KNX world.
On KNX side you can connect all the common KNX devices such as temperature sensors, shutters, light switches, actuators, alarms etc.

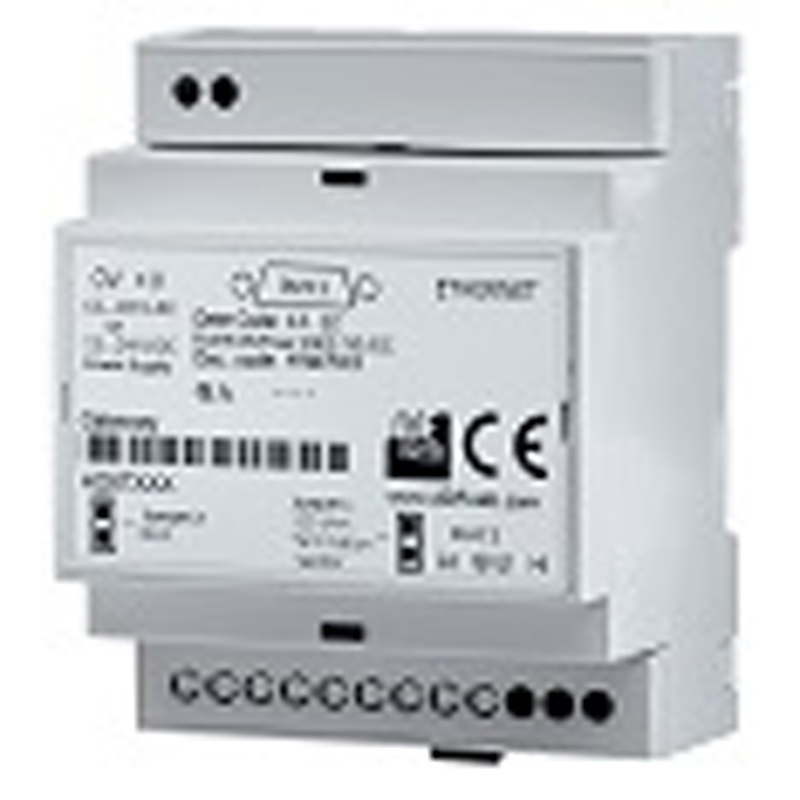

HD67C67-KNX-B2
EnOcean / KNX - Converter ( Housing type: B, Terminal Blocks Connectors )
| Ports | 1xEthernet;1xKNX | |
|---|---|---|
| KNX Protocol | KNX TP | |
| Ethernet Protocol | EnOcean | |
| Data Rates KNX | 9600 bps | |
| Data Rates EnOcean | 10/100 Base-T Autosensing | |
| KNX Connector | KNX Bus Connector | |
| EnOcean Connector | RJ45 | |
| Power Supply | 8..24V AC; 12..35V DC | |
| Power Supply Connector | 2way 5mm terminal block | |
| Operating Temperature | -40° to +85° (-40°F to +185°F) | |
| Dimensions | 70x60x95 (DxWxH) | |
| Weight | 200g approx | |
| Mechanical Fixing | 35mm DIN Rail montage | |
| Software | SW67C67 | |
Accessories
| Order Code | Description |
|---|---|
| AC34011 | Isolated Converter 100..240V AC to 12V DC stabilized - AC/DC |
| AC34012 | Isolated Converter 100..240V AC to 24V DC stabilized - AC/DC |
| AC34131 | Patch Cross Cable Cat6 2 Meters |
