EnOcean to PROFINET
Part No.: MPADFW-EnOcean-to-PROFINET
This series of products allows to integrate some EnOcean devices into an PROFINET network.
產品介紹
EnOcean / PROFINET - Converter
This series of products allows to integrate some EnOcean devices into an PROFINET network.

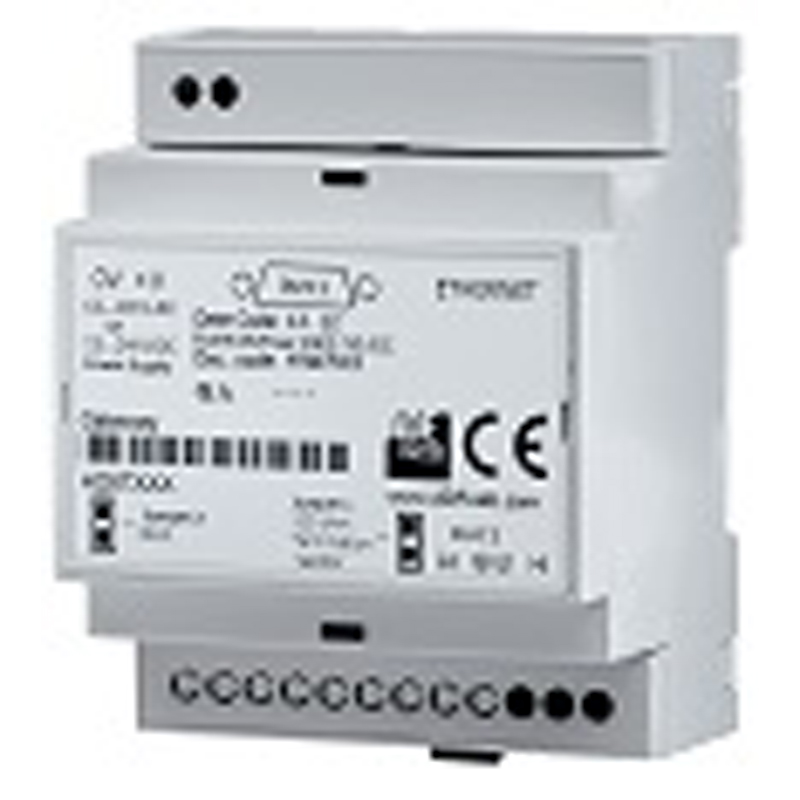

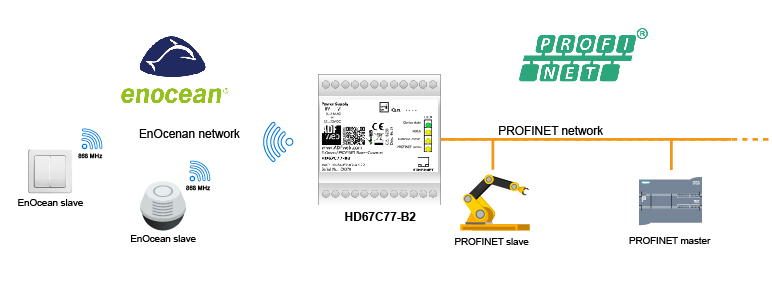

The HD67C77 is an EnOcean / PROFINET Slave Converter so you can connect an EnOCean network with a PROFINET Master in order to exchange informations between the PROFINET Master (for example a SIEMENS PLC, etc..) and the EnOcean network.
EnOcean / PROFINET Slave Converters
HD67C77-B2
EnOcean / PROFINET slave - Converter ( Housing type: B, Terminal Blocks Connectors )
| Ports | 1xEthernet | |
|---|---|---|
| Ethernet Protocol | PROFINET slave | |
| Ethernet Protocol | EnOcean | |
| Data Rates PROFINET | 10/100 Base-T Autosensing | |
| Data Rates EnOcean | 10/100 Base-T Autosensing | |
| PROFINET Connector | RJ45 | |
| EnOcean Connector | RJ45 | |
| Power Supply | 8..24V AC; 12..35V DC | |
| Power Supply Connector | 2way 5mm terminal block | |
| Operating Temperature | -40° to +85° (-40°F to +185°F) | |
| Dimensions | 70x60x95 (DxWxH) | |
| Weight | 200g approx | |
| Mechanical Fixing | 35mm DIN Rail montage | |
| Software | SW67C77 | |
Accessories
| Order Code | Description |
|---|---|
| AC34011 | Isolated Converter 100..240V AC to 12V DC stabilized - AC/DC |
| AC34012 | Isolated Converter 100..240V AC to 24V DC stabilized - AC/DC |
| AC34131 | Patch Cross Cable Cat6 2 Meters |
