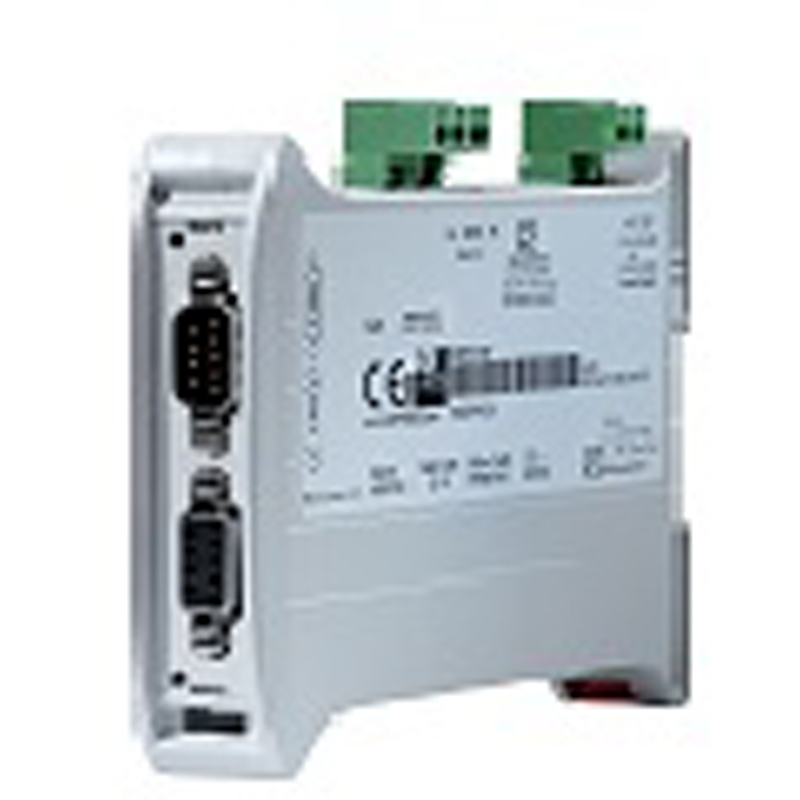

EthernetIP to PROFINET
Part No.: MPADFW-EthernetIP-to-PROFINET
This series of products allows to integrate a PROFINET network with an EtherNet/IP net.
產品介紹
PROFINET / EtherNetIP - Converter
This series of products allows to integrate a PROFINET network with an EtherNet/IP net.
The HD67B78 is a PROFINET Master / EtherNet/IP Converter and it allows you to connect a PROFINET net with an EtherNet/IP net Master (for example an Allen-Bradley PLC...) in order to exchange the informations between the networks.
The HD67661 is a PROFINET / EtherNet/IP Master Converter and it allows you to connect a PROFINET net (for example a SIEMENS PLC...) with some EtherNet/IP devices (for example Encoder, I/O...) in order to exchange the informations between the networks.
In all devices are installed 2 LAN ports with RJ45 connectors that allow you to not use an external switch.

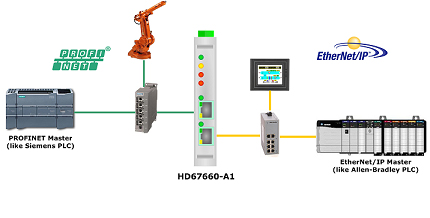

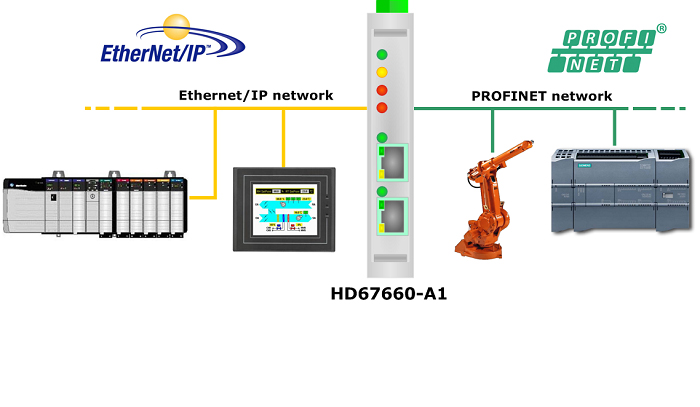

HD67660-A1
PROFINET / Ethernet/IP - Converter ( Housing type: A, Terminal Blocks Connectors )
| Ports | 2xEthernet | |
|---|---|---|
| Ethernet Protocol (1) | EtherNet/IP Slave | |
| Ethernet Protocol (2) | PROFINET | |
| Data Rates Ethernet/IP | 10/100 Base-T Autosensing | |
| Data Rates PROFINET | 10/100 Base-T Autosensing | |
| Ethernet/IP Connector | RJ45 | |
| PROFINET Connector | RJ45 | |
| Power Supply | 8..24V AC; 12..35V DC | |
| Power Supply Connector | 2way 5mm terminal block | |
| Operating Temperature | -40° to +85° (-40°F to +185°F) | |
| Dimensions | 120x23x107 (DxWxH) | |
| Weight | 200g approx | |
| Mechanical Fixing | 35mm DIN Rail montage | |
| Software | SW67660 | |
HD67B78-A1
PROFINET Master / Ethernet/IP - Converter ( Housing type: A, Terminal Blocks Connectors )
| Ports | 2xEthernet | |
|---|---|---|
| Ethernet Protocol (1) | EtherNet/IP Slave | |
| Ethernet Protocol (2) | PROFINET Master | |
| Data Rates Ethernet/IP | 10/100 Base-T Autosensing | |
| Data Rates PROFINET | 10/100 Base-T Autosensing | |
| Ethernet/IP Connector | RJ45 | |
| PROFINET Connector | RJ45 | |
| Power Supply | 8..24V AC; 12..35V DC | |
| Power Supply Connector | 2way 5mm terminal block | |
| Operating Temperature | -40° to +85° (-40°F to +185°F) | |
| Dimensions | 120x23x107 (DxWxH) | |
| Weight | 200g approx | |
| Mechanical Fixing | 35mm DIN Rail montage | |
| Software | SW67B78 | |
HD67661-A1
PROFINET / Ethernet/IP Master - Converter ( Housing type: A, Terminal Blocks Connectors )
| Ports | 2xEthernet | |
|---|---|---|
| Ethernet Protocol (1) | EtherNet/IP Master | |
| Ethernet Protocol (2) | PROFINET | |
| Data Rates Ethernet/IP | 10/100 Base-T Autosensing | |
| Data Rates PROFINET | 10/100 Base-T Autosensing | |
| Ethernet/IP Connector | RJ45 | |
| PROFINET Connector | RJ45 | |
| Power Supply | 8..24V AC; 12..35V DC | |
| Power Supply Connector | 2way 5mm terminal block | |
| Operating Temperature | -40° to +85° (-40°F to +185°F) | |
| Dimensions | 120x23x107 (DxWxH) | |
| Weight | 200g approx | |
| Mechanical Fixing | 35mm DIN Rail montage | |
| Software | SW67661 | |
Accessories
| Order Code | Description |
|---|---|
| AC34011 | Isolated Converter 100..240V AC to 12V DC stabilized - AC/DC |
| AC34012 | Isolated Converter 100..240V AC to 24V DC stabilized - AC/DC |
