OPC UA to NMEA2000
Part No.: MPADFW-OPC-UA-to-NMEA2000
This series of products allows to integrate an OPC UA network with a NMEA2000 network.
產品介紹
OPC UA / NMEA2000 - Converter
This series of products allows to integrate an OPC UA network with a NMEA2000 network.

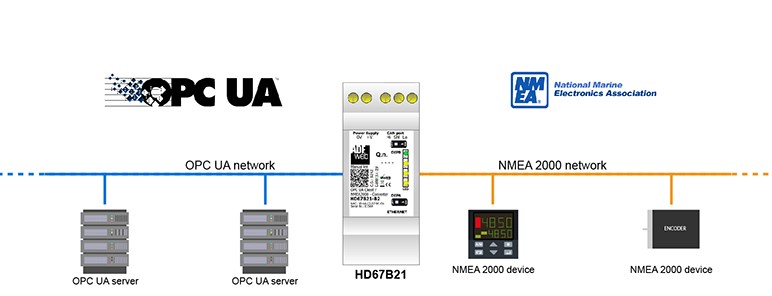

The HD67B21 is an OPC UA Client / NMEA2000 Converter and it allows you to read/write the data from a NMEA2000 net using one or more OPC UA Servers.
The HD67B44 is an OPC UA Server / NMEA2000 Converter and it allows you to read/write the data from one or more NMEA2000 devices (for example fluid level sensors, management of heat and cold, lights...) using one or more OPC UA Clients.
The OPC UA communication can be encrypted, ensuring a SECURE and SAFETY communication.
OPC UA Client / NMEA2000
HD67B21-B2
OPC UA Server / NMEA2000 - Converter ( Housing type: B, Terminal Blocks Connectors )
| Ports | 1xCAN;1xEthernet | |
|---|---|---|
| CAN Protocol | NMEA2000 | |
| Ethernet Protocol | OPC UA Server | |
| Data Rates NMEA2000 | Up to 1Mbps | |
| Data Rates OPC UA | 10/100 Base-T Autosensing | |
| NMEA2000 Connector | 3way 5mm terminal block | |
| OPC UA Connector | RJ45 | |
| Power Supply Connector | 2way 5mm terminal block | |
| Power Supply | 8..24V AC; 12..35V DC | |
| Operating Temperature | -40ºC/+85ºC (-40ºF/+185ºF) | |
| Dimensions | 36x60x95 (LxWxH) | |
| Weight | 200g approx | |
| Mechanical Fixing | DIN Rail montage | |
| SOFTWARE | SW67B44 | |
OPC UA Server / NMEA2000
HD67B44-B2
OPC UA Server / NMEA2000 - Converter ( Housing type: B, Terminal Blocks Connectors )
| Ports | 1xCAN;1xEthernet | |
|---|---|---|
| CAN Protocol | NMEA2000 | |
| Ethernet Protocol | OPC UA Server | |
| Data Rates NMEA2000 | Up to 1Mbps | |
| Data Rates OPC UA | 10/100 Base-T Autosensing | |
| NMEA2000 Connector | 3way 5mm terminal block | |
| OPC UA Connector | RJ45 | |
| Power Supply Connector | 2way 5mm terminal block | |
| Power Supply | 8..24V AC; 12..35V DC | |
| Operating Temperature | -40ºC/+85ºC (-40ºF/+185ºF) | |
| Dimensions | 36x60x95 (LxWxH) | |
| Weight | 200g approx | |
| Mechanical Fixing | DIN Rail montage | |
| SOFTWARE | SW67B44 | |
Accessories
| Order Code | Description |
|---|---|
| AC34011 | Isolated Converter 100..240V AC to 12V DC stabilized - AC/DC |
| AC34012 | Isolated Converter 100..240V AC to 24V DC stabilized - AC/DC |
| AC34131 | Patch Cross Cable Cat6 2 Meters |
