PROFIBUS to Modbus
Part No.: MPADFW-PROFIBUS-to-Modbus

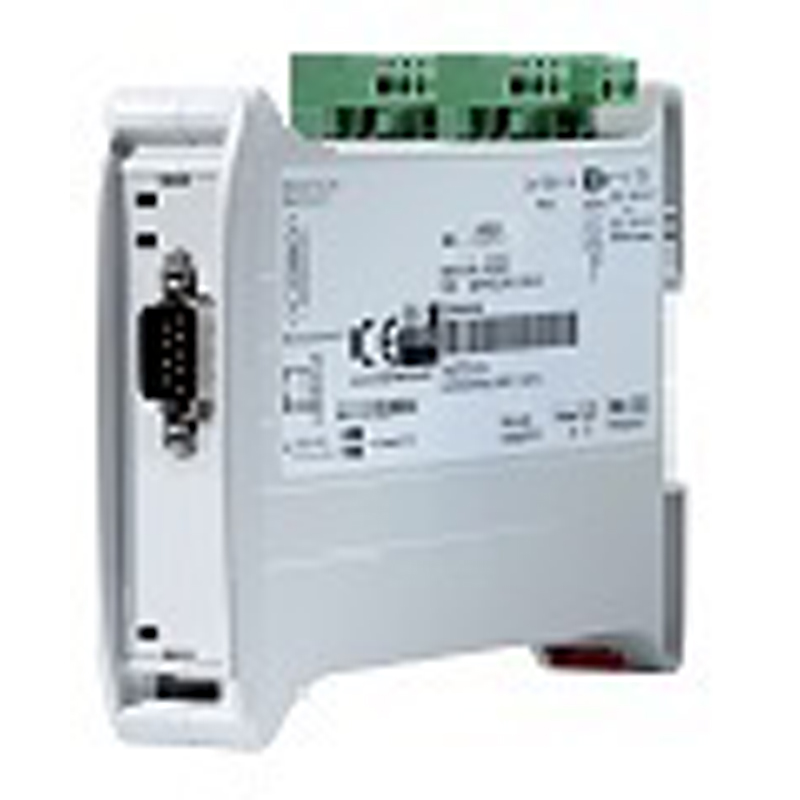

This series of products allows to integrate a PROFIBUS network with a serial RS232 or RS485 net.
產品介紹
PROFIBUS / Modbus - Converter
PROFIBUS / Serial - Converter
This series of products allows to integrate a PROFIBUS network with a serial RS232 or RS485 net. On serial side, it is possible to use Modbus protocol or generic RS232/RS485 communication.
The HD67561 is a PROFIBUS / Modbus Master Converter and it allows you to connect some Modbus slaves with an existing PROFIBUS network.
The HD67562 is a PROFIBUS / Modbus Slave Converter and it allows you to connect a PROFIBUS network with a Modbus Master (for example a PLC, HMI...) in order to exchange the informations between the networks.
The HD67045 is a PROFIBUS / Serial Converter and it allows you to connect a PROFIBUS network with some serial devices (for example a PC, sensors...) in order to exchange the informations between the networks.
The HD67580 is a PROFIBUS / Modbus Slave Converter and it allows you to connect some PROFIBUS devices with a Modbus Master (for example a PLC, SCADA system...) in order to exchange informations between the networks.
HD67561
PROFIBUS Slave / Modbus Master - Converter ( Housing type: A, Terminal Blocks Connectors )
| Ports | 1xPROFIBUS 1xRS232; 1xRS485 | |
|---|---|---|
| Data Rates PROFIBUS | Up to 12Mbps | |
| Data Rates Serial | Up to 115 Kbps | |
| Power Supply | 8...19V AC ; 8...35V DC | |
| Operating Temperature | -40ºC/+85ºC (-40ºF/+185ºF) | |
| Dimensions | 120x23x107 (DxWxH) | |
| Weight | 200g approx | |
| Mechanical Fixing | DIN Rail montage | |
| Software | SW67561 | |
HD67562
PROFIBUS Slave / Modbus Slave - Converter ( Housing type: A, Terminal Blocks Connectors )
| Ports | 1xPROFIBUS 1xRS232; 1xRS485 | |
|---|---|---|
| Data Rates PROFIBUS | Up to 12Mbps | |
| Data Rates Serial | Up to 115 Kbps | |
| Power Supply | 8...19V AC ; 8...35V DC | |
| Operating Temperature | -40ºC/+85ºC (-40ºF/+185ºF) | |
| Dimensions | 120x23x107 (DxWxH) | |
| Weight | 200g approx | |
| Mechanical Fixing | DIN Rail montage | |
| Software | SW67562 | |
HD67045
PROFIBUS / Serial - Converter ( Serial port: RS232 or RS485 )
| Ports | 1xPROFIBUS 1xRS232; 1xRS485 | |
|---|---|---|
| Data Rates PROFIBUS | Auto baudrate | |
| Data Rates Serial | Up to 115200 bps | |
| Power Supply | 8...19V AC ; 8...35V DC | |
| Operating Temperature | -40ºC/+85ºC (-40ºF/+185ºF) | |
| Dimensions | 120x23x107 (DxWxH) | |
| Weight | 200g approx | |
| Mechanical Fixing | DIN Rail montage | |
| Software | SW67045 | |
HD67580-A1
PROFIBUS Master / Modbus Slave - Converter ( Housing type: A, Terminal Blocks Connectors )
| Ports | 1xPROFIBUS;1xRS485; 1xEthernet | |
|---|---|---|
| Data Rates PROFIBUS | Up to 6M bps | |
| Data Rates Modbus | Up to 115200 bps | |
| Data Rates Ethernet | 10/100 Base-T Autosensing | |
| PROFIBUS Connector | D-SUB9 Female | |
| RS485 Connector | 3way 5mm removable screw terminal | |
| Ethernet Connector | RJ45 | |
| Power Supply Connector | 2way 5mm removable screw terminal | |
| Power Supply | 8...24V AC ; 12...35V DC | |
| Operating Temperature | -40ºC/+85ºC (-40ºF/+185ºF) | |
| Dimensions | 120x23x107 (DxWxH) | |
| Weight | 200g approx | |
| Mechanical Fixing | DIN Rail montage | |
| Software | SW67580 | |
.png)
Accessories
| Order Code | Description |
|---|---|
| AC34011 | Isolated Converter 100..240V AC to 12V DC stabilized - AC/DC |
| AC34012 | Isolated Converter 100..240V AC to 24V DC stabilized - AC/DC |
| AC34107 | Null Modem Cable, Fem/Fem, DSub 9 Pin, 1.8 m |
| AC34114 | Null Modem Cable, Fem/Fem, DSub 9 Pin, 5 m |
Benefits
- RS232/485 Selection
- Support Modbus RTU and generic data mode
- Software for easy configurator
- Designed for serius use
- Very easy to configure
- Low cost
- Rail din mountable
- Wide supply input range
- Galvanic isolation
- Industrial temperature range: -30°C / 70°C (-22°F / 158°F)
