SNMP to BACnet
Part No.: MPADFW-SNMP-to-BACnet
This series of products allows to integrate a BACnet network with a SNMP net.
產品介紹

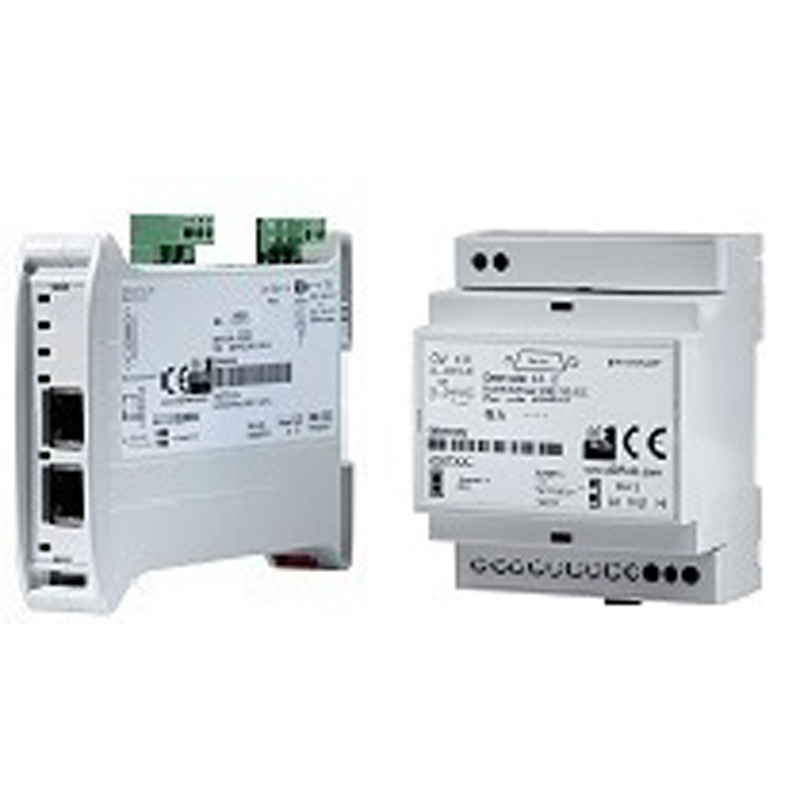

BACnet / SNMP - Converter
This series of products allows to integrate a BACnet network with a SNMP net.
The HD67693 is a BACnet Slave / SNMP Agent Converter and it allows you to connect a BACnet Master (for example a PC, a Supervisory System…) with a SNMP Manager in order to exchange the informations between the networks.
The HD67726 is a BACnet Master / SNMP Agent Converter and it allows you to connect some BACnet Slaves with a SNMP Manager (for example a PC, a Supervisory System…).
The HD67170 is a BACnet Slave / SNMP Manager Converter and it allows you to connect a BACnet Master (for example a PC, a Supervisory System…) with some SNMP Agents.
HD67693-IP, HD67726-IP, HD67170-IP supports both BACnet/IP and BACnet/Ethernet.
The connection to BACnet is done over Ethernet.
HD67693-MSTP, HD67726-MSTP, HD67170-MSTP supports BACnet MSTP.
The connection to BACnet is done over RS485.
BACnet Slave / SNMP Agent series
HD67693-IP-A1
BACNet IP / SNMP Agent - Converter ( Ethernet Switch Inside for enter/exit connection, Housing type: A, Terminal Blocks Connectors )
| Ports | 2xEthernet | |
|---|---|---|
| SNMP Protocol | SNMP Agent | |
| BACnet Protocol | BACNet IP Slave | |
| Data Rates SNMP | 10/100 Base-T autosensing | |
| Data Rates BACnet | 10/100 Base-T Autosensing | |
| SNMP Connector | RJ45 | |
| BACnet Connector | RJ45 | |
| Power Supply | 8..24V AC; 12..35V DC | |
| Power Supply Connector | 2way 5mm terminal block | |
| Operating Temperature | -40° to +85° (-40°F to +185°F) | |
| Dimensions | 120x23x107 (DxWxH) | |
| Weight | 200g approx | |
| Mechanical Fixing | 35mm DIN Rail montage | |
| Software | SW67693 | |
HD67693-MSTP-A1
BACnet MSTP Slave / SNMP Agent - Converter ( Housing type: A, Terminal Blocks Connectors )
| Ports | 1xRS485; 1xEthernet | |
|---|---|---|
| SNMP Protocol | SNMP Agent | |
| BACnet Protocol | BACnet MS/TP Slave | |
| Data Rates SNMP | 10/100 Base-T autosensing | |
| Data Rates BACnet | Up to 115200 bps | |
| SNMP Connector | RJ45 | |
| BACnet Connector | 3way 5mm removable screw terminal | |
| Power Supply | 8..24V AC; 12..35V DC | |
| Power Supply Connector | 2way 5mm terminal block | |
| Operating Temperature | -40° to +85° (-40°F to +185°F) | |
| Dimensions | 120x23x107 (DxWxH) | |
| Weight | 200g approx | |
| Mechanical Fixing | 35mm DIN Rail montage | |
| Software | SW67693 | |
HD67693-MSTP-B2
BACnet MSTP Slave / SNMP Agent - Converter ( Housing type: B, Terminal Blocks Connectors )
| Ports | 1xRS485; 1xEthernet | |
|---|---|---|
| SNMP Protocol | SNMP Agent | |
| BACnet Protocol | BACnet MS/TP Slave | |
| Data Rates SNMP | 10/100 Base-T autosensing | |
| Data Rates BACnet | Up to 115200 bps | |
| SNMP Connector | RJ45 | |
| BACnet Connector | 3way 5mm removable screw terminal | |
| Power Supply | 8..24V AC; 12..35V DC | |
| Power Supply Connector | 2way 5mm terminal block | |
| Operating Temperature | -40° to +85° (-40°F to +185°F) | |
| Dimensions | 71x60x95 (DxWxH) | |
| Weight | 200g approx | |
| Mechanical Fixing | 35mm DIN Rail montage | |
| Software | SW67693 | |
BACnet Master / SNMP Agent series
HD67726-IP-A1
BACNet IP Master / SNMP Agent - Converter ( Ethernet Switch Inside for enter/exit connection, Housing type: A, Terminal Blocks Connectors )
| Ports | 2xEthernet | |
|---|---|---|
| SNMP Protocol | SNMP Agent | |
| BACnet Protocol | BACNet IP Master | |
| Data Rates SNMP | 10/100 Base-T autosensing | |
| Data Rates BACnet | 10/100 Base-T Autosensing | |
| SNMP Connector | RJ45 | |
| BACnet Connector | RJ45 | |
| Power Supply | 8..24V AC; 12..35V DC | |
| Power Supply Connector | 2way 5mm terminal block | |
| Operating Temperature | -40° to +85° (-40°F to +185°F) | |
| Dimensions | 120x23x107 (DxWxH) | |
| Weight | 200g approx | |
| Mechanical Fixing | 35mm DIN Rail montage | |
| Software | SW67726 | |
HD67726-MSTP-A1
BACnet MSTP Master / SNMP Slave - Converter ( Housing type: A, Terminal Blocks Connectors )
| Ports | 1xRS485; 1xEthernet | |
|---|---|---|
| SNMP Protocol | SNMP slave | |
| BACnet Protocol | BACnet MS/TP Master | |
| Data Rates SNMP | 10/100 Base-T autosensing | |
| Data Rates BACnet | Up to 115200 bps | |
| SNMP Connector | RJ45 | |
| BACnet Connector | 3way 5mm removable screw terminal | |
| Power Supply | 8..24V AC; 12..35V DC | |
| Power Supply Connector | 2way 5mm terminal block | |
| Operating Temperature | -40° to +85° (-40°F to +185°F) | |
| Dimensions | 120x23x107 (DxWxH) | |
| Weight | 200g approx | |
| Mechanical Fixing | 35mm DIN Rail montage | |
| Software | SW67726 | |
HD67726-MSTP-B2
BACnet MSTP Master / SNMP Slave - Converter ( Housing type: B, Terminal Blocks Connectors )
| Ports | 1xRS485; 1xEthernet | |
|---|---|---|
| SNMP Protocol | SNMP slave | |
| BACnet Protocol | BACnet MS/TP Master | |
| Data Rates SNMP | 10/100 Base-T autosensing | |
| Data Rates BACnet | Up to 115200 bps | |
| SNMP Connector | RJ45 | |
| BACnet Connector | 3way 5mm removable screw terminal | |
| Power Supply | 8..24V AC; 12..35V DC | |
| Power Supply Connector | 2way 5mm terminal block | |
| Operating Temperature | -40° to +85° (-40°F to +185°F) | |
| Dimensions | 71x60x95 (DxWxH) | |
| Weight | 200g approx | |
| Mechanical Fixing | 35mm DIN Rail montage | |
| Software | SW67726 | |
BACnet Slave / SNMP Manager series
HD67170-IP-A1
BACNet IP / SNMP Manager - Converter ( Ethernet Switch Inside for enter/exit connection, Housing type: A, Terminal Blocks Connectors )
| Ports | 2xEthernet | |
|---|---|---|
| SNMP Protocol | SNMP Manager | |
| BACnet Protocol | BACNet IP Slave | |
| Data Rates SNMP | 10/100 Base-T Autosensing | |
| Data Rates BACnet | 10/100 Base-T Autosensing | |
| SNMP Connector | RJ45 | |
| BACnet Connector | RJ45 | |
| Power Supply | 8..24V AC; 12..35V DC | |
| Power Supply Connector | 2way 5mm terminal block | |
| Operating Temperature | -40° to +85° (-40°F to +185°F) | |
| Dimensions | 120x23x107 (DxWxH) | |
| Weight | 200g approx | |
| Mechanical Fixing | 35mm DIN Rail montage | |
| Software | SW67170 | |
HD67170-MSTP-A1
BACnet MSTP Slave / SNMP Manager - Converter ( Housing type: A, Terminal Blocks Connectors )
| Ports | 1xRS485; 1xEthernet | |
|---|---|---|
| SNMP Protocol | SNMP Manager | |
| BACnet Protocol | BACnet MS/TP Slave | |
| Data Rates SNMP | 10/100 Base-T autosensing | |
| Data Rates BACnet | Up to 115200 bps | |
| SNMP Connector | RJ45 | |
| BACnet Connector | 3way 5mm terminal block | |
| Power Supply | 8..24V AC; 12..35V DC | |
| Power Supply Connector | 2way 5mm terminal block | |
| Operating Temperature | -40° to +85° (-40°F to +185°F) | |
| Dimensions | 120x23x107 (DxWxH) | |
| Weight | 200g approx | |
| Mechanical Fixing | 35mm DIN Rail montage | |
| Software | SW67170 | |
HD67170-MSTP-B2
BACnet MSTP Slave / SNMP Manager - Converter ( Housing type: B, Terminal Blocks Connectors )
| Ports | 1xRS485; 1xEthernet | |
|---|---|---|
| SNMP Protocol | SNMP Manager | |
| BACnet Protocol | BACnet MS/TP Slave | |
| Data Rates SNMP | 10/100 Base-T autosensing | |
| Data Rates BACnet | Up to 115200 bps | |
| SNMP Connector | RJ45 | |
| BACnet Connector | 3way 5mm terminal block | |
| Power Supply | 8..24V AC; 12..35V DC | |
| Power Supply Connector | 2way 5mm terminal block | |
| Operating Temperature | -40° to +85° (-40°F to +185°F) | |
| Dimensions | 71x60x95 (DxWxH) | |
| Weight | 200g approx | |
| Mechanical Fixing | 35mm DIN Rail montage | |
| Software | SW67170 | |
Accessories
| Order Code | Description |
|---|---|
| AC34011 | Isolated Converter 100..240V AC to 12V DC stabilized - AC/DC |
| AC34012 | Isolated Converter 100..240V AC to 24V DC stabilized - AC/DC |
