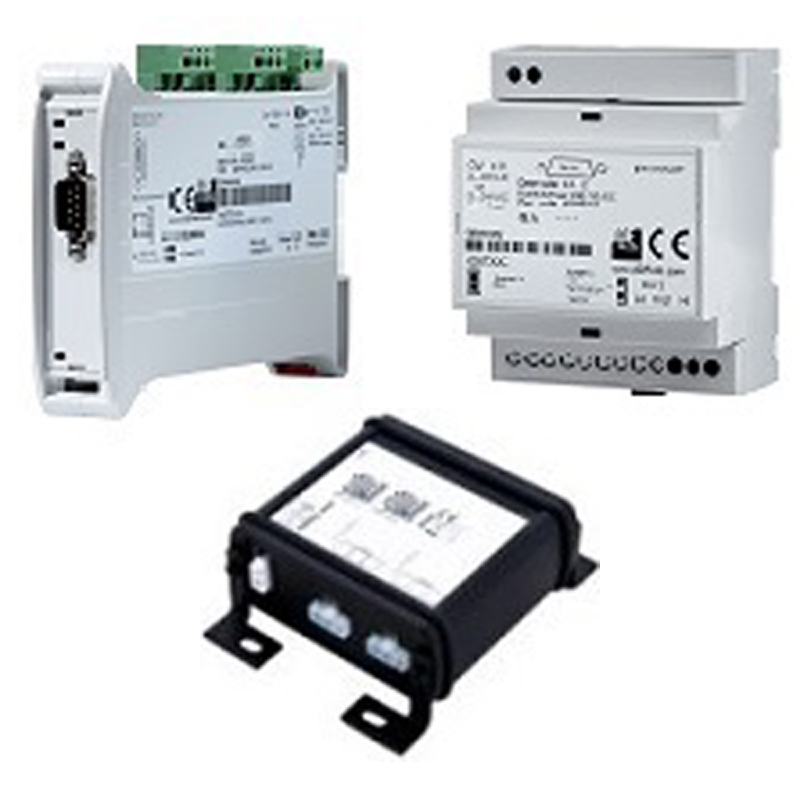

SNMP / CANopen - Converter

This series of products allows to integrate a SNMP network with a CANopen net.

The HD67156 is a SNMP Agent / CANopen Converter and it allows you to connect some CANopen devices with a SNMP Manager (for example a PC, Supervisory System...) in order to exchange the informations between the networks.

The converters are available also in another version, ideal for STRONG applications.

The corresponding models are:

• HD67430 - SNMP Agent / CANopen, STRONG Converter

These converters are contained in a metal housing, so it is STRONG and RESISTANT to the vibrations and shocks. The electrical parts are with triple isolation of 4000 V between SNMP/CAN - SNMP/Power Supply - CAN/Power Supply.
Particularly suitable for the installation on cars, trains, boats, industrial sector and in fragile environments.
Two versions, one with Varnished PCB and one with Resined PCB.
Varnished treatment gives dust and humidity protection, Resined treatment gives high water, dust and vibrations protection.
Excellent range of temperature resistance from -40 C to +105 C, features required by AUTOMOTIVE applications.

The HD67172 is a SNMP Manager / CANopen Converter and it allows you to connect some CANopen devices with some SNMP Agent (for example UPS, inverters...) in order to exchange the informations between the networks.

The converters are available also in another version, ideal for STRONG applications.

The corresponding models are:

• HD67450 - SNMP Manager / CANopen, STRONG Converter

These converters are contained in a metal housing, so it is STRONG and RESISTANT to the vibrations and shocks. The electrical parts are with triple isolation of 4000 V between SNMP/CAN - SNMP/Power Supply - CAN/Power Supply.
Particularly suitable for the installation on cars, trains, boats, industrial sector and in fragile environments.
Two versions, one with Varnished PCB and one with Resined PCB.
Varnished treatment gives dust and humidity protection, Resined treatment gives high water, dust and vibrations protection.
Excellent range of temperature resistance from -40ºC to +105ºC, features required by AUTOMOTIVE applications.

Series CANopen / SNMP Agent

HD67156-A1

CANopen / SNMP Agent - Converter ( Housing type: A, Terminal Blocks Connectors )




HD67156-B2

CANopen / SNMP Agent - Converter ( Housing type: B, Terminal Blocks Connectors )

SNMP / CANopen Converter

Products supplied with metal housing (Housing type: E), are STRONG and RESISTANT to mechanical stress (such as vibration and shock),electrical parts with a triple insulation 4 kVbetween CANopen/SNMP - CANopn/Power Supply – SNMP/Power Supply.

Particularly suitable for installation in cars, trucks, trains, boats, in the industrial sector and in fragile environments.Two versions, one with a coating of the PCB (suffix code V) that ensures total protection to the dust (IP65) and another encapsulation-based resin (suffix code R) which gives to device the high performance safety and insulation for wet environments (IP67) and to resist to noise.This product can be mounted on any type of surface (horizontal, vertical and oblique) with four fixing lugs, also you can choose the type of connector, Mini-Fit or Superseal 1.5.Excellent range of temperature resistance from -40 ° C to +105 ° C, features required by AUTOMOTIVE.

HD67430-E4V

SNMP / CAN - Converter

SNMP / CANopen - Converter ( Housing type: E, Mini-Fit Connectors, Triple Galvanic Isolation: 4KV, PCB Treatment: Varnished )




HD67430-E4R

SNMP / CANopen - Converter ( Housing type: E, Mini-Fit Connectors, Triple Galvanic Isolation: 4KV, PCB Treatment: Resined )

HD67430-E7V

SNMP / CANopen - Converter ( Housing type: E, SuperSeal 1.5 Connectors, Triple Galvanic Isolation: 4KV, PCB Treatment: Varnished )




HD67430-E7R

SNMP / CANopen - Converter ( Housing type: E, SuperSeal 1.5 Connectors, Triple Galvanic Isolation: 4KV, PCB Treatment: Resined )

Series CANopen / SNMP Manager

HD67172-A1

CANopen / SNMP Manager - Converter ( Housing type: A, Terminal Blocks Connectors )

HD67172-B2

CANopen / SNMP Manager - Converter ( Housing type: B, Terminal Blocks Connectors )

SNMP Manager / CANopen Converter

Products supplied with metal housing (Housing type: E), are STRONG and RESISTANT to mechanical stress (such as vibration and shock),electrical parts with a triple insulation 4 kVbetween CAN/SNMP - CAN/Power Supply – SNMP/Power Supply.

Particularly suitable for installation in cars, trucks, trains, boats, in the industrial sector and in fragile environments.Two versions, one with a coating of the PCB (suffix code V) that ensures total protection to the dust (IP65) and another encapsulation-based resin (suffix code R) which gives to device the high performance safety and insulation for wet environments (IP67) and to resist to noise.This product can be mounted on any type of surface (horizontal, vertical and oblique) with four fixing lugs, also you can choose the type of connector, Mini-Fit or Superseal 1.5.Excellent range of temperature resistance from -40 ° C to +105 ° C, features required by AUTOMOTIVE.

HD67450-E4V

SNMP Manager / CANopen - Converter (Housing type: E, Mini-Fit Connectors, Triple Galvanic Isolation: 4KV, PCB Treatment: Varnished )

HD67450-E4R

SNMP Manager / CANopen - Converter ( Housing type: E, Mini-Fit Connectors, Triple Galvanic Isolation: 4KV, PCB Treatment: Resined )

HD67450-E7V

SNMP Manager / CANopen - Converter ( Housing type: E, SuperSeal 1.5 Connectors, Triple Galvanic Isolation: 4KV, PCB Treatment: Varnished )

HD67450-E7R

SNMP Manager / CANopen - Converter ( Housing type: E, SuperSeal 1.5 Connectors, Triple Galvanic Isolation: 4KV, PCB Treatment: Resined )

Accessories

Benefits

• Software for easy configurator
• Designed for serius use
• Very easy to configure
• Low cost
• Rail din mountable
• Galvanic isolation
• Industrial temperature range:  -30° / 70° (-22°F / 158°F)
