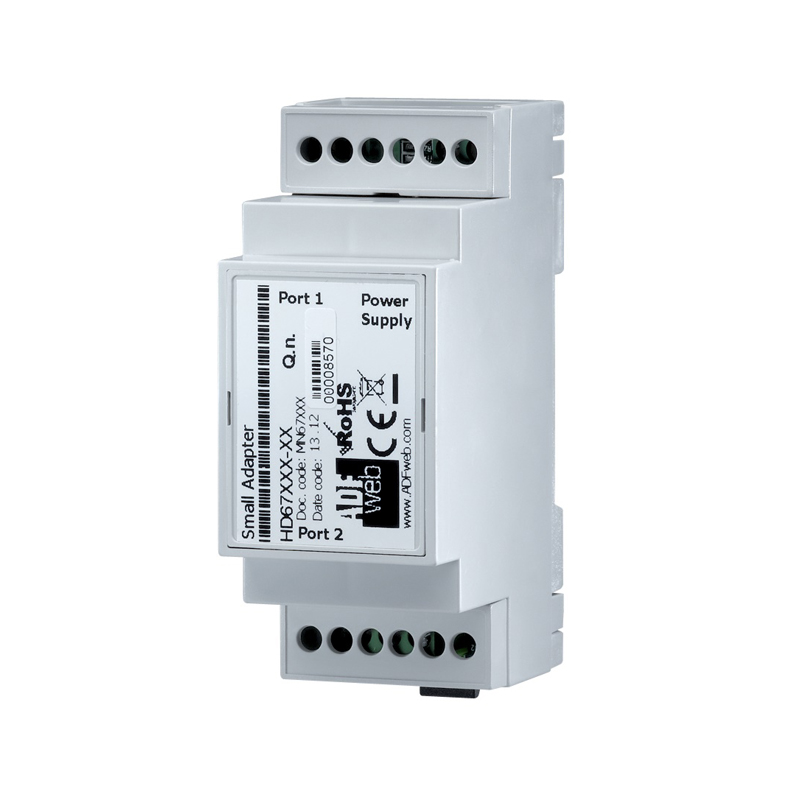

SNMP to DALI
Part No.: MPADFW-SNMP-to-DALI
This series of products allows to integrate some DALI & DALI-2 devices into a SNMP network.
產品介紹
DALI / SNMP - Converter
This series of products allows to integrate some DALI & DALI-2 devices into a SNMP network.
The HD67849-B2 is a DALI / SNMP Manager Converter so you can connect a DALI net ( like a light system, Sensors etc.. ) with some SNMP Agents in order to exchange informations between the nets.

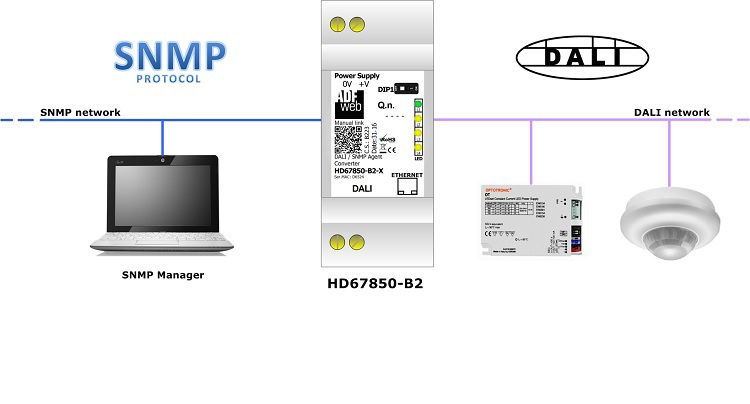

The HD67850-B2 is a DALI / SNMP Agent Converter so you can connect a DALI net ( like a light system, Sensors etc.. ) with a SNMP Manager ( like a Supervisory System.. ) in order to exchange informations between the nets.
To configure DALI network and test the communication, it is possible to use the available software that runs with Windows called DALI Console:
.png)
It works with the LAN port.
This software is very simple and it allows to see all the DALI devices connected to the converter, the Groups and the Scenes set; set/manage all their parameters.
HD67849-B2
DALI / SNMP Manager - Converter ( Housing type: B, Fixed Terminal Blocks )
| Ports | 1xDALI; 1xEthernet | |
|---|---|---|
| DALI Protocol | DALI | |
| Ethernet Protocol | SNMP Manager | |
| Data Rates DALI | 1200 bps | |
| Data Rates BACnet | 10/100 Base-T Autosening | |
| DALI Connector | 2way 5mm terminal block | |
| DALI Connector | RJ45 | |
| Power Supply | 8..24V AC; 12..35V DC | |
| Power Supply Connector | 2way 5mm terminal block | |
| Operating Temperature | -40ºC/+85ºC (-40ºF/+185ºF) | |
| Dimensions | 36x60x95 mm(DxWxH) | |
| Weight | 200g approx | |
| Mechanical Fixing | DIN Rail montage | |
| Software | SW67849 | |
HD67850-B2
DALI / SNMP Agent - Converter ( Housing type: B, Fixed Terminal Blocks )
| Ports | 1xDALI; 1xEthernet | |
|---|---|---|
| DALI Protocol | DALI | |
| Ethernet Protocol | SNMP Manager | |
| Data Rates DALI | 1200 bps | |
| Data Rates BACnet | 10/100 Base-T Autosening | |
| DALI Connector | 2way 5mm terminal block | |
| DALI Connector | RJ45 | |
| Power Supply | 8..24V AC; 12..35V DC | |
| Power Supply Connector | 2way 5mm terminal block | |
| Operating Temperature | -40ºC/+85ºC (-40ºF/+185ºF) | |
| Dimensions | 36x60x95 mm(DxWxH) | |
| Weight | 200g approx | |
| Mechanical Fixing | DIN Rail montage | |
| Software | SW67850 | |
Accessories
| Order Code | Description |
|---|---|
| AC34011 | Isolated Converter 100..240V AC to 12V DC stabilized - AC/DC |
| AC34012 | Isolated Converter 100..240V AC to 24V DC stabilized - AC/DC |
| AC34131 | Patch Cross Cable Cat6 2 Meters |
