SNMP to EnOcean
Part No.: MPADFW-SNMP-to-EnOcean
This series of products allows to integrate some EnOcean devices into an SNMP network.
產品介紹
EnOcean / SNMP - Converter
This series of products allows to integrate some EnOcean devices into an SNMP network.

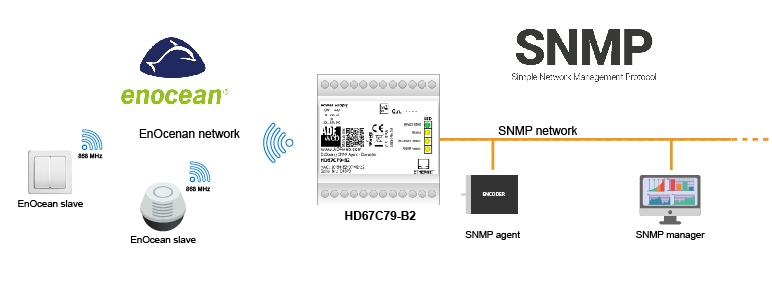

The HD67C79 is an EnOcean / SNMP Agent Converter so you can connect an EnOCean network with a SNMP Manager in order to exchange informations between the SNMP Manager (like a PLC, SCADA System etc..) and the EnOcean network.
EnOcean / SNMP Converters

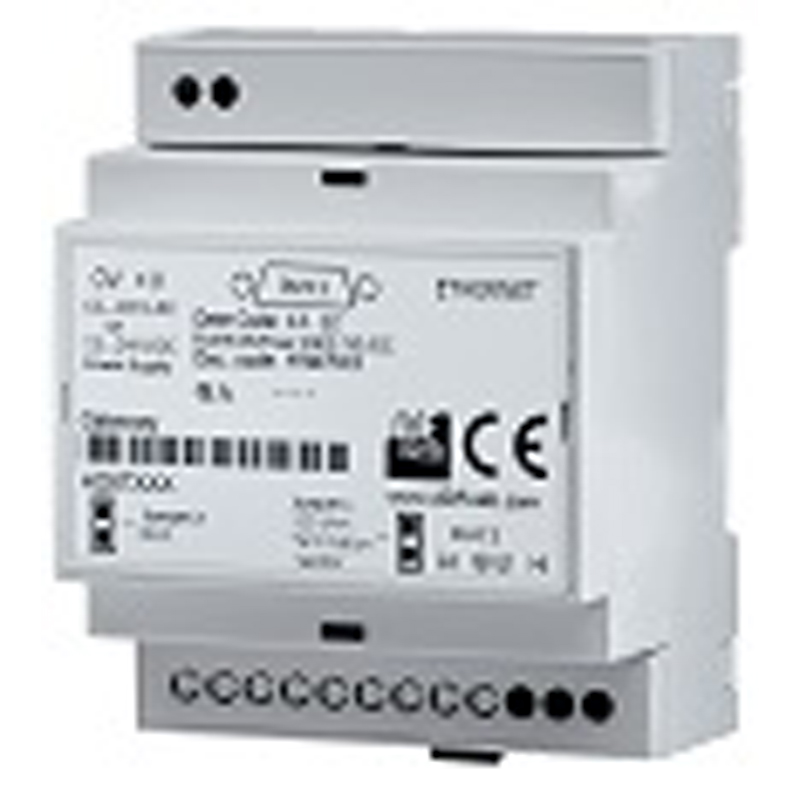

HD67C79-B2
EnOcean / SNMP Agent - Converter ( Housing type: B, Terminal Blocks Connectors )
| Ports | 1xEthernet | |
|---|---|---|
| Ethernet Protocol | SNMP Agent | |
| Ethernet Protocol | EnOcean | |
| Data Rates SNMP | 10/100 Base-T Autosensing | |
| Data Rates EnOcean | 10/100 Base-T Autosensing | |
| SNMP Connector | RJ45 | |
| EnOcean Connector | RJ45 | |
| Power Supply | 8..24V AC; 12..35V DC | |
| Power Supply Connector | 2way 5mm terminal block | |
| Operating Temperature | -40° to +85° (-40°F to +185°F) | |
| Dimensions | 70x60x95 (DxWxH) | |
| Weight | 200g approx | |
| Mechanical Fixing | 35mm DIN Rail montage | |
| Software | SW67C79 | |
Accessories
| Order Code | Description |
|---|---|
| AC34011 | Isolated Converter 100..240V AC to 12V DC stabilized - AC/DC |
| AC34012 | Isolated Converter 100..240V AC to 24V DC stabilized - AC/DC |
| AC34131 | Patch Cross Cable Cat6 2 Meters |
