SNMP to IEC61850
Part No.: MPADFW-SNMP-to-IEC61850
This series of products allows to integrate some IEC61850 devices into a SNMP network.
產品介紹
IEC 61850 / SNMP - Converter
This series of products allows to integrate some IEC61850 devices into a SNMP network.

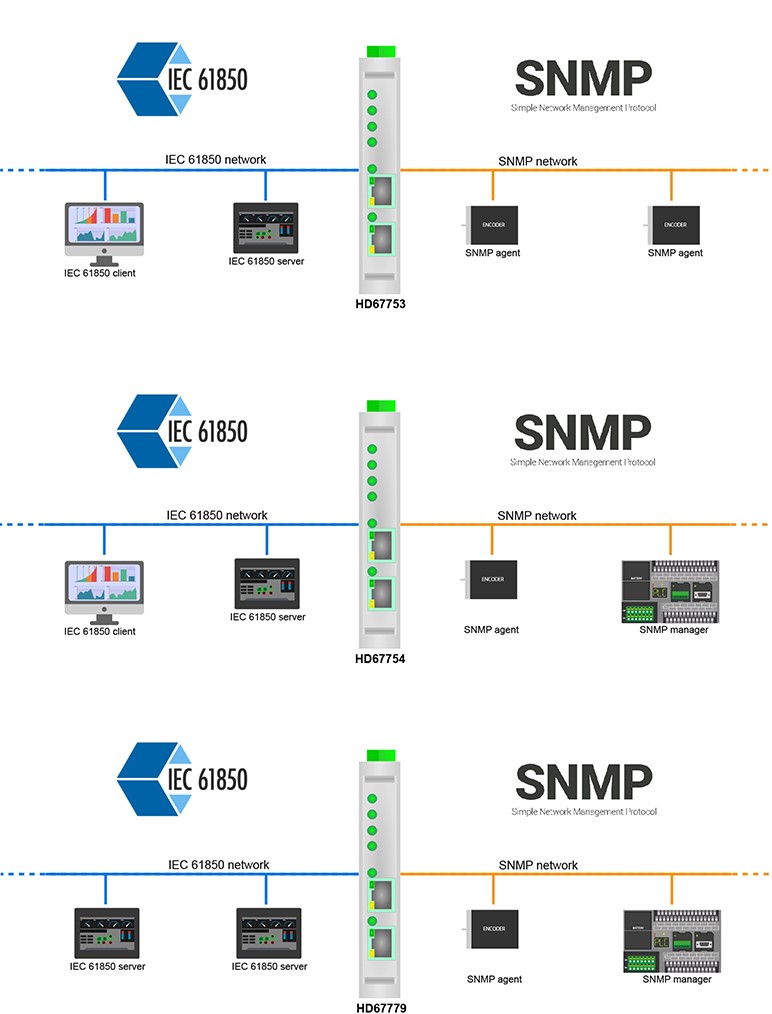

The HD67753-A1 is an IEC 61850 Server / SNMP Manager Converter so you can connect an IEC 61850 Client network (for example a SCADA, HMI etc..) with some SNMP devices in order to exchange informations between the nets.
The HD67754-A1 is an IEC 61850 Server / SNMP Agent Converter so you can connect an IEC 61850 Client network (for example a SCADA, HMI etc..) with an SNMP Manager in order to exchange informations between the nets.
The HD67779-A1 is an IEC 61850 Client / SNMP Agent Converter so you can connect an IEC 61850 Server network (for example a Meters, Switces etc..) with an SNMP Manager in order to exchange informations between the networks.
IEC 61850 Server / SNMP
HD67753-A1
IEC 61850 Server / SNMP Manager - Converter ( Housing type: A, Terminal Blocks Connectors )
| Ports | 2xEthernet | |
|---|---|---|
| Ethernet Protocol | SNMP Manager | |
| IEC 61850 Protocol | Server | |
| Data Rates SNMP | 10/100 Base-T Autosensing | |
| Data Rates IEC 61850 | 10/100 Base-T Autosensing | |
| SNMP Connector | RJ45 | |
| IEC 61850 Connector | RJ45 | |
| Power Supply | 8..24V AC; 12..35V DC | |
| Power Supply Connector | 2way 5mm terminal block | |
| Operating Temperature | -40° to +85° (-40°F to +185°F) | |
| Dimensions | 120x23x107 (DxWxH) | |
| Weight | 200g approx | |
| Mechanical Fixing | 35mm DIN Rail montage | |
| Software | SW67753 | |
HD67754-A1
IEC 61850 Server / SNMP Agent - Converter ( Housing type: A, Terminal Blocks Connectors )
| Ports | 2xEthernet | |
|---|---|---|
| Ethernet Protocol | SNMP Agent | |
| IEC 61850 Protocol | Client | |
| Data Rates SNMP | 10/100 Base-T Autosensing | |
| Data Rates IEC 61850 | 10/100 Base-T Autosensing | |
| SNMP Connector | RJ45 | |
|
IEC 61850 Connector
|
RJ45 | |
| Power Supply | 8..24V AC; 12..35V DC | |
| Power Supply Connector | 2way 5mm terminal block | |
| Operating Temperature | -40° to +85° (-40°F to +185°F) | |
| Dimensions | 120x23x107 (DxWxH) | |
| Weight | 200g approx | |
| Mechanical Fixing | 35mm DIN Rail montage | |
| Software | SW67754 | |
IEC 61850 Client / SNMP
HD67779-A1
IEC 61850 Client / SNMP Agent - Converter ( Housing type: A, Terminal Blocks Connectors )
| Ports | 2xEthernet | |
|---|---|---|
| Ethernet Protocol | SNMP Agent | |
| IEC 61850 Protocol | Client | |
| Data Rates SNMP | 10/100 Base-T Autosensing | |
| Data Rates IEC 61850 | 10/100 Base-T Autosensing | |
| SNMP Connector | RJ45 | |
| IEC 61850 Connector | RJ45 | |
| Power Supply | 8..24V AC; 12..35V DC | |
| Power Supply Connector | 2way 5mm terminal block | |
| Operating Temperature | -40º to +85º (-40ºF to +185ºF) | |
| Dimensions | 120x23x107 (DxWxH) | |
| Weight | 200g approx | |
| Mechanical Fixing | 35mm DIN Rail montage | |
| Software | SW67779 | |
Accessories
| Order Code | Description |
|---|---|
| AC34011 | Isolated Converter 100..240V AC to 12V DC stabilized - AC/DC |
| AC34012 | Isolated Converter 100..240V AC to 24V DC stabilized - AC/DC |
| AC34131 | Patch Cross Cable Cat6 2 Meters |
