SNMP / J1939 - Converter

This series of products allows to integrate a SNMP network with a J1939 net.

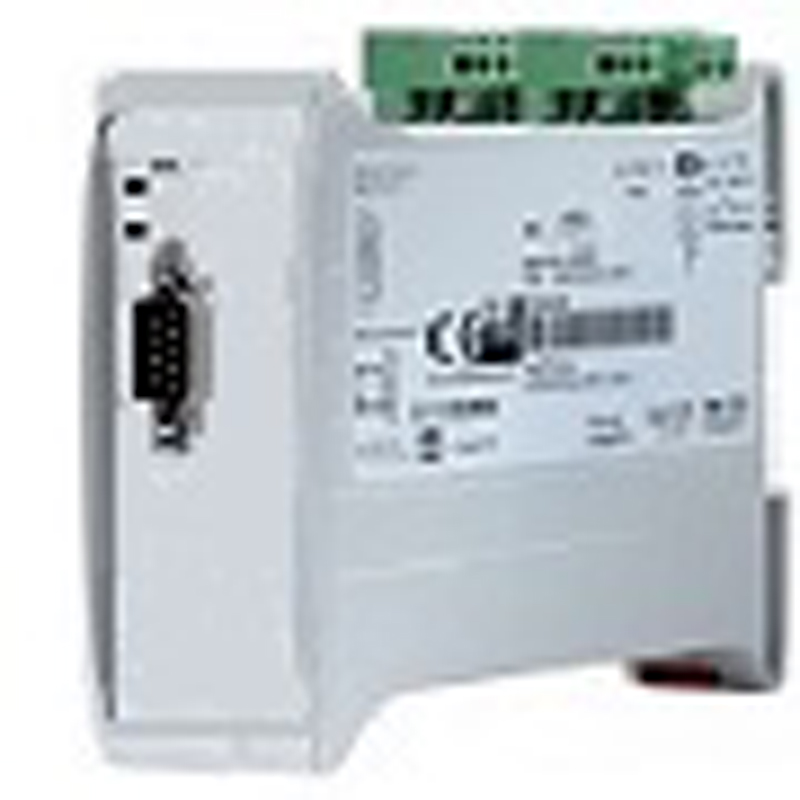

The HD67162 is a SNMP / J1939 Converter and it allows you to connect a SNMP Manager net (for example a PC, Supervisory System…) with some J1939 devices (for example common engines like CAT, Iveco, Volvo…).

They are available in two Housing types: Type A and Type B (see "View" below).

The converters are available also in another version, ideal for STRONG applications.

The corresponding models are:

• HD67448 - SNMP / J1939, STRONG Converter

These converters are contained in a metal housing, so it is STRONG and RESISTANT to the vibrations and shocks. The electrical parts are with triple isolation of 4000 V between SNMP/J1939 - J1939/Power Supply - SNMP/Power Supply.
Particularly suitable for the installation on cars, trains, boats, industrial sector and in fragile environments.
Two versions, one with Varnished PCB and one with Resined PCB.
Varnished treatment gives dust and humidity protection, Resined treatment gives high water, dust and vibrations protection.
Excellent range of temperature resistance from -40°C to +105°C, features required by AUTOMOTIVE applications.

Series J1939 / SNMP

HD67162-A1

J1939 / SNMP - Converter ( Housing type: A, Terminal Blocks Connectors )

HD67162-B2

J1939 / SNMP - Converter ( Housing type: B, Terminal Blocks Connectors )

SNMP / J1939 Converter

Products supplied with metal housing (Housing type: E), are STRONG and RESISTANT to mechanical stress (such as vibration and shock), electrical parts with a triple insulation 4 kV between J1939/SNMP – J1939/Power Supply – SNMP/Power Supply.
Particularly suitable for installation in cars, trucks, trains, boats, in the industrial sector and in fragile environments.Two versions, one with a coating of the PCB (suffix code V) that ensures total protection to the dust (IP65) and another encapsulation-based resin (suffix code R) which gives to device the high performance safety and insulation for wet environments (IP67) and to resist to noise.
This product can be mounted on any type of surface (horizontal, vertical and oblique) with four fixing lugs, also you can choose the type of connector, Mini-Fit or Superseal 1.5.Excellent range of temperature resistance from -40 ° C to +105 ° C, features required by AUTOMOTIVE

HD67448-E4V

SNMP / J1939 - Converter ( Housing type: E, Mini-Fit Connectors, Triple Galvanic Isolation: 4KV, PCB Treatment: Varnished )

HD67448-E4R

SNMP / J1939 - Converter ( Housing type: E, Mini-Fit Connectors, Triple Galvanic Isolation: 4KV, PCB Treatment: Resined )



HD67448-E7V

SNMP / J1939 - Converter ( Housing type: E, SuperSeal 1.5 Connectors, Triple Galvanic Isolation: 4KV, PCB Treatment: Varnished )

HD67448-E7R

SNMP / J1939 - Converter ( Housing type: E, SuperSeal 1.5 Connectors, Triple Galvanic Isolation: 4KV, PCB Treatment: Resined )
