SNMP / M-Bus - Converter

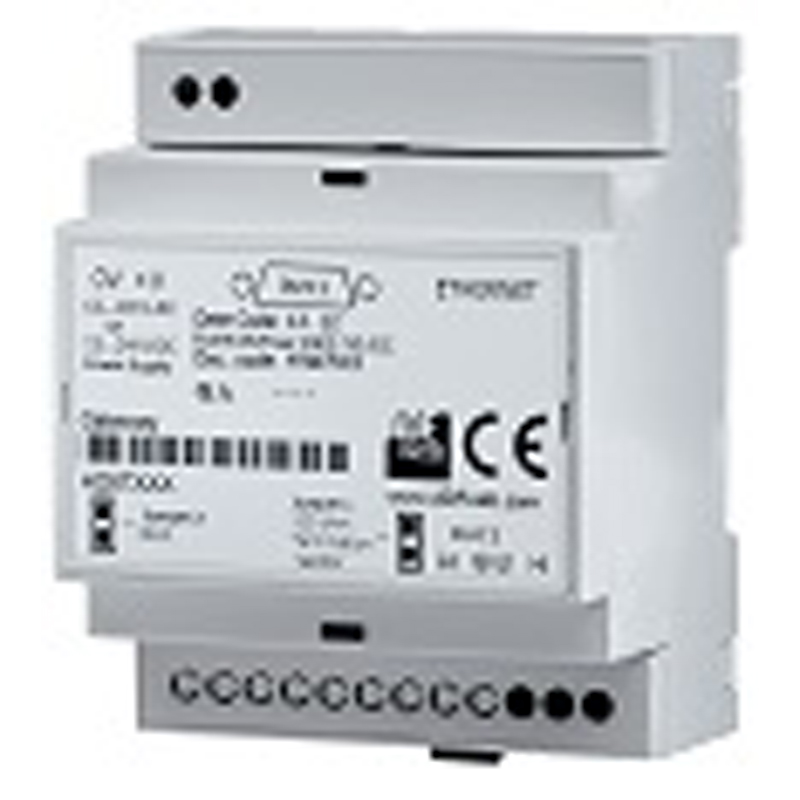

The HD67163-B2-xxx are M-Bus / SNMP converters.
They allow to monitor some M-Bus meters (like Engelmann, Amber-Wireless, Maddalena, Siemens, exc. meters) with a SNMP net (like a Supervisory System exc).
On M-Bus side, the HD67163-B2 can manage up to 250 meters.
HD67163-B2-20
M-Bus Master / SNMP - Converter ( Master M-Bus: up to 20 slaves )
| Ports | 1xM-Bus; 1xEthernet | |
|---|---|---|
| M-Bus Protocol | M-Bus master | |
| SNMP Protocol | SNMP | |
| Data Rates M-Bus | Up to 38400 bps | |
| Data Rates SNMP | 10/100 Base-T Autosensing | |
| M-Bus Connector | 2way 5mm fixed screw terminal | |
| SNMP Connector | RJ45 | |
| Power Supply | 15...21V AC ; 18...35V DC | |
| Operating Temperature | -40ºC/+70ºC (-40ºF/+158ºF) | |
| Dimensions | 71x60x95 (DxWxH) | |
| Weight | 200g approx | |
| Mechanical Fixing | DIN Rail montage | |
| Software | SW67163 | |
HD67163-B2-40
M-Bus Master / SNMP - Converter ( Master M-Bus: up to 40 slaves )
| Ports | 1xM-Bus; 1xEthernet | |
|---|---|---|
| M-Bus Protocol | M-Bus master | |
| SNMP Protocol | SNMP | |
| Data Rates M-Bus | Up to 38400 bps | |
| Data Rates SNMP | 10/100 Base-T Autosensing | |
| M-Bus Connector | 2way 5mm fixed screw terminal | |
| SNMP Connector | RJ45 | |
| Power Supply | 15...21V AC ; 18...35V DC | |
| Operating Temperature | -40ºC/+70ºC (-40ºF/+158ºF) | |
| Dimensions | 71x60x95 (DxWxH) | |
| Weight | 200g approx | |
| Mechanical Fixing | DIN Rail montage | |
| Software | SW67163 | |
HD67163-B2-80
M-Bus Master / SNMP - Converter ( Master M-Bus: up to 80 slaves )
| Ports | 1xM-Bus; 1xEthernet | |
|---|---|---|
| M-Bus Protocol | M-Bus master | |
| SNMP Protocol | SNMP | |
| Data Rates M-Bus | Up to 38400 bps | |
| Data Rates SNMP | 10/100 Base-T Autosensing | |
| M-Bus Connector | 2way 5mm fixed screw terminal | |
| SNMP Connector | RJ45 | |
| Power Supply | 15...21V AC ; 18...35V DC | |
| Operating Temperature | -40ºC/+70ºC (-40ºF/+158ºF) | |
| Dimensions | 71x60x95 (DxWxH) | |
| Weight | 200g approx | |
| Mechanical Fixing | DIN Rail montage | |
| Software | SW67163 | |
HD67163-B2-160
M-Bus Master / SNMP - Converter ( Master M-Bus: up to 160 slaves )
| Ports | 1xM-Bus; 1xEthernet | |
|---|---|---|
| M-Bus Protocol | M-Bus master | |
| SNMP Protocol | SNMP | |
| Data Rates M-Bus | Up to 38400 bps | |
| Data Rates SNMP | 10/100 Base-T Autosensing | |
| M-Bus Connector | 2way 5mm fixed screw terminal | |
| SNMP Connector | RJ45 | |
| Power Supply | 15...21V AC ; 18...35V DC | |
| Operating Temperature | -40ºC/+70ºC (-40ºF/+158ºF) | |
| Dimensions | 71x60x95 (DxWxH) | |
| Weight | 200g approx | |
| Mechanical Fixing | DIN Rail montage | |
| Software | SW67163 | |
HD67163-B2-250
M-Bus Master / SNMP - Converter ( Master M-Bus: up to 250 slaves )
| Ports | 1xM-Bus; 1xEthernet | |
|---|---|---|
| M-Bus Protocol | M-Bus master | |
| SNMP Protocol | SNMP | |
| Data Rates M-Bus | Up to 38400 bps | |
| Data Rates SNMP | 10/100 Base-T Autosensing | |
| M-Bus Connector | 2way 5mm fixed screw terminal | |
| SNMP Connector | RJ45 | |
| Power Supply | 15...21V AC ; 18...35V DC | |
| Operating Temperature | -40ºC/+70ºC (-40ºF/+158ºF) | |
| Dimensions | 71x60x95 (DxWxH) | |
| Weight | 200g approx | |
| Mechanical Fixing | DIN Rail montage | |
| Software | SW67163 | |
Accessories
| Order Code | Description |
|---|---|
| AC34107 | Null Modem Cable, Fem/Fem, DSub 9 Pin, 1.8 m |
| AC34114 | Null Modem Cable, Fem/Fem, DSub 9 Pin, 5 m |
| APW020 | Power Supply for M-Bus Master device that supports up to 20 Slaves |
| APW040 | Power Supply for M-Bus Master device that supports up to 40 Slaves |
| APW080 | Power Supply for M-Bus Master device that supports up to 80 Slaves |
| APW160 | Power Supply for M-Bus Master device that supports up to 160 Slaves |
| APW250 | Power Supply for M-Bus Master device that supports up to 250 Slaves |
