SNMP to MQTT
Part No.: MPADFW-SNMP-to-MQTT
This series of products allows you to integrate a SNMP network with the IoT world based on MQTT net.
產品介紹
IoT Gateway
SNMP / MQTT - Converter

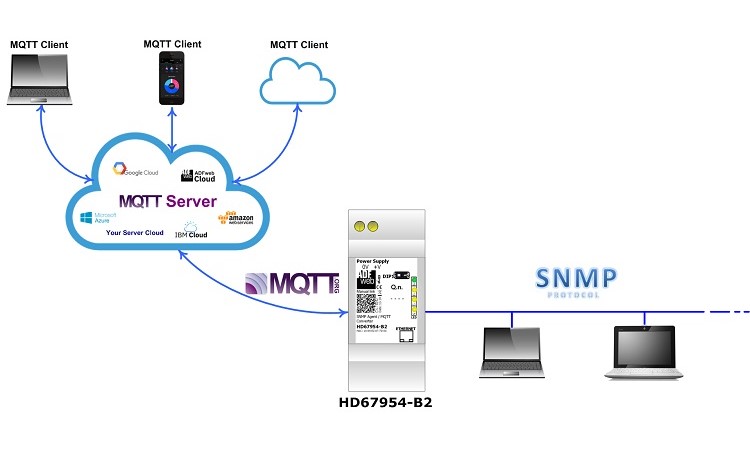

This series of products allows you to integrate a SNMP network with the IoT world based on MQTT net.
The HD67953-B2 are SNMP Manager / MQTT Converters.
They allow to publish the data read from the SNMP Agent into a MQTT Server.
The HD67954-B2 are SNMP Agent / MQTT Converters.
They allow to publish and get the data into/from a MQTT Server using a SNMP Manager (like PC, Supervisory System etc.) .
These gateways allow a fast and easy access to IoT world and they are compatible with IoT Servers ( Microsoft Azure, Amazon AWS, IBM Cloud, Google Cloud... etc and customized Servers) that support MQTT protocol.
The MQTT communication can be encrypted using TLS / SSL protocols, ensuring a SECURE and SAFETY communication.

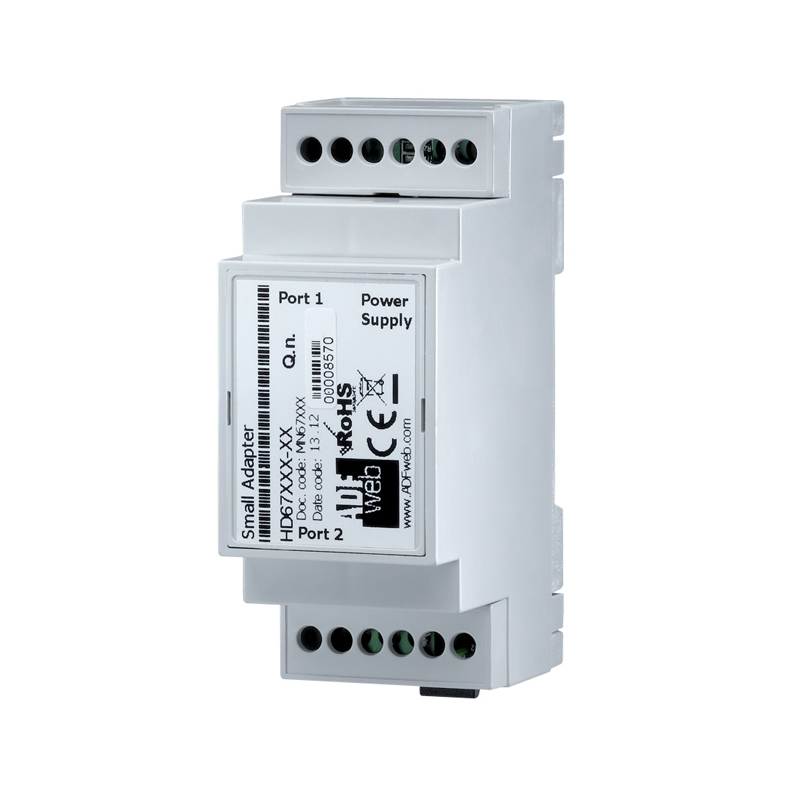

HD67953-B2
SNMP Manager / MQTT - Converter ( Housing type: B, Terminal Blocks Connectors )
| Ports | 1xEthernet | |
|---|---|---|
| EtherNet Protocol | MQTT | |
| SNMP Protocol | SNMP Manager | |
| Data Rates SNMP | 10/100 Base-T Autosensing | |
| Data Rates MQTT | 10/100 Base-T Autosensing | |
| SNMP Connector | RJ45 | |
| MQTT Connector | RJ45 | |
| Power Supply | 8..24V AC; 12..35V DC | |
| Power Supply Connector | 2way 5mm terminal block | |
| Operating Temperature | -40° to +85° (-40°F to +185°F) | |
| Dimensions | 36x60x95 (DxWxH) | |
| Weight | 200g approx | |
| Mechanical Fixing | 35mm DIN Rail montage | |
| Software | SW67953 | |
HD67954-B2
SNMP Agent / MQTT - Converter ( Housing type: B, Terminal Blocks Connectors )
| Ports | 1xEthernet | |
|---|---|---|
| EtherNet Protocol | MQTT | |
| SNMP Protocol | SNMP Agent | |
| Data Rates SNMP | 10/100 Base-T Autosensing | |
| Data Rates MQTT | 10/100 Base-T Autosensing | |
| SNMP Connector | RJ45 | |
| MQTT Connector | RJ45 | |
| Power Supply | 8..24V AC; 12..35V DC | |
| Power Supply Connector | 2way 5mm terminal block | |
| Operating Temperature | -40° to +85° (-40°F to +185°F) | |
| Dimensions | 36x60x95 (DxWxH) | |
| Weight | 200g approx | |
| Mechanical Fixing | 35mm DIN Rail montage | |
| Software | SW67954 | |
Accessories
| Order Code | Description |
|---|---|
| AC34011 | Isolated Converter 100..240V AC to 12V DC stabilized - AC/DC |
| AC34012 | Isolated Converter 100..240V AC to 24V DC stabilized - AC/DC |
| AC34131 | Patch Cross Cable Cat6 2 Meters |
