Profibus Diagnostic & Troubleshooting Device

Supports PROFIBUS cable testing, physical signal & protocol analysis

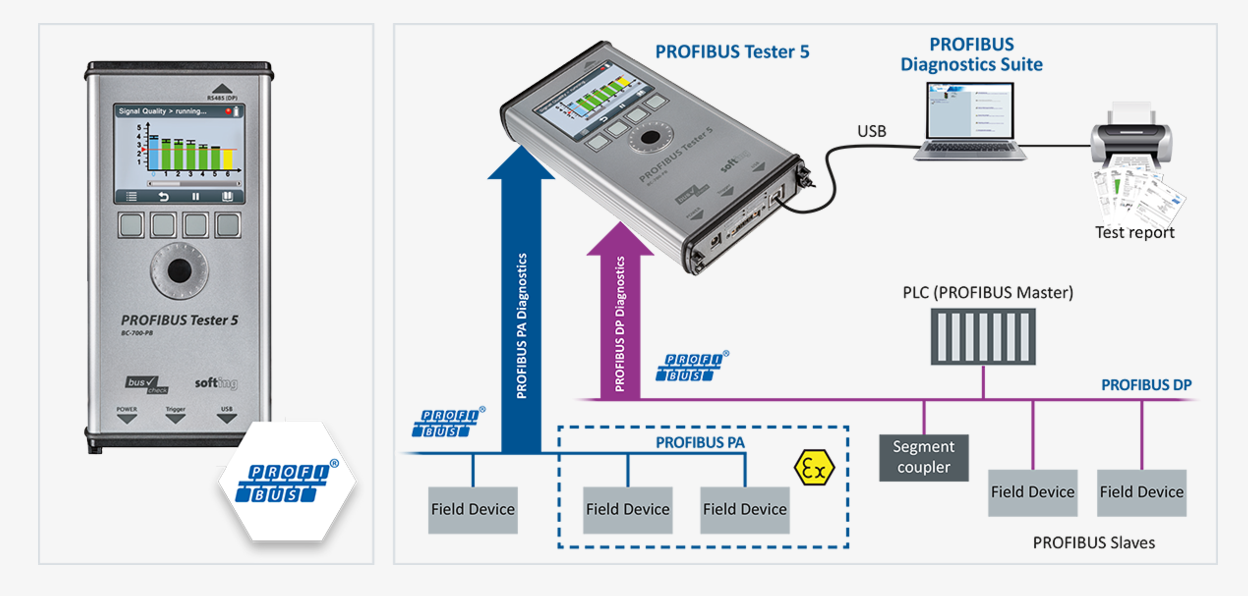

The PROFIBUS Tester 5 (BC-700-PB) is a powerful PROFIBUS diagnostic and troubleshooting tool for testing the cables, measuring the signals and analyzing the communication of PROFIBUS networks. It is battery-powered and provides a graphical display, allowing for quick results when working in stand-alone mode. Optionally, also PROFIBUS PA network can be analyzed. In addition, the PROFIBUS Tester 5 supports the export of test results for advanced analysis.

Overview

Test PROFIBUS Cable, Signals, and Data, All-In-One Handheld Tester

• Combination of PROFIBUS signal tester, oscilloscope, protocol analyzer, master simulator and cable tester functionality in a single handheld diagnostic tool
• Includes stand-alone mode plus extended PC-based diagnostics
• Suited for PROFIBUS installation, setup, commissioning, documentation, acceptance testing, network optimization, preventive maintenance, troubleshooting as well as laboratory tests
• Ideal for first time users as well as for PROFIBUS specialists

Highly Mobile PROFIBUS Tester for Testing Even Without a Laptop

• Battery-powered operation; testing while unplugged reduces risk of ground loops
• Graphical display provides easy-to-understand presentation of test results
• Comprehensive network tests are built-in to PROFIBUS Tester 5 without requiring a laptop PC

Enhanced Diagnostic Features in the Analytical Software

• Many additional features for executing, analyzing and managing PROFIBUS tests (Trend, Topology Scan, Master Simulator, Oscilloscope, Frame Analyzer)
• Quick Test and User-Controlled Test for easy network status assessment at the push of a button
• Generation of test reports describing the actual status of the PROFIBUS installation

Optional Measuring Adapter for MBP (Manchester Coded Bus Powered) Signals

• Specific signal analysis supporting MBP Physics (feeding voltage, signal deviation, signal polarity, bitrate divergence)
• Complete protocol analysis directly at the PROFIBUS PA segment

Order Information

Scope of Delivery

• Hardware: PROFIBUS Tester 5 (BC-700-PB), power supply unit 100 VAC ... 240 VAC, 50/60 Hz with connecting cables for Europe and USA, adaptor cables, carrying case, measuring adapter BC-700-H1, measuring cable set (for PROFIBUS PA option)
• Software: PROFIBUS Diagnostics Suite (PC software for Windows on CD-ROM)
• PROFIBUS Tester 5 (BC-700-PB) upgrade license (on CD-ROM, for PROFIBUS PA option)
• Documentation: Device manual, “Getting Started“ manual

Order Numbers

• DDL-NL-006018: PROFIBUS Tester 5 + Oscilloscope Option + PA-Option (+ cable set)
• DDL-NN-006012: PROFIBUS Tester 5 + Oscilloscope Option
• DDL-NL-006016: PROFIBUS Tester 5 + PA-Option (+ cable set)

Additional Products and Services

• DDA-NN-006014: PROFIBUS Tester 5 (BC-700-PB)
• LRA-NN-006017: Double license Oscilloscope Option + PA-Option (+ cable set)
• LRA-NN-006011: License Oscilloscope Option
• DDL-NL-006010: License PA-Option (+ cable set)
• ACA-NN-006033: D-Sub to M12 adapter set with T-piece and M12 bus termination for PROFIBUS DP
• DDA-ZZ-004010: Digital Fieldbus Leakage Current Clamp for Locating EMC Problems, 40 ..1000 Hz, MIN/MAX, Data Hold, Measuring Cables, supplied in a Handy Case (fi ts in Empty Compartment of Carrying Case)
• ACL-NN-006037:D-Sub Service Interface with Active Bus Termination and 90° Angled Connector for PROFIBUS DP
• ACA-NN-006034: M12 Service Interface for PROFIBUS DP, Comprising M12 T-Piece, End Cap and M12 Connection Cable (1 m)
• ACA-NN-006031:EIA-485 D-Sub adapter cable for testing operational networks with reduced influence on segment operation
