Modbus TCP/FF HSE to FOUNDATION Fieldbus H1 Gateway

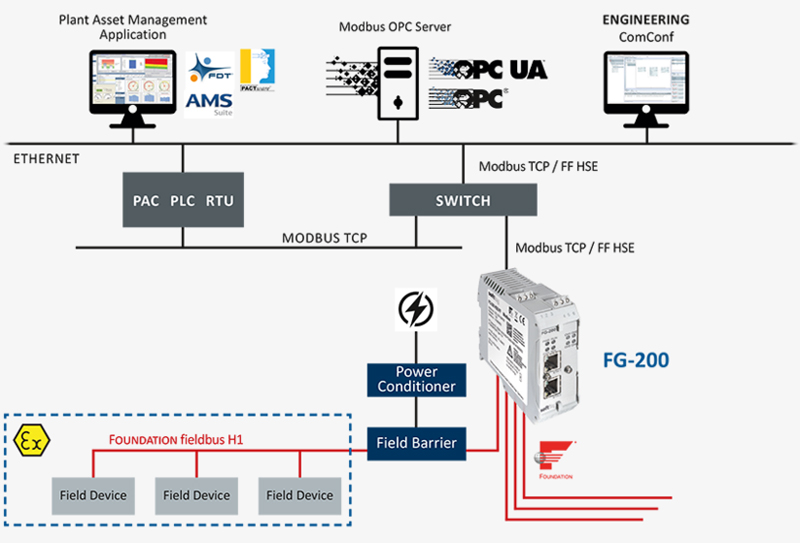

Integration of up to 4 FF H1 segments into control systems via Modbus TCP or FOUNDATION Fieldbus HSE

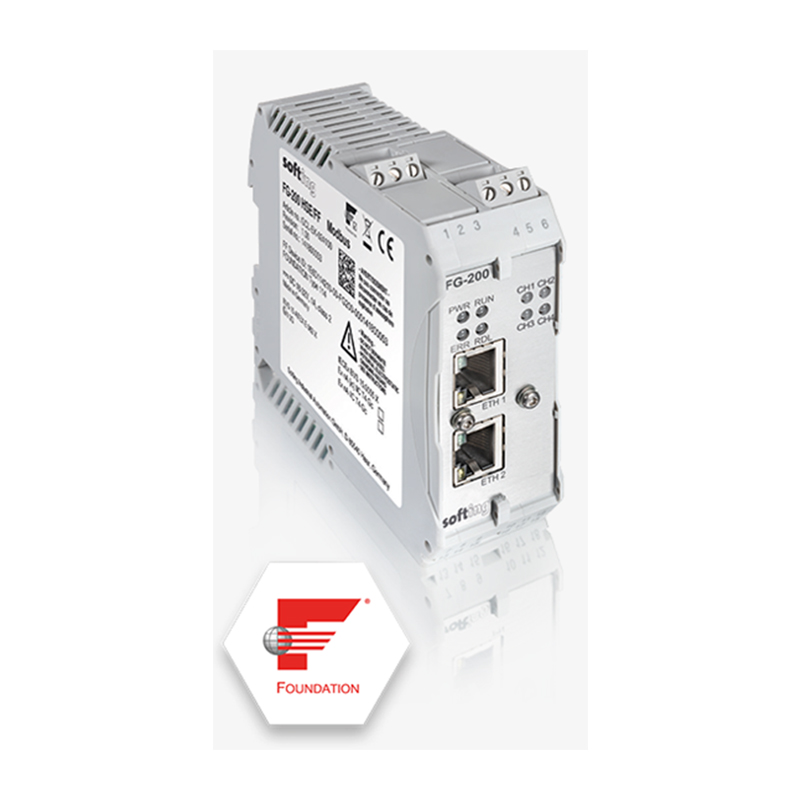

With Softing’s FG-200, it is possible to integrate up to four FOUNDATION™ Fieldbus (FF) H1 links into control systems supporting Modbus. The FG-200 provides redundancy and is suitable for use in hazardous areas. This device features fast access to process data, while making use of FF advantages like reduced cabling, central field device parameterization, comprehensive diagnostics, or intrinsically safe device segments. It is compatible with the R. STAHL bus-Carrier Series 9419 and Fieldbus Power Supply Series 9412 products for easy commissioning.


Overview

Easy Commissioning

• Optional support of R. STAHL bus-Carrier Series 9419 and Fieldbus Power Supply 9412 products (cabling reduced to a minimum)
• Modbus data import to web server reducing mapping efforts

Asset Management

• Visitor mode avoiding interference with network behavior
• Enabling asset management systems (e.g. Emerson’s AMS) and Field Device Tool (FDT) frame applications (e.g. SMART VISION, FieldMate, Field Device Manager, FieldCare, or PACTware)

Device Redundancy

• Redundancy link enabling device redundancy (D-3 according to FF-593)
• Automatic mirroring of configuration data
• Very fast redundancy switch-over

All Necessary Tools Included

• FF Configuration Tool for configuration of devices and cyclic communication
• PACTware for device configuration and basic asset management tasks

Order Information

Scope of Delivery

• Hardware: FG-200 HSE/FF Modbus
• Software: FF Configuration Tool, FDT CommDTM, PACTware on CD-ROM
• Documentation: Quick Startup Guide, User Manual on CD-ROM

Order Numbers

• GLA-EK-024102: FG-200 HSE/FF Modbus
• GLA-EK-024103: FG-200 HSE/FF Modbus, functionally identical design variant for use with R. STAHL bus-Carrier Series 9419 and Fieldbus Power Supply 9412 products
• ACA-ZZ-020631: Redundancy Link (3-pole), Cable (30 cm) for connecting redundant pairs of FG-200

Fieldbus Infrastructure

Installation solutions: When using the high-power trunk topology or FISCO, we offer in cooperation with R.Stahl, fieldbus infrastructure components with PROFIBUS PA and FOUNDATION fieldbus H1 – this ranges from power supply, physical layer diagnostics and field device couplers to termination resistors.
