Interface for the Student

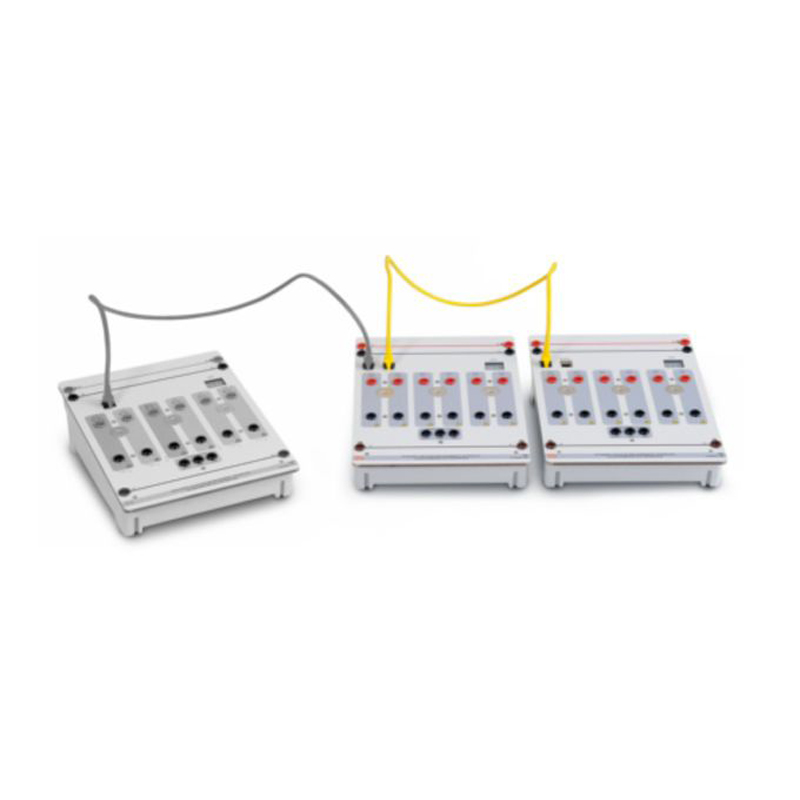

The student receives signals via the interface which can be measured as per normal experimenting. The signals are taken from the experiment by the teachers interface and then provided to the student interfaces without loss of signal regardless of the number of interfaces connected. The student is not able to manipulate the signal transmission and a breakdown of one student's interface will not affect the rest of the students interfaces operation. The student's interface is protected against short circuit and polarity reversal connections.

List of Articles

Please note, there must be one teacher interface in each system!

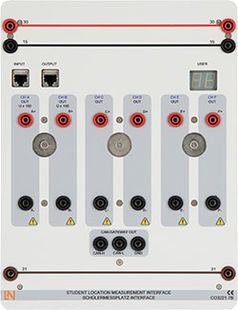

Students Location Measurement Interface

The student measurement station interface is designed to reproduce voltage signals. In conjunction with an instructor's measurement station a dedicated network can be set up for the transmission of voltage signals.

System specifications

• Mobile measurement station interface for the reproduction of voltage signals arriving from the instructor's measurement station.
• Data transmission performed via Ethernet cable (2 x 1m CAT6 cables according to the best industry standards included).
• Display of the measurement station interface.
• Indicator signals presence of power voltage.
• Voltage supply via plug-in power supply unit.
• Output sockets designed as 4-mm safety sockets:
• Assignment of the outputs:
  • 2 x 2 sockets +/- 500V analog output
  • 4 x 2 sockets +/- 15V analog output
• Built-in CAN transceiver chip, class B
• Dimensions: 228 x 296 x 125mm (WxHxD)
• Weight: 2 kg

Please note, that you need an ethernet patch cable for each student interface.

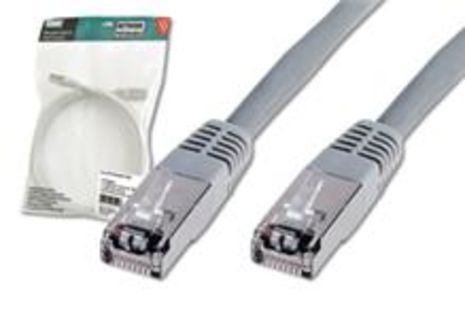

Patch Cable Cat6, 5m, grey

Patch cable Cat 5E

• Color: grey
• Foil shilding
• Antikink
• Length 5m

Additionally Recommended

Modular Measurement Interface

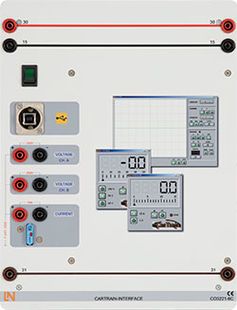

The CarTrain Interface takes the form of a DIN A4 experiment card with rounded corners, colour-coded in compliance with DIN72551 for educational assistance.

Safety measurement sockets are also coded on the basis of DIN72551.

The design resembles circuit diagrams depicted in a detached or exploded view with power supply wiring running between panels.

• Interface for multimedia experiment literature – measurements need to be copied into the experiment instruction pages using drag and drop.
• Two voltage values and one current can all be measured simultaneously
• 3-channel oscilloscope function can be used at the same time as the multimeter display
• Measurement range: V<250 V=/~, I<15A=/~ direct measurement within the circuit
• USB interface
• External power supply to ensure measurements can be made even when short circuits are present
• Current measuring range protected by automatic circuit breaker
• Dimensions: 228 x 296 x 125 mm (WxHxD)
• Weight: 2 kg
