LAUNCH

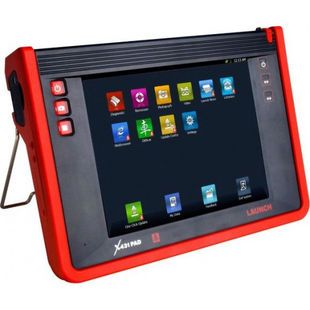

LAUNCH X-431 Euro Tab Including WiFi-Capable Printer and Docking Station

The X-431 Euro Tab, based on the Android operating system, is the latest intelligent diagnostic system to be developed by LAUNCH. Thanks to the new “FIN scan” and “Cloud diagnostics” technologies, the X-431 Euro Tab makes vehicle diagnostics smarter and more efficient. It retains all the existing benefits of LAUNCH's diagnostic technology, such as the broad coverage of vehicles, accurate test values or extensive functions for testing and special purposes. With its wireless connection to the Vehicle Communications Interface (VCI) adapter, it is possible to obtain diagnostic read-outs on vehicles from Asia, Europe and America, featuring comprehensive diagnostic information even for luxury marques such as Maserati or Ferrari.

Functions:

• Broad coverage of vehicles (more than 100 marques)
• Actuator testing, adjustment, coding and programming
• Intelligent FIN scan
• Built-in translation function for fault codes
• Display of actual and setpoint values
• Intelligent diagnostic report
• One-click updates
• Diagnostics for heavy goods vehicles (optional HD module)

Technical information

• Operating system: Android 6.0
• Battery: 15 Ah/lithium polymer
• Camera: Front 2.0 megapixels/rear 8.0 megapixels
• Dimensions: 304 mm x 181 mm x 33 mm (LxWxH)
• DBSCar IV adapter (Bluetooth/cable)
• Includes WiFi-capable printer (pocket version)
• Includes docking station

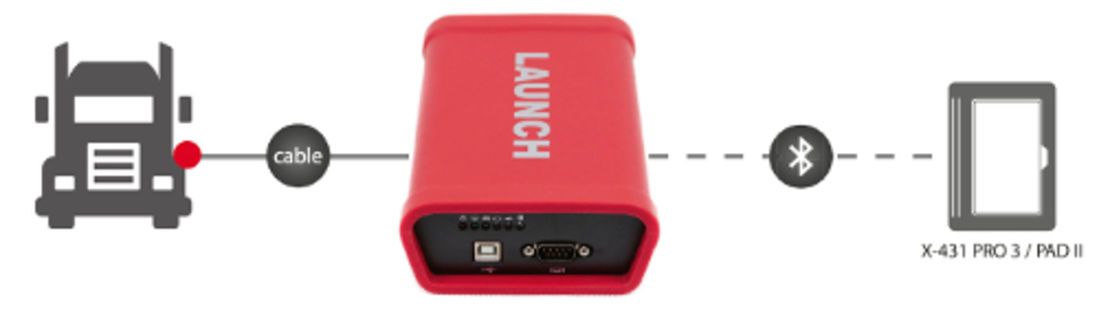

Heavy-Duty Truck Module (Diagnostic Supplement for X-431 Euro Tab)

This module makes it possible for you to considerably enhance the diagnostic capabilities of your X-431 Euro Tab. The module allows you to carry out diagnostics on heavy goods vehicles with 12-V or 24-V on-board networks and utilise the full functionality of Euro Tab on vehicles of this kind. The module is connected to the vehicle by means of an OBD cable. Connection to the Euro Tab itself is established via Bluetooth. Together with the module you are also supplied with a large selection of different plugs and adapters.

Supported vehicle marques:

• Mercedes-Benz
• MAN
• Volvo
• Scania
• Iveco
• DAF
• Renault
• Freightliner
• Sterling
• HINO
• Fuso
• UD
• and many more

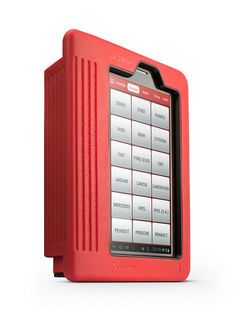

Launch X-431 Pro Bluetooth and Touch Operation

The X-431 PRO diagnostics series is based on the Android operating system and allows communication to be established with the chosen vehicle by means of Bluetooth. Apart from the familiarly high degree of testing capability, an X-431 PRO features an extensive range of functions: In combination with “golo”, the X-431 PRO equipment also gains remote control capability. It completely redefines customer management.

Features:

• Tablet computer with extensive hardware and software capability
• Built-in social network service allowing access to the diagnostic community
• One-click update online via WiFi
• Remote control/diagnostics with optional "golo"

Applications:

• OBD-I & OBD-II/EOBD
• CAN bus system
• ECU information, VIN
• Reading and clearing fault codes
• Actual values
• Resetting of adaptation values
• Actuation testing
• Coding, programming
• Clearing of default settings
• Service reset
• Quick test for vehicles
• Auto data (optional)
• Online feedback
• Social networks
• Remote control via “golo”

Technical data:

• Android operating system
• Storage capacity 2 GB + 8 GB
• Battery lifetime per charge: 3-4 hours
• Display 7" touch screen
• WiFi
• Bluetooth
• USB port
• WiFi printer (optional)
• Camera (front 0.3 megapixels/rear 2 megapixels)
• Adapter kit
• Dimensions: 160 x 210 x 52 mm
