Part No.: MPLCNL-Digitally-Integrated-Training-Vehicle
To be able to make training as hands-on and practical as possible, the LN vehicle with cut-away sections has been especially designed for training and educational purposes.
To be able to make training as hands-on and practical as possible, the LN vehicle with cut-away sections has been especially designed for training and educational purposes. All of the important components have thus been made accessible so as to allow for direct measurement of the sensor and actuator signals. To simulate typical auto shop situations, faults can be enabled via a fault simulation box.
Thanks to various expansion packs the training vehicle can be customized specifically for the client. This makes it possible for the training system to be upgraded into a completely digitalized training vehicle, making the training system into one that is optimally integrated into the modern training methodology of the 21st century. Faults are wirelessly uploaded to the vehicle using course software that can then be worked through autonomously by the trainee on the basis of the auto shop job order.
All of the measurement results (including current measurements via clam meters) are transmitted to the software and evaluated.
It is also possible to expand the training system by adding trainee measurement stations, which enable several trainees to measure and perform diagnostics in parallel. This makes it possible for an entire group to be kept busy working on just one vehicle.
The fundamental objective of every training system is the practical and competent imparting of the training material. The trainee is supposed to learn practical diagnostic methods and be able to apply these methods directly on the motor vehicle based on individual workshop orders. Here the primary focus is hands-on implementation based on the everyday working life of an automotive mechatronics specialist. The training vehicles from Lucas-Nülle meet these demands perfectly. They give the trainee a unique learning experience and provide a perfect symbiosis between theory and practice. Diagnostics expertise is learned in a systematic fashion using enabled fault simulations. Thanks to the numerous measuring possibilities which encompass the entire vehicle, the diagnosis of faults can be explored and understood step-by-step using real authentic circuit diagrams.
Due to the fact that the vehicle was converted for educational purposes in Germany, the training system meets the highest quality and safety demands. This is an essential point particularly when it comes to the area of alternative drives. Only a professionally prepared HV system provides the trainees with a safe experimenting environment which can also guarantee maximum learning success as well. At the same time all of the vehicle's systems remain totally operational.

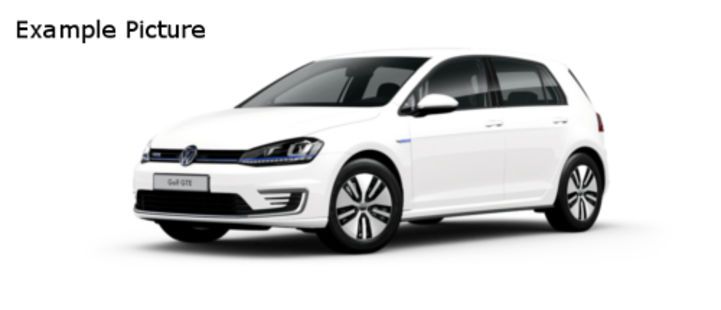

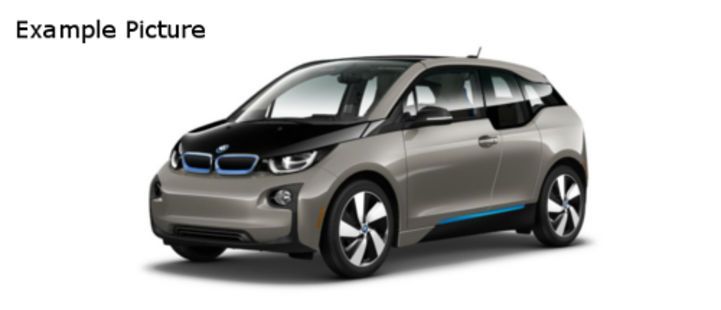

Vehicle type
The following content can be covered with the help of this vehicle:
The following modifications have been conducted on the motor vehicle:
Thanks to the supplementary vehicle modifications through the expansion packs CO3223-7E and CO3223-7F, the spectrum of the vehicle is significantly enhanced in terms of its educational performance:
The fundamental objective of every training system is the practical and competent imparting of the training material. The trainee is supposed to learn practical diagnostic methods and be able to apply these methods directly on the motor vehicle based on individual workshop orders. Here the primary focus is hands-on implementation based on the everyday working life of an automotive mechatronics specialist. The training vehicles from Lucas-Nülle meet these demands perfectly. They give the trainee a unique learning experience and provide a perfect symbiosis between theory and practice. Diagnostics expertise is learned in a systematic fashion using enabled fault simulations. Thanks to the numerous measuring possibilities which encompass the entire vehicle, the diagnosis of faults can be explored and understood step-by-step using real authentic circuit diagrams.
Due to the fact that the vehicle was converted for educational purposes in Germany, the training system meets the highest quality and safety demands. This is an essential point particularly when it comes to the area of alternative drives. Only a professionally prepared HV system provides the trainees with a safe experimenting environment which can also guarantee maximum learning success as well. At the same time all of the vehicle's systems remain totally operational.
The following content can be imparted with the aid of the vehicle:
The following modifications have been conducted on the motor vehicle:
Thanks to supplementary vehicle modifications through the expansion packs CO3223-7E and CO3223-7F, the vehicle spectrum in terms of its educational performance is significantly enhanced:
The fundamental objective of every training system is the practical and competent imparting of the training material. The trainee is supposed to learn practical diagnostic methods and be able to apply these methods directly on the motor vehicle based on individual workshop orders. Here the primary focus is hands-on implementation based on the everyday working life of an automotive mechatronics specialist. The training vehicles from Lucas-Nülle meet these demands perfectly. They give the trainee a unique learning experience and provide a perfect symbiosis between theory and practice. Diagnostics expertise is learned in a systematic fashion using enabled fault simulations. Thanks to the numerous measuring possibilities which encompass the entire vehicle, the diagnosis of faults can be explored and understood step-by-step using real authentic circuit diagrams.
Due to the fact that the vehicle was converted for educational purposes in Germany, the training system meets the highest quality and safety demands. This is an essential point particularly when it comes to the area of alternative drives. Only a professionally prepared HV system provides the trainees with a safe experimenting environment which can also guarantee maximum learning success as well. At the same time all of the vehicle's systems remain totally operational.
The following content can be imparted with the aid of the vehicle:
The following modifications have been conducted on the motor vehicle:
Thanks to supplementary vehicle modifications through the expansion packs CO3223-7E and CO3223-7F, the vehicle spectrum in terms of its educational performance is significantly enhanced:
Please take note of the special delivery deadlines!
This extension transforms the training system into a digitally integrated training vehicle. By adding a variety of modifications, both trainer and trainee are provided with totally new ways of interacting. As soon as the digital training environment inside the pack has been connected via WLAN to the vehicle using a Windows end device, the training system can unleash its full potential. The measurement interface integrated into the training vehicle is used in combination with the training environment to provide all the measuring instruments ever needed. Accordingly the trainee can choose from a wide spectrum of instruments ranging from a simple voltmeter, to an ammeter all the way to a four-channel oscilloscope. Signals and measurement values are directly tapped at the measurement sites inside the training vehicle (so-called breakout boxes). During the measurement, findings are transmitted to the training environment in real time for immediate evaluation and archiving. With a focus on diagnostics, the interactive course integrated into the training environment explores the material and imparts the needed know-how using numerous animations and practical exercises to permit a professional and time-efficient diagnosis to be carried out on the motor vehicle.
The diagnostics interface which is also integrated ensures that in-depth diagnostic skill is acquired by permitting a select number of fault simulations to be introduced to the motor vehicle. Since these faults are enabled directly from the learning environment, it is the easiest way possible of fault activation. The trainee initiates a workshop order and in the process the faults are automatically introduced to the motor vehicle. On the course page the complete method of diagnosis is noted down and all measurement findings are saved. As soon as the trainee has left the course page, the faults are automatically disabled again. The vehicle thus returns to its fault-free operating state.
Additional modifications versus the basic version

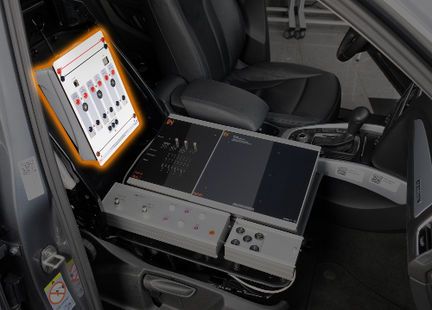

This expansion pack adds to the training vehicle a network of individually extendable trainee measurement stations. If a measurement is being conducted by several trainees at once, the integrated digital measurement interface supports this process by transmitting up to six different signals (depending on the channel, up to 300 V ) via cable and thus completely disturbance-free from the training vehicle to any trainee workstation. Thanks to the perfect digitally interconnected network, even the various CAN signals from the vehicle can be transmitted directly to the trainee via an integrated gateway. The network comprising student measurement stations can be expanded (Standard: 6 student measuring units) at will while still retaining the same signal quality. With the aid of expansions, whole groups can work on one and the same vehicle. It is also possible to easily create practical tests and to conduct them with this expansion pack without any great effort.
Additional modifications versus the basic version

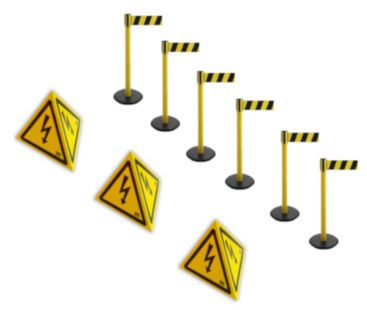

This set gives you the option of setting up a complete safety zone for working with high-voltage hybrid and electric vehicles or their high-voltage batteries. Six securely free-standing poles with cordon straps allow you to set up a safety zone which meets the highest safety demands. Such a safety zone needs to be set up to secure high-voltage vehicles or their HV components and to protect trainees in laboratories or repair shops. For any work on a high-voltage battery it is essential for the area to be cordoned off. Setting up a safety zone is therefore an essential aspect of any training.
The cordon straps require no maintenance, are resistant to tearing and do not sag. This guarantees the highest level of safety and durability. The three magnetic roof pylons can be simply attached to the roof of a vehicle without any tools. Everything in the set is a certified and tested safety product.

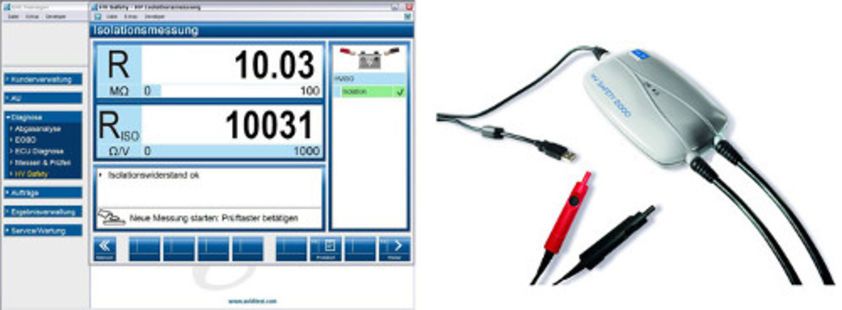

When carrying out measurements on vehicles using high-voltage systems, special requirements are set with regard to safety for measurement and testing. This is why we provide a high-voltage measuring system "HV Safety 2000" with a USB interface. It has been specifically developed for automotive requirements. It allows for high-voltage safety requirements to be maintained in repair workshops and for measurement procedures to be documented.
PC with up-to-date Windows operating system and two available USB-2 ports
Warning: The equipment is authorised exclusively for measurements on vehicles in conjunction with selected training systems, such as CarTrain CO3221-6K and CO3221-6D. Measurements on circuits connected directly to the mains are not permitted.
This set provides you with the optimum safety equipment for any type of work on hybrid or electric vehicles. The fact that all these products have been developed and manufactured in Germany means that they meet the highest safety standards and comply with all essential German standards.

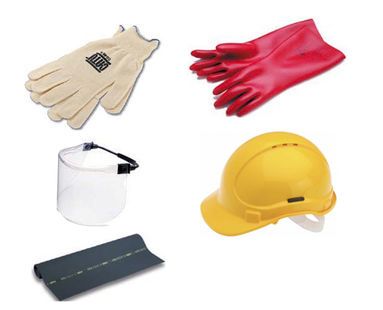

1000 V Electricians' safety helmet, "yellow" (DIN EN 397)
Light and modern protective helmet conforming to DIN EN 397, made of HDPE (high-density polyethylene) with air holes, electrically insulating for up to 440 V AC or 1000 V in conjunction with a face screen, extension to protect the neck, with hygienic terry sweat band, rain channel and slits in the side for attaching ear and face protection, ratchet head strap, 8-hole interior strap adjustment, for hat sizes 50-66 cm, 310 g. Supplied in signal yellow.
1000 V Face protection screen (DIN EN 166)
Compliant with DIN EN 166 for combination with Electricians' safety helmet, full protection against flame arcs, short-circuit arc flashovers, liquid splashes and other damage for the whole face including ears, colourless, transparent, lifting protective screen.
1000 V electrical safety gloves, class 0
Compliant with DIN EN 60903, with test stamp for work in voltage ranges up to 1000 V, made of natural latex, anatomically shaped, optimum flexibility.
Fabric liner gloves
Glove liners for absorbing skin moisture and for better ventilation when wearing electrical safety gloves, made of 100% cotton, unbleached and not dyed, elasticated, especially good for protecting sensitive skin.
1000 V insulating mat, 1000 x 1000 x 4 mm
Protective mats for electrical switching rooms, tested in accordance with DIN EN 61111, resistant against weather, ozone, light, acid, oil and fire (UL 94 V-0). Mats 3 mm thick possess a dielectric strength compliant with voltage protection class 0 (1000 V), made of grey polymer (Shore A hardness 65° approx.), rupture strength > 10 N/mm , elongation at breaking point > 600%, high-quality rough surface (ribbed) to prevent slipping, abrasive wear < 300 mm, temperature-resistant from –30 °C to +70 °C. Mats are free of nitrosamines and polycyclic aromatic hydrocarbons in compliance with EU 1272/2013.

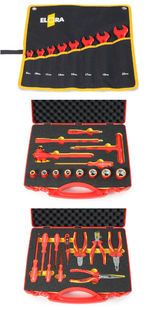

This VDE tool set contains the optimum selection of tools for any type of work on hybrid or electric vehicles. The fact that all these products have been developed and manufactured in Germany means that they meet the highest safety standards and comply with all essential German standards. The collection of tools comprises three separate toolsets with appropriate storage.
VDE reversible ratchet spanner
VDE T-handle spanner
2x VDE extensions
8x VDE hex socket spanner heads

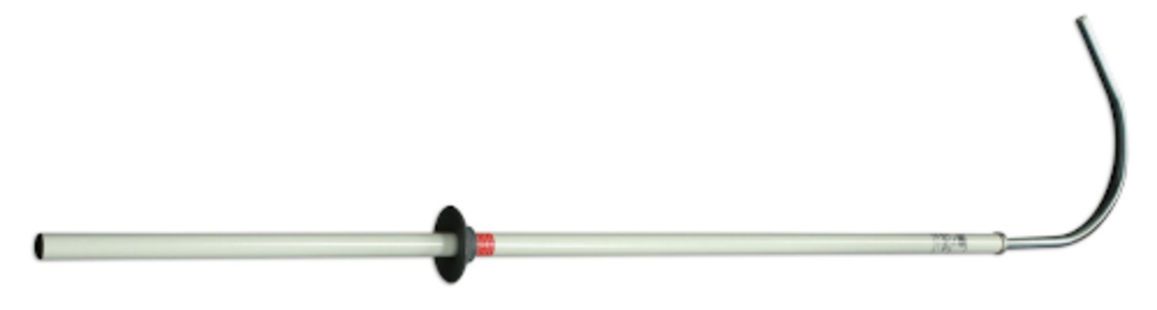

Fiberglass pole (1,65 m) suitable for rescuing persons from the danger area in the event of electrical accidents. For indoor and outdoor use, but not for rainfall. One-piece rescue pole. Glass fibre / polyester resin tube with hand limiting disc. Bridging-safe and permanently mounted rescue hook. Rescue of persons up to a weight of 150 kg (330 lbs). Torque test (hook): 30 Nm. Supplied with wall bracket.
Customer satisfaction and the success of the earlier MODIS were motivation enough to make the best even better. That is why all the existing functions have been redesigned, made simpler and further optimised. There is more functionality, a faster operating system and a bigger 8“ colour touch screen. That means that the PDL 5500 has not merely been restyled but completely reconceived.
The inexpensive SUN PDL 5500 multi-function equipment is an unusual combination of tried and trusted technology with ease of use, tailored to the everyday needs of modern vehicle repair shops. The SUN PDL 5500 only needs 5 seconds to boot and displays fault codes and live data within 30 seconds. A guided Fast-Track® component test for easy location of faults is also built in. Rapid comparison between component faults ensures certainty and clarity in seeking out faults.

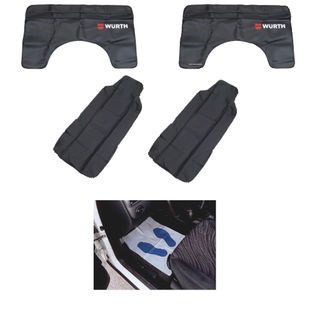

This set contains high-quality protectors from "Würth" for working on vehicles. The mudguards, seats and the footwell are optimally protected by the set, so that the danger of damage during the activity on the vehicle is immensely reduced.
