F2403
Part No.: MPFF-IoT-WL-F2403
This is a F2X03 Cellular IP MODEM is a kind of cellular terminal device that provides SMS and CSD function by public network.
產品介紹
F2403 WCDMA/HSDPA/HSUPA IP Modem
- WCDMA/HSDPA/HSUPA Network
- Support APN/VPDN
- Support auto recovery mechanism
- Support multi online trigger ways, including SMS, ring and data
- Support 5 data centers at the same time
- RS232/RS485/RS422 port
- Support double data centers, one main and another backup
- Provide management software for remote management
Features
Reliable Network and Data Transparent Communication
High performance industrial grade wireless module, and highly stable and high accuracy component
Suitable for high temperature and cold environment, Support data transparent transmission, and is suitable for any standard or nonstandard user protocol
Interface

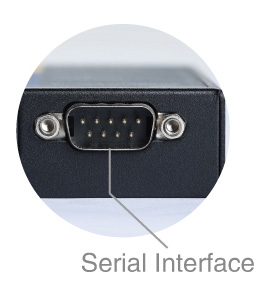

RS232/rs485 serial port, can be connected to serial device.
Wide Voltage Power Supply
5v~35v voltage, with over-voltage and over-current protection,more durable and more stable.

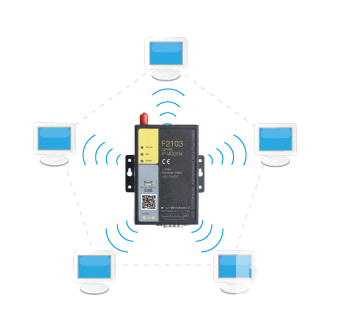

Multiple Data Center Synchronous Transmission
Support double data centers,one main and another backup.Support multi data centers and it can support 5 data centers at the same time.
Standard TCP/IP,
Designed with standard TCP/IP protocol stack
WDT
Support hardware and software WDT.

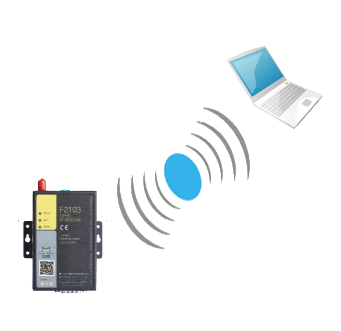

Provide management software for remote management
Convenient configuration and maintenance interface
Reference
F2403 WCDMA IP MODEM
| Item | Content |
|---|---|
|
Standard and Band |
UMTS/WCDMA/HSDPA/HSUPA/HSPA+ 850/1900/2100MHz,
850/900/1900/2100MHz(optional)
GSM 850/900/1800/1900MHz
GPRS/EDGE CLASS 12
|
| Bandwidth |
DC-HSPA+: Download speed 42Mbps, Upload speed 5.76Mbps
HSPA+: Download speed 21Mbps, Upload speed 5.76Mbps
HSDPA: Download speed 7.2Mbps, HSUPA: Upload
speed 5.76Mbps
UMTS: 384Kbps
|
|
TX power |
<24dBm |
|
RX Sensitivity |
<-109dBm |
Hardware System
| Item | Content |
|---|---|
| CPU | Industrial 16/32 bits CPU |
| FLASH | 1MB(Extendable) |
| SRAM | 256KB(Extendable) |

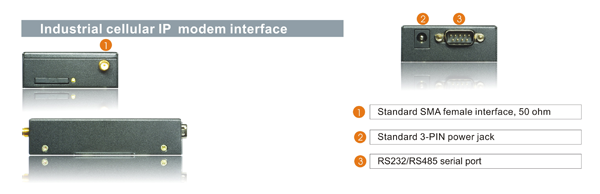

Interface Type
| Item | Content |
|---|---|
| Serial |
1 RS232 port and 1 RS485(orRS422) port, 15KV ESD protection
Data bits: 5, 6 ,7, 8
Stop bits: 1, 1.5, 2
Parity: none, even, odd, space, mark
Baud rate: 110~230400 bps
|
| Indicator | “Power”, “ACT”, "Online” |
| Antenna | Standard SMA female interface, 50 ohm, lighting protection(optional) |

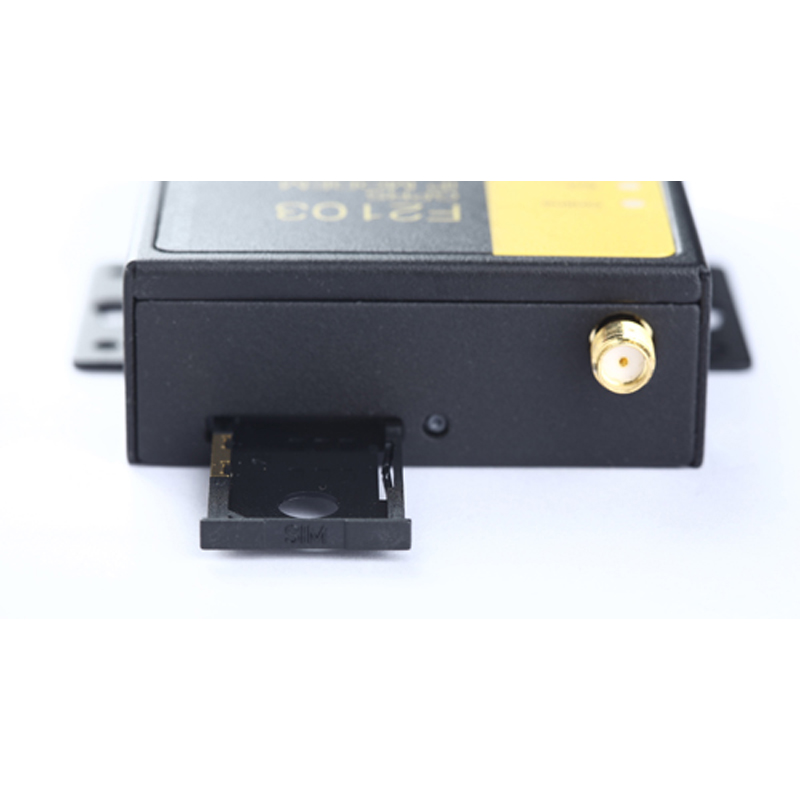

| SIM/UIM | Standard user card interface, support 1.8V/3V SIM/UIM card,15KV ESD protection built-in |
| Power | Standard 3-PIN power jack, reverse-voltage and over voltage protection |
 |
|
| Note: There may be different components and interfaces in different model,please in kind prevail. | |
Power Supply
| Item | Content |
|---|---|
| Standard Power | DC 12V/0.5A |
| Power Range | DC 5~35V |
Consumption
|
Working Condition |
Consumption |
|---|---|
| Standby | 3G:40~55mA@12VDC 2G:36~40mA@12VDC |
| Communication | 3G:88~190mA@12VDC 2G:62~68mA@12VDC |
Physical Characteristics
| Item | Content |
|---|---|
| Housing | Iron, providing IP30 protection |
| Dimensions | 91x58.5x22 mm |
| Weight | 205g |
Environmental Limits
| Item | Content |
|---|---|
|
Operating Temperature |
-25~+65ºC（-13~+149℉） |
|
Extended Operating Temperature |
-30~+75ºC（-22~+167℉） |
|
Storage Temperature |
-40~+85ºC（-40~+185℉） |
|
Operating Humidity |
95% |
Ordering Information
| Model No. | Description |
|---|---|
| F2103 | GPRS IP MODEM |
| F2203 | CDMA IP MODEM |
| F2403 | WCDMA IP MODEM |
| F2603 | EVDO IP MODEM |
