F2X16
Part No.: MPFF-IoT-WL-F2116-GPRS
MPFF-IoT-WL-F2216-CDMA
MPFF-IoT-WL-F2416-WCDMA
MPFF-IoT-WL-F2616-EVDO
MPFF-IoT-WL-F2716-TDD-LTE
MPFF-IoT-WL-F2816-FDD-LTE
MPFF-IoT-WL-F2A16-LTE
This is a F2X16 Data Terminal Unit that provides data transfer function by public 3G 4G network
產品介紹

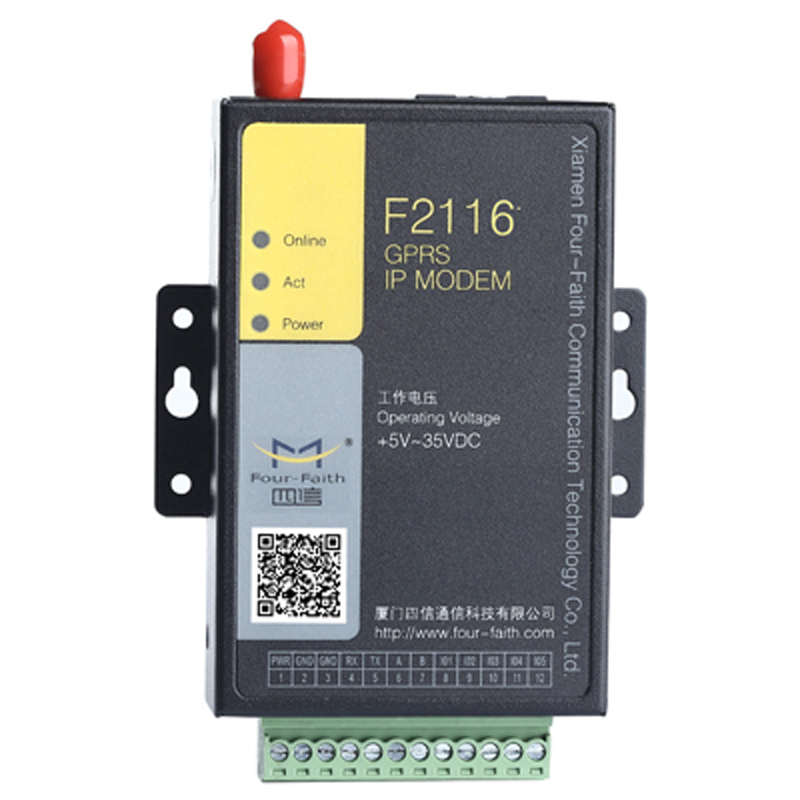

F2X16 3G/4G Data Terminal Unit
- Fully Compatible with 4G/3G/2.5G Network
- Ultra-Low Power Consumption
- Integration Terminal Data Transparent Transmission
- Save the Data Flow,Support Multiple Trigger Ways
- SMS Backup
- Remote Configuration, Upgrade and Maintenance, Greatly Improve Management Efficiency
- Providing Much More Safe Deployment Plans, Data Transmission Reaching Financial Level.
Features
| Model No. | Type | Serial | Dimensions |
|---|---|---|---|
| F2116 | GPRS IP MODEM(GPRS DTU) | 2 RS232, 1RS485, 1 ADC, 2 I/O | 91 x 58.5 x 22 mm |
| F2216 | CDMA IP MODEM (CDMA DTU) | 2 RS232, 1RS485, 1 ADC, 2 I/O | 91 x 58.5 x 22 mm |
| F2416 | WCDMA IP MODEM (WCDMA DTU) | 2 RS232, 1RS485, 1 ADC, 2 I/O | 91 x 58.5 x 22 mm |
| F2616 |
EVDO IP MODEM (3G DTU)
|
2 RS232, 1RS485, 1 ADC, 2 I/O | 91 x 58.5 x 22 mm |
| F2716 | TDD-LTE IP MODEM (4G DTU) | 2 RS232, 1RS485, 1 ADC, 2 I/O | 91 x 58.5 x 22 mm |
| F2816 | FDD-LTE IP MODEM (4G DTU) | 2 RS232, 1RS485, 1 ADC, 2 I/O | 91 x 58.5 x 22 mm |
| F2A16 | LTE IP MODEM | 2 RS232, 1RS485, 1 ADC, 2 I/O | 91 x 58.5 x 22 mm |
Ultra-Low Power Consumption
Using multi-level sleep and wake-up mode. The power consumption at mode of working, standby , and sleep [sleep consumption <5mA] are lower than similar products in the industry, show evident advantage in the situation when inconvenient to get powered.
First Choice for Integration Terminal Data Transparent Transmission
This is a Data Transmission Terminal support APN transmission or Virtual VPDN transmission, fully guarantee the data transmission security and accuracy and avoid any information reveal.
Fully Compatible with 4G/3G/2.5G Network
All models fully compatible with all 4G/3G/2.5G communication network, make more options for clients' project construction. The speed of transmission increase 5 times than former terminal, which enable the big data faster.
Save the Data Flow
Support multiple trigger ways, including SMS, ring, and serial port data trigger online or offline mode, can reduce the power consumption effectively and avoid the waste of data flow consumption.
SMS Backup
When online wireless network signal or center network fail to work, it can automatic switch into GSM and to send or receive data (data and SMS are back-up for each other, switch freely).
Providing much more safer deployment plans, data transmission reaching financial level
This is a data terminal supports APN/VPDN private network. Add an encryption form data transmission base on private network, to completely ensure the security of transaction and management data.
Remote configuration, upgrade and maintenance, greatly improve management efficiency
All the communication terminals can connect this matched remote control platform , and to centralize monitoring, configuration, upgrade, diagnosis, maintenance and control a large number of different areas devices. Help all parties include operator, integrator, device suppliers, etc., to reduce the maintenance cost greatly and also improve management efficiency.
