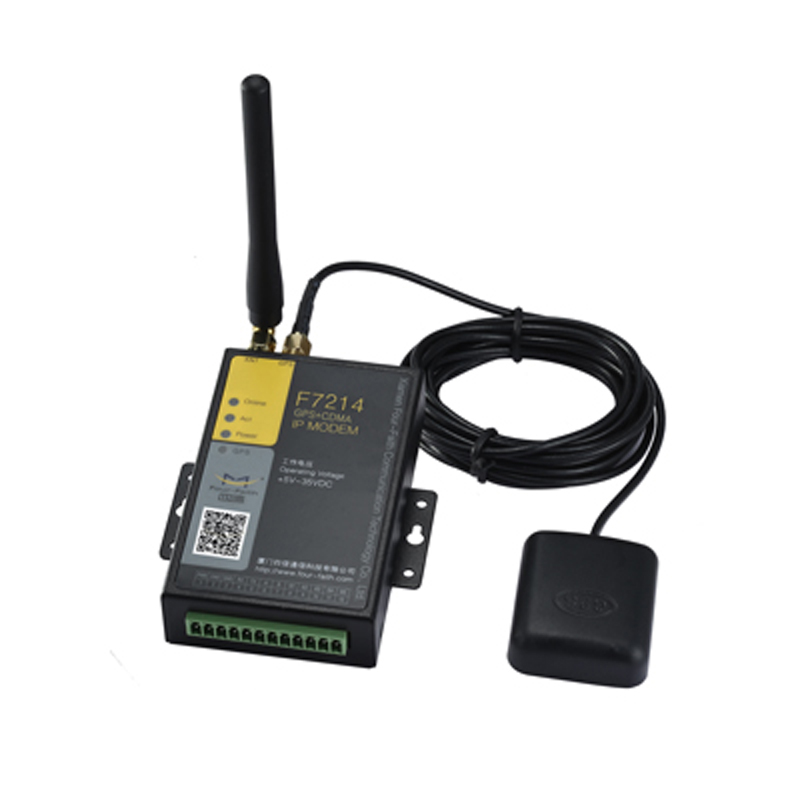

F7214 GPS + CDMA IP MODEM
- Support GPS
- Provide GPRS Point-to-Point solution, eliminating the inconvenient of wiring and low cost of installation.
- It allows to be connected to your remote RS232 serial equipments.
- Support network auto-connecting, it can automatically restore the connection to ensure user data integrity under any condition.
- With simple configuration makes user instantly configure without extra programming needed.
- An embedded Watchdog circuit is provided to avoid equipment shutting down.
- An embedded powerful TCP/IP protocol stack.
- Customized products are available to meet with customer's special demands.
Features
Low Consumption Design
Support multi-sleep and trigger modes to save power consumption
Supply 5 I/O
Compatible 2 pulse wave output channels,2 analog inputs and one pulse input counter
Multiple Online/Offline Trigger Modes
Support several online trigger ways,including SMS,ring and data,support link disconnection when timeout
Suppot SMS Backup
Modem will switch to SMS state to send the data by SMS when GPRS/3G Internet is down or data center is off. Modem can switch back to communication state from SMS state when GPRS/3G Internet or data center recovers.。
Support Real-time on/off Line
The power consumption is less than 1mA in scheduled power off mode
Support APN/ VPDN network
Improve the security of data transmission.
Provide management software for remote management
Convenient configuration and maintenance interface
Reference
Cellular Specification
| Item | Content |
|---|---|
|
Cellular Module |
Industrial cellular module |
|
Standard and Band |
CDMA2000 1xRTT 800MHz,
800/1900MHz(optional),450MHz(optional)
|
| Bandwidth | 153.6Kbps |
| TX Power |
<30dBm
|
|
RX Sensitivity |
<-104dBm |
GPS Specification
| Item | Content |
|---|---|
| GPS Module | Industrial GPS Module |
| Receiver Type |
50 Channels
GPS L1（1575.42MHz）C/A Code
SBAS:WAAS，EGNOS，MSAS，GAGAN
Compatible: GALILEO
|
|
Maximum Navigation Update Rate |
4 Hz |
|
Horizontal Position Accuracy |
Autonomous：2.5m CPE
SBAS：2.0m CPE
|
|
Time-To-First -Fix |
Cold Start(Autonomous)：29S
Warm Start(Autonomous)：29S
Aided Starts：<1S
Hot Starts(Autonomous)：<1S
|
| Sensitivity |
Tracking & Navigation：-160dBm
Reacquisition：-160dBm
Cold Start(Autonomous)：-144dBm
|
|
Timing Accuracy |
RMS：30ns
99%：<60ns
Granularity：21ns
|
|
Time Pulse Frequency |
Configurable 0.25Hz to 1000Hz |
Hardware System
| Item | Content |
|---|---|
| CPU | Industrial 32 bits CPU |
| FLASH | 512KB (Extendable) |
| SRAM | 256KB(Extendable) |
Interface Type
| Item | Content |
|---|---|
| Serial |
1 RS232 port and 1 RS485(orRS422) port, 15KV ESD protection
Data bits: 5, 6 ,7, 8
Stop bits: 1, 1.5, 2
Parity: none, even, odd, space, mark
Baud rate: 110~230400 bps
|
| Indicator | "Power", "ACT", "Online", "GPS" |
| Antenna |
Cellular: Standard SMA female interface, 50 ohm, lighting
protection(optional)
GPS: Standard SMA female interface, 50 ohm, lighting
protection(optional) |
| SIM/UIM | Standard 3V/1.8V user card interface, 15KV ESD protection |
| Power | Terminal block interface, reverse-voltage and overvoltage protection |
Power Input
| Item | Content |
|---|---|
|
Standard Power |
DC 12V/0.5A |
|
Power Range |
Power Consumption
|
Working States |
Power Consumption |
|---|---|
| Communication | 50-85mA@12VDC；115-160mA@5VDC |
| Standby | 25mA@12VDC；45mA@5VDC |
| Sleep | 8mA@12VDC；18mA@5VDC |
|
Timing Power Off |
0.6mA@12VDC；1mA@5VDC |
Physical Characteristics
| Item | Content |
|---|---|
| Housing | Iron, providing IP30 protection |
| Dimensions | 91x58.5x22 mm |
| Weight | 210g |
Environmental Limits
| Item | Content |
|---|---|
|
Operating Temperature |
-25~+65ºC (-13~+149℉) |
|
Extended Operating Temperature |
-30~+75ºC (-22~+167℉) |
|
Storage Temperature |
-40~+85ºC (-40~+185℉) |
|
Operating Humidity |
95% ( unfreezing) |
