CS1030
Part No.: MPCS-CS1030

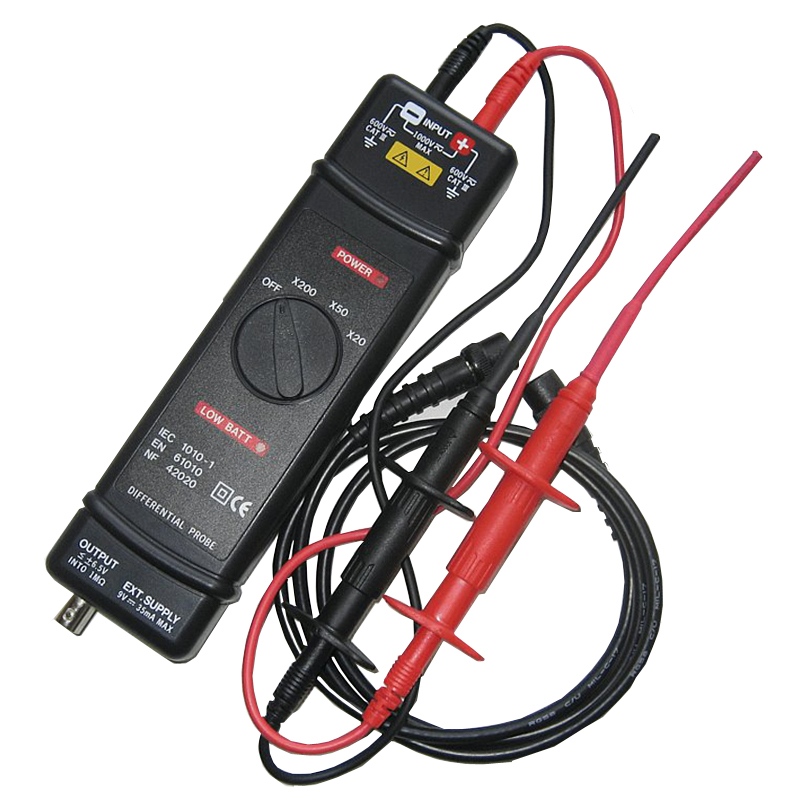

This is a switchable x20, x50 and x200 25 MHz differential probe for making isolated measurements between any two points in a system.
產品介紹
CS1030
Differential Probe. 25 MHz bandwidth, 1300V maximum operating voltage, three ranges x20, x50 and x200. These multipliers are default values in the Control Panel.
The CS1030 Differential probe is a switchable x20, x50 and x200 25 MHz differential probe for making isolated measurements between any two points in a system.
Specifications:
| Item | Position x 20 | Position x 50 | Position x 200 | |
|---|---|---|---|---|
| Attenuation - 1MΩ | 20:1 | 50:1 | 200:1 | |
| Attenuation - 50Ω | 40:1 | 100:1 | 400:1 | |
| Bandwidth | DC to 15 MHz | DC to 25 MHz | DC to 25 MHz | |
| Working Voltage | 140V | 350V | 1300V | |
| Input Impedance |
4 MΩ 1.2 pF between inputs
2 MΩ 2.3 pF between inputs and ground
|
|||
| Max Diff Voltage | 1300V (DC +peak AC) | |||
| Max V to Ground | 1000 V (DC +peak AC). | |||
| Output Impedance | 50Ω | |||
| Noise | 2 mV rms into 50Ω load | |||
| CMRR |
50/60Hz:
100Hz:
1MHz:
|
>10,000:1 >1,000:1 >300:1 |
||
| Safety | Meets IEC1010-1 Cat 1. EN61010, UL3111 | |||
| Power | One internal 9V PP3 battery or external 6-9V DC. | |||
| Size | 200 x 55 x 30 mm (plastic case) | |||
| Weight | 245 gm (plastic case) | |||
| Cable Length | 1 m | |||
Accessories that are included with the differential probe are:Carry Bag, Instruction Manual, Large Crocodile Clips, Long Grabber Clips, Test leads, BNC-BNC cable, Power supply
