CS1041

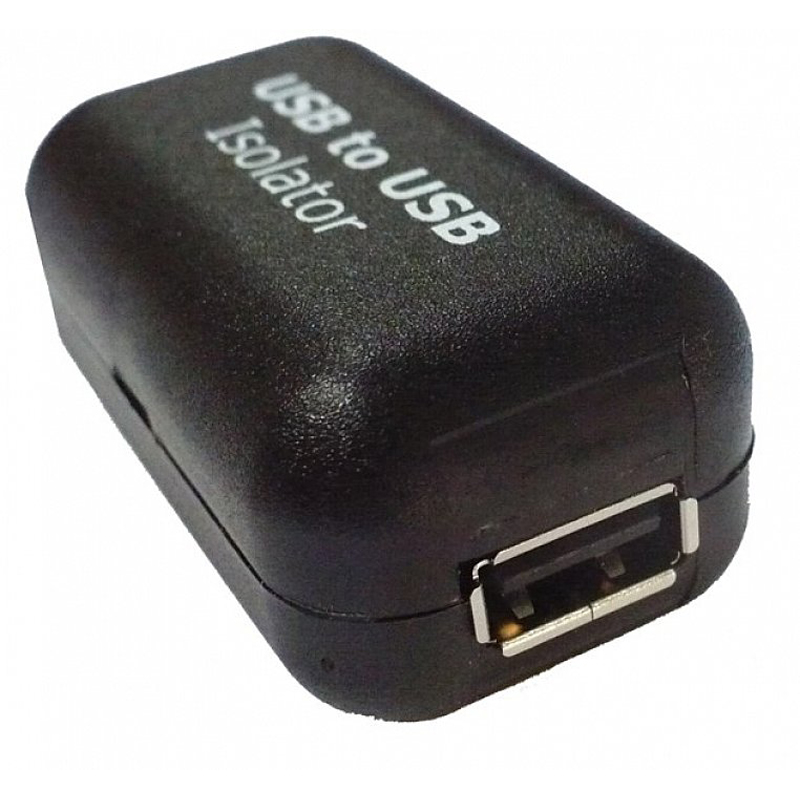

USB-to-USB Isolator protects your PC or Laptop while connecting USB peripherals wired to high voltages. This small, industrial- grade isolator is very easy for use and provides a high-voltage barrier for protection against surges, noise and ground loop errors. It is suitable for use in sensitive applications such as automotive measurements.

• Ultra compact
• Self-powered through the USB port
• Bidirectional communication
• Fully USB 2.0 compatible
• Full speed data rate 12 Mbps
• No drivers or configuration required
• Uses standard USB Type A and Type B connectors
• Isolated power supply in device through a DC-to-DC converter
• Output short circuit protection
• Short-circuit protection for D+ and D- lines
• High common-mode transient immunity: >25 kV/µs
• USB and power supply isolation 2000V DC between primary and secondary side
• Isolates and protects a USB peripheral from a USB host
• Robust isolating housing with countersunk USB ports against direct touching
