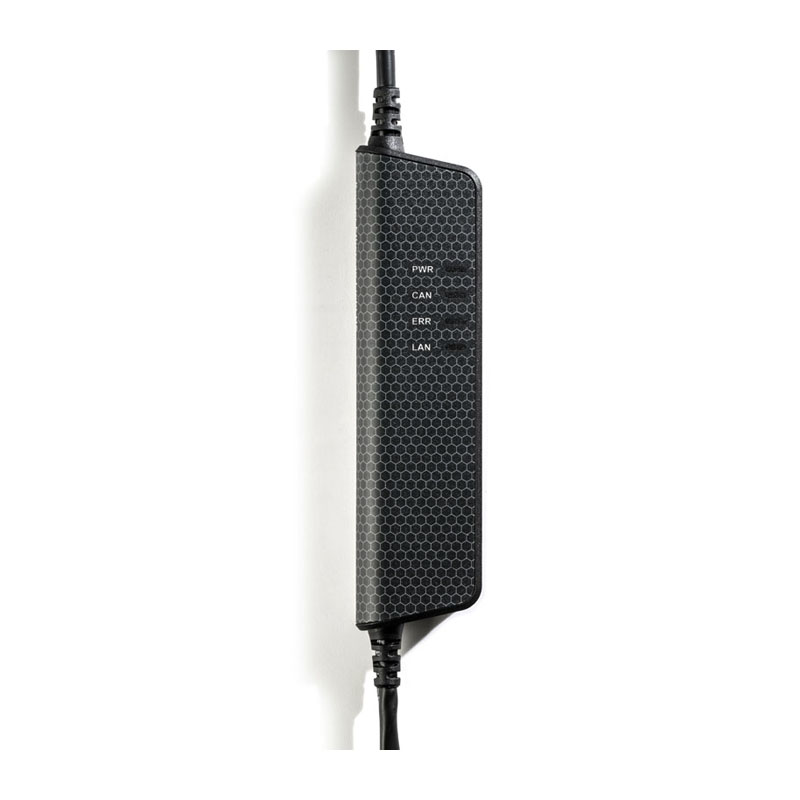

Ethercan makes it easy to implement the Internet of Things (IoT) concept by enabling data from any CAN product or system to be sent over a corporate network or the Cloud, using the standard Kvaser API. The Kvaser Ethercan device can be configured with a static IP and comes with an Ethercan Factory Reset Device to reset the configuration to factory default DHCP settings at the push of a button.


Major Features

• High-speed CAN connection (compliant with ISO 11898-2), up to 1 Mbit/s.
• Ethernet connection has auto-MDIX, so it automatically detects and adjusts for the  Ethernet cable being used.
• Built-in Power over Ethernet (PoE) - receives data and power over the  Ethernet cable.
• Small, lightweight plastic housing with galvanic isolation.
• Fully compatible with J1939, CANopen, NMEA 2000R and DeviceNet.

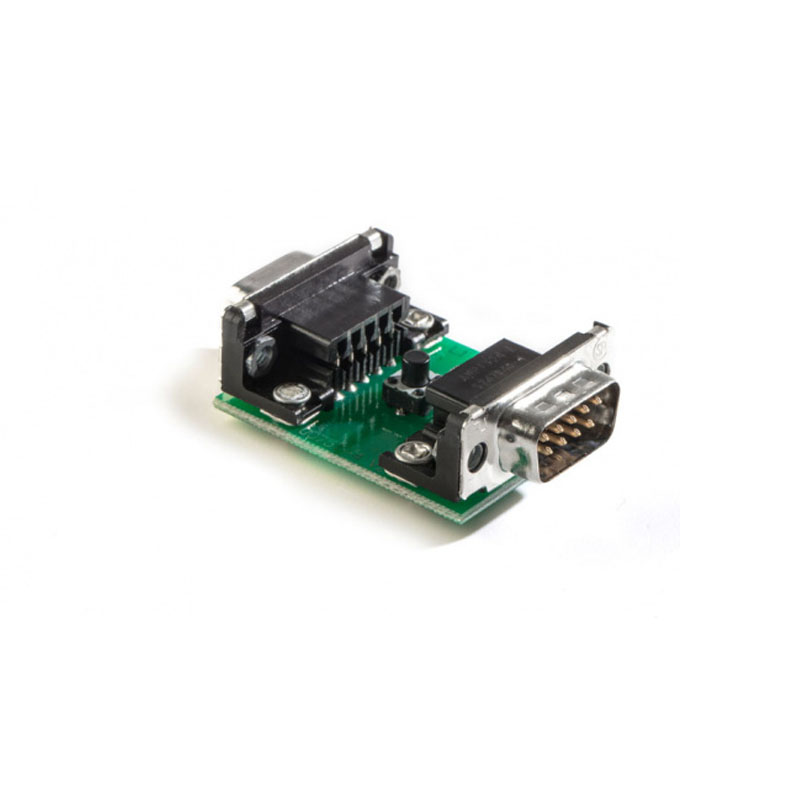

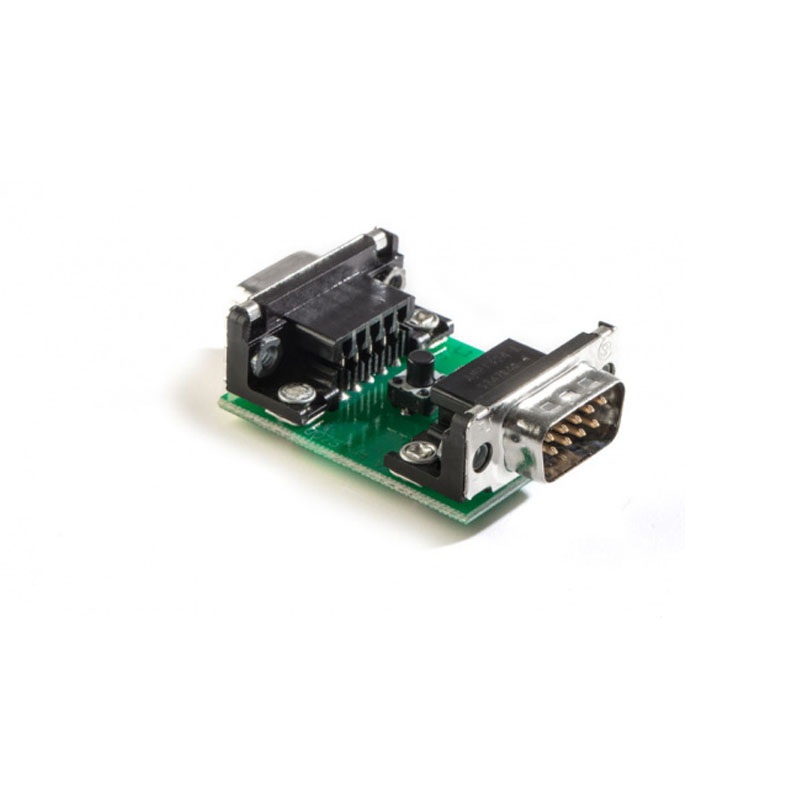

• Includes Ethercan Factory Reset Device. This device provides the ability to reset the Ethercan's IP address to factory defaults at the push of a button.

Software

• Documentation, software and drivers can be downloaded for free at www.kvaser.com/downloads.
• Kvaser CANLIB SDK is a free resource that includes everything you need to develop software for the Kvaser CAN interfaces. Includes full documentation and many program samples, written in C, C++, C#, Delphi, and Visual Basic.
• All Kvaser CAN interface boards share a common software API. Programs written for one interface type will run without modifications on the other interface types!
• J2534 Application Programming Interface available.
• RP1210A Application Programming Interface available.
• On-line documentation in Windows HTML-Help and Adobe Acrobat format.
