PCAN-ExpressCard 34
Part No.: MPPK-IPEH-003004

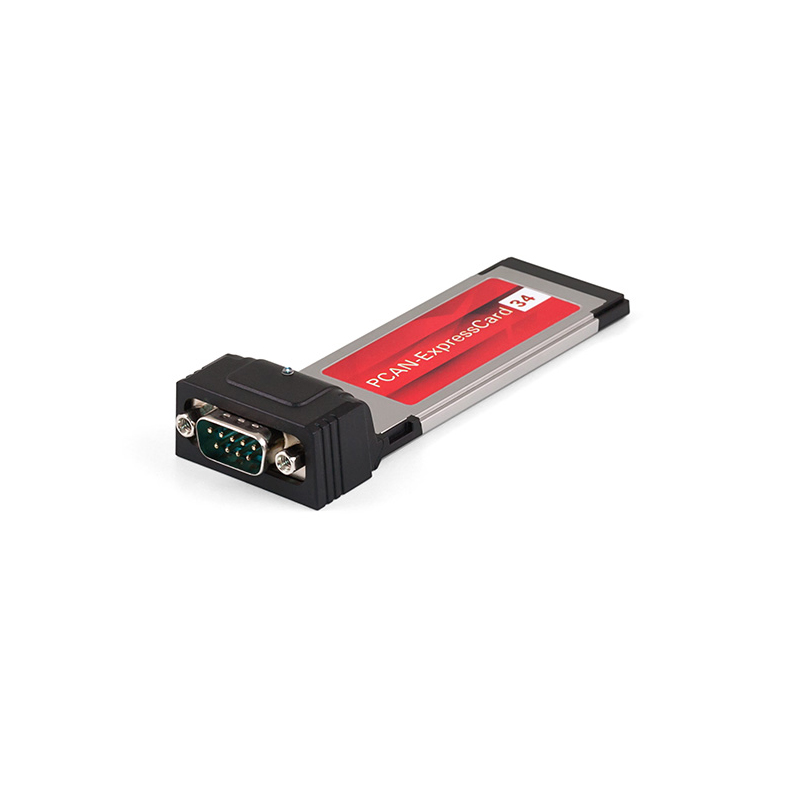

The CAN adapter PCAN-ExpressCard 34 allows the connection of a CAN bus to embedded PCs and laptops with ExpressCard slots.
*標高電子為德商PEAK SYSTEMS台灣唯一代理商。
產品介紹
Description
The CAN adapter PCAN-ExpressCard 34 allows the connection of a CAN bus to embedded PCs and laptops with ExpressCard slots. A galvanic isolation of up to 300 Volts decouples the PC from the CAN bus.
The package is also supplied with the CAN monitor PCAN-View for Windows® and the programming interface PCAN-Basic.
Specification
- Card for the ExpressCard slot
- Type ExpressCard/34 (compatible with ExpressCard/54 slots)
- High-speed CAN connection (ISO 11898-2)
- Bit rates from 5 kbit/s up to 1 Mbit/s
- Compliant with CAN specifications 2.0A (11-bit ID) and 2.0B (29-bit ID)
- CAN bus connection via D-Sub, 9-pin (in accordance with CiA® 303-1)
- FPGA implementation of the CAN controller (SJA1000 compatible)
- NXP PCA82C251 CAN transceiver
- Galvanic isolation on the CAN connection up to 300 V
- Extended operating temperature range from -40 to 85 °C (-40 to 185 °F)
|
PIN
|
PIN Assigmnet
|
|---|---|
|
1
|
Not connected
|
|
2
|
CAN-L
|
|
3
|
GND
|
|
4
|
Not connected
|
|
5
|
Not connected
|
|
6
|
GND
|
|
7
|
CAN-H
|
|
8
|
Not connected
|
|
9
|
Not connected
|
Product Includes...
- PCAN-ExpressCard 34 CAN interface
- Device drivers for Windows® 11 (x64), 10 (x64), and Linux
- CAN monitor PCAN-View for Windows®
- Programming interface PCAN-Basic for developing applications with CAN connection
- Programming interfaces for standardized protocols from the automotive sector
- Manual in PDF format
