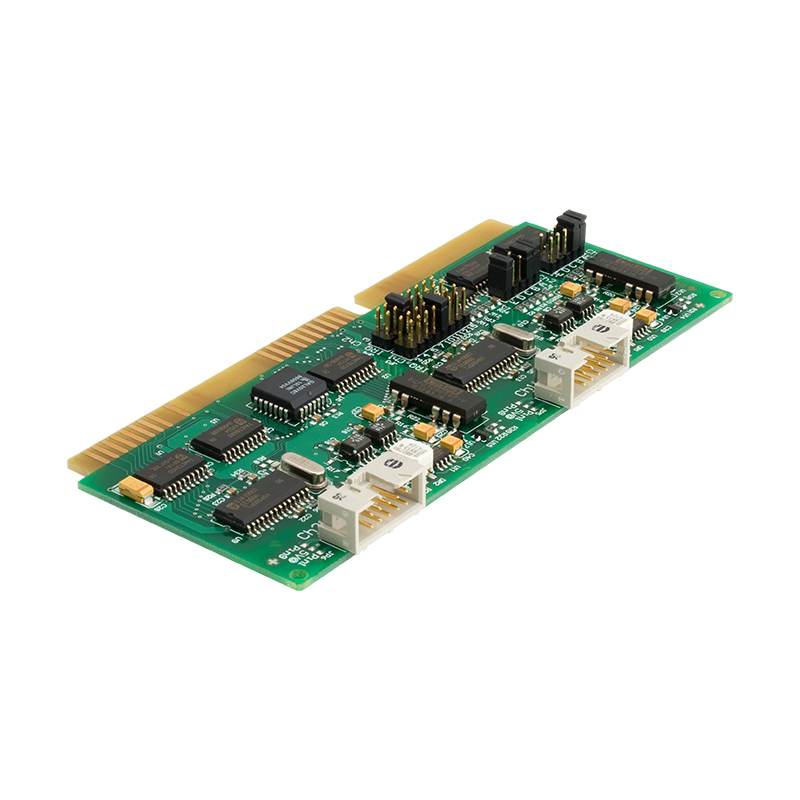

PCAN-ISA
Part No.: MPPK-IPEH-002077 (Dual Channel opto-decoupled)
The PCAN-ISA card enables simple, cost-effective connection of computer systems with ISA slots to CAN networks.
*標高電子為德商PEAK SYSTEMS台灣唯一代理商。
產品介紹
Description
The PCAN-ISA card enables simple, cost-effective connection of computer systems with ISA slots to CAN networks. Multiple PCAN-ISA cards can easily be operated using interrupt sharing.
The card is available as a single or dual-channel version. The opto-decoupled versions also guarantee galvanic isolation of up to 500 Volts between the PC and the CAN sides.
The package is also supplied with the CAN monitor PCAN-View for Windows® and the programming interface PCAN-Basic.
Specification
- PC plug-in card for 16-bit ISA slots
- Multiple cards can be operated in parallel in a single PC (interrupt sharing)
- 13 port and 8 interrupt addresses are available for configuration using jumpers
- 1 or 2 High-speed CAN channels (ISO 11898-2)
- Bit rates from 5 kbit/s up to 1 Mbit/s
- Compliant with CAN specifications 2.0A (11-bit ID) and 2.0B (29-bit ID)
- Connection to CAN bus through D-Sub slot bracket, 9-pin (in accordance with CiA® 303-1)
- NXP SJA1000 CAN controller, 16 MHz clock frequency
- NXP PCA82C251 CAN transceiver
- 5-Volt supply to the CAN connection can be connected through a solder jumper, e.g. for external bus converter
- Galvanic isolation on the CAN connection up to 500 V, separate for each CAN channel (only for IPEH-002076 and IPEH-002077)
- Extended operating temperature range from -40 to 85 °C (-40 to 185 °F)
|
PIN
|
PIN Assigmnet
|
|---|---|
|
1
|
Not connected / optional +5V
|
|
2
|
CAN-L
|
|
3
|
GND
|
|
4
|
Not connected
|
|
5
|
Not connected
|
|
6
|
GND
|
|
7
|
CAN-H
|
|
8
|
Not connected
|
|
9
|
Not connected / optional +5V
|
Product Includes...
- PCAN-ISA card
- Slot bracket with D-Sub connectors for the CAN bus
- Device drivers for Windows® 10 (x86) and Linux
- CAN monitor PCAN-View for Windows®
- CAN monitor PCAN-View for DOS
- Programming interface PCAN-Basic for developing applications with CAN connection
- Programming interfaces for standardized protocols from the automotive sector
- Manual in PDF format
