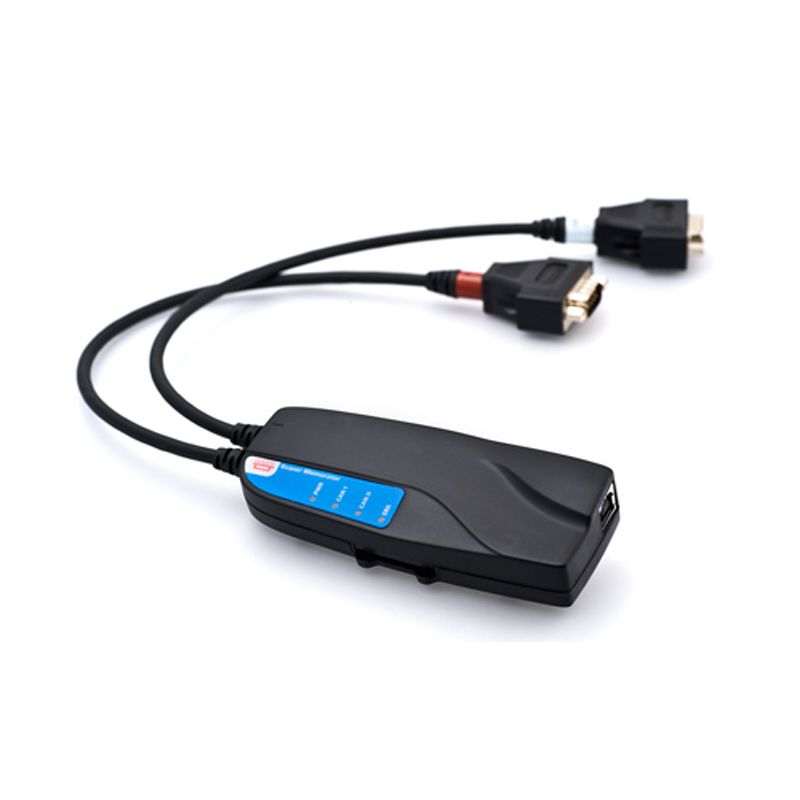

Kvaser Memorator HS/SWC is a dual channel, intermediate performance, CAN (controller area network) bus interface and standalone datalogger. This device has one CAN channel for High-Speed CAN and the second for Single-Wire CAN. In interface mode, it connects to a PC with USB1.1. As a data logger, Memorator makes for a perfect flight recorder due its compact design. Logging data to a standard SD card (supplied) or MMC disk; triggers, filters etc. can be set via our user-friendly configuration program and stored on the flash disk.

Major Features

• One device for desktop and laptop. Quick and easy plug-and-play installation.
• Supports both 11-bit (CAN 2.0A) and 29-bit (CAN 2.0B active) identifiers.
• CAN messages are time-stamped with 10 microseconds resolution.
• Large on-board RAM buffer for CAN messages.
• Supports "listen-only" mode for bus analysis tools.
• Driver support for major operating systems.
• 100% compatible with applications written for Leaf, LAPcan, PCIcan, PCcan and USBcan with Kvaser's CANlib.
• One SD/MMC slot that accepts SD or MMC flash disks, currently up to 1 GB.
• One CAN connection ISO-11898 high-speed, 50kbit/s up to 1 Mbit/s (Philips TJA1050), plus second single-wire CAN connection.
• One USB 1.1 connection (12 Mbit/s). This connection is compatible with USB 2.0.
• Power from CAN bus or from the USB side.
• Built-in real time (calendar) clock with battery backup.
• Logger status is indicated with four externally visible LEDs.
• Plastic housing with dimension WLH about 509025 mm (circa 2 x 3,5 x 1 inch).
• NOTE:  Product ships with Commercial Grade SD card (-20 to +70°C).  Industrial Grade SD cards (-40 to +85°C) are available for additional purchase.  Contact your local Kvaser office for details.

Software

• Documentation, software and drivers can be downloaded for free at www.kvaser.com/downloads.
• Kvaser CANLIB SDK [link} is a free resource that includes everything you need to develop software for the Kvaser CAN interfaces. Includes full documentation and many program samples, written in C, C++, C#, Delphi, and Visual Basic.
• All Kvaser CAN interface boards share a common software API. Programs written for one interface type will run without modifications on the other interface types!
• J2534 Application Programming Interface available.
• RP1210A Application Programming Interface available.
• On-line documentation in Windows HTML-Help and Adobe Acrobat format.

Functions in Kvaser Memorator:

Triggers

• Kvaser Memorator can log continuously, or logging can be triggered by external triggers (rising or falling edge) and/or by messages and signals on the CAN bus (triggered by identifier, or data contents.) Pre- and post-triggers are available.

Filters

• To enhance logging performance, Kvaser Memorator can filter out selectable messages to be logged. The identifiers can be picked from a database, or all messages can be logged.

Memory cards

• Standard MMC or SD type flash memory cards can be used. Larger memory cards, up to 1 GB, can be used. See our support pages for more information.

Configuration software in the PC:

• Configuration of the CAN controller, i.e. bit rate and filters.
• Configuration of the trigger conditions.
• Configuration of filter for messages to be stored.
• Configuration upload and download via USB.

Specifications
