PCAN-AU5790
Part No.: MPPK-IPEH-002040
Bus Converter High-speed CAN to Single-wire CAN
*標高電子為德商PEAK SYSTEMS台灣唯一代理商。
產品介紹
Description

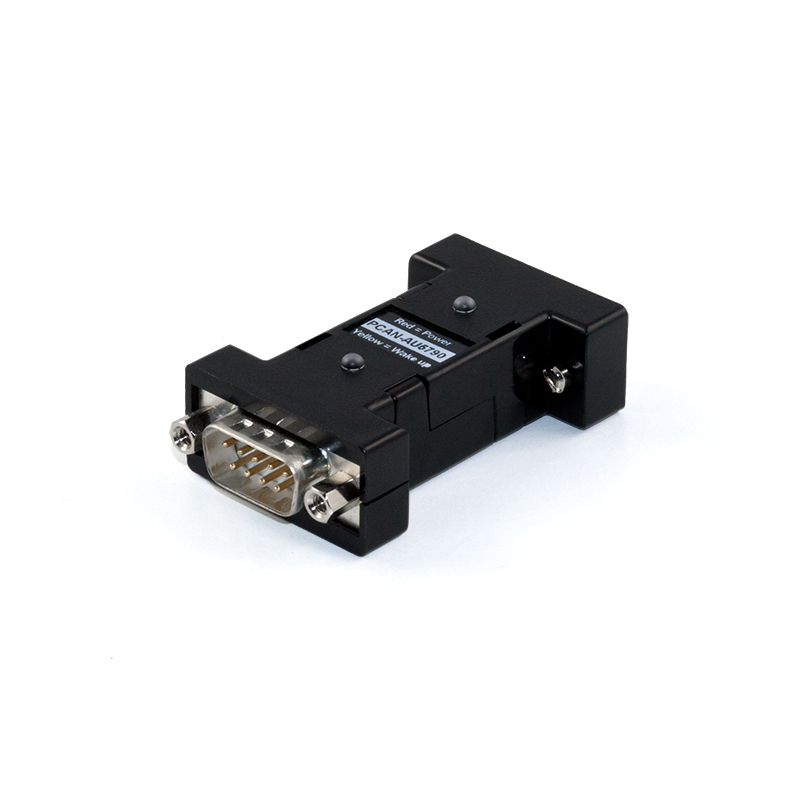

The PCAN-AU5790 bus converter establishes a connection between a High-speed CAN bus (ISO 11898-2) and a Single-wire CAN bus (SAE J2411). One of the most important potential applications of the bus converter is a simple connection between a PEAK CAN interface (e.g. PCAN-USB) and a Single-wire CAN bus.
Technical Specifications
- There are three different operating modes for the SW-CAN side which can be set using a sliding switch. Normal (33.3 kbit/s), High-speed (83.3 kbit/s) and Wake-up
- Indicator LEDs for power supply (red) and wake-up signals (yellow)
- 5-Volt power supply (150 mA) through HS-CAN connection (a current list of PEAK CAN interfaces with suitable supply voltage is available on request)
- If the power supply has a current output lower than 150 mA, an additional 12-Volt supply is needed via the SW-CAN connector
- Operating temperature range from 0 to 70 °C (32 to 158 °F)
Pin Assignment Female D-Sub Connector
|
PIN
|
PIN Assigmnet
|
|---|---|
|
1
|
5V Power supply
|
|
2
|
CAN-L
|
|
3
|
GND
|
|
6
|
GND
|
|
7
|
CAN-H
|
|
9
|
Not connected / optional +5V
|
Pin assignment Male D-Sub Connector
|
PIN
|
PIN Assigmnet
|
|---|---|
| 3 |
GND
|
|
5
|
CAN
|
|
6
|
GND
|
|
9
|
VBAT
|
Product Includes...
- Adapter in plastic casing
- 2. Manual in PDF format
1. Prices and Specifications are subject to change without notice
