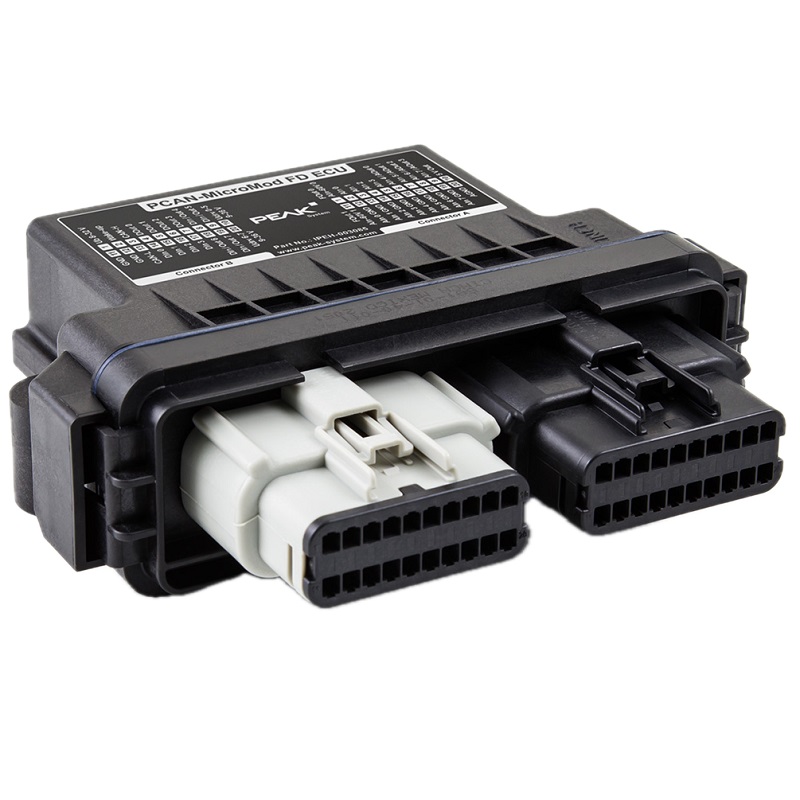

PCAN-MicroMod FD ECU

Part No.: MPPK-IPEH-003085
Universal, Configurable Control Unit with I/O and CAN FD Connection

產品介紹

Description

The PCAN-MicroMod FD ECU is a universal control unit for the integration of custom accessories in automotive applications. For this purpose, it provides a CAN FD connection as well as a mix of analog and digital I/Os. With its tough casing and two automotive connectors, it is designed for use in utility and heavy duty vehicles under harsh conditions.

PCAN-MicroMod FD products are configured with a free Windows® software. In addition to simply mapping I/Os to CAN IDs, function blocks for processing the data are also available. The configuration created on the computer is transferred via the CAN bus to the PCAN-MicroMod FD which then runs as an autonomous CAN node.



Technical Specifications

  • Module with integrated PCAN-MicroMod FD
  • High-speed CAN connection (ISO 11898-2)
    • Complies with CAN specifications 2.0 A/B and FD
    • CAN FD bit rates for the data field (64 bytes max.) from 40 kbit/s up to 10 Mbit/s
    • CAN bit rates from 40 kbit/s up to 1 Mbit/s
  • Wake-up by CAN bus or by separate input
  • 4 digital inputs
    • Pull-up or pull-down configurable
  • 8 digital outputs with High-side switches
    • 2 outputs with 5 A and 6 outputs with 2 A
    • 4 alternatively usable as a digital input or additionally for reading back the output level
  • 8 analog inputs
    • Resolution 16 bit
    • Measuring range adjustable: ±2.5 V, ±5 V, ±10 V, ±20 V
  • 4 of the analog inputs alternatively usable as analog output
    • Resolution 12 bit
    • Voltage range adjustable: 0 to 5 V or 0 to 10 V
  • 2 frequency outputs
    • Low-side switches (3 A)
    • Adjustable frequency range from 0 to 20 kHz
    • Alternatively usable as analog inputs with voltage range from 0 to 60 V
  • Connections for CAN, I/O, and power supply via two 20-pole automotive connectors (Molex MX150)
  • Plastic casing with increased Ingress Protection IP67 and flange
  • Operating voltage 8 to 32 V; suitable for use in 12 and 24 V vehicle electrical systems
  • Extended operating temperature range from -40 to +85 °C (-40 to +185 °F)
  • E1 type approval

Prodcut Includes...


  1. PCAN-MicroMod FD ECU including mating connectors (Molex MX150 A 33472-2001 black and Molex MX150 B 33472-2002 light gray)
  2. PCAN-MicroMod FD Configuration for Windows®
  3. Manual in PDF format
Note:
1. Prices and Specifications are subject to change without notice
2. The configuration requires a PEAK CAN interface.
3. Version with galvanic isolation of the CAN channel on request.
