PCAN-Explorer 6: Instruments Panel Add-in 6
Part No.: MPPK-IPES-006088
Optional Function Upgrade for the PCAN-Explorer
*標高電子為德商PEAK SYSTEMS台灣唯一代理商。
產品介紹
Description

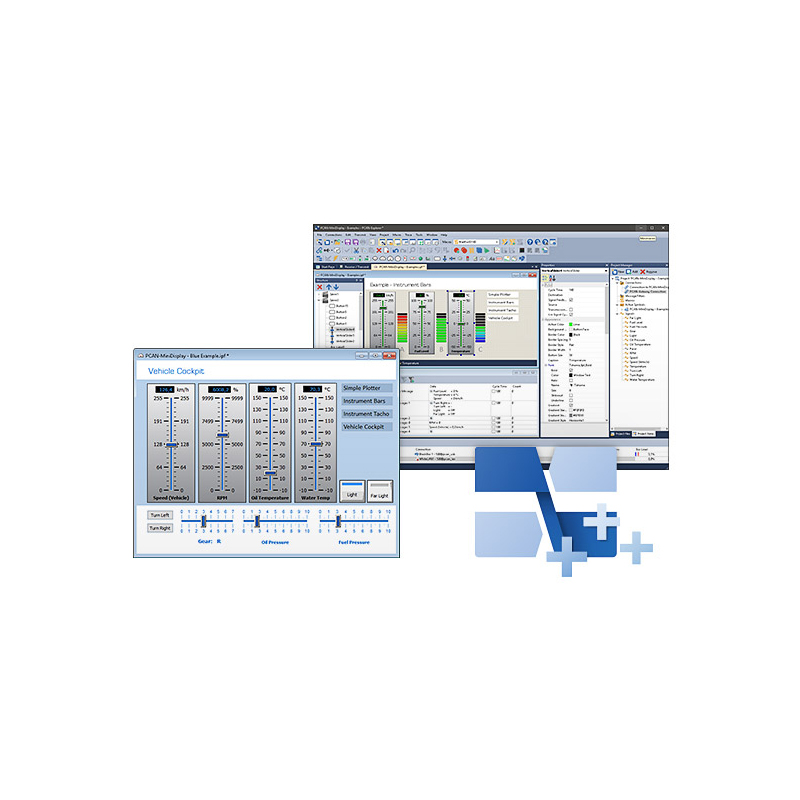

The Instruments Panel Add-in allows the graphical representation of digital and analog signals using different display instruments. The integrated input options and controllers make it possible to also generate signals on the CAN bus, allowing easy simulation of complex CAN applications.
Features
- Representation of analog and digital signals from received CAN messages using different display instruments
- In addition to potentiometers, switches, and sliding controllers, input fields can be used to generate CAN messages
- New instruments like an analog 360° gauge and a shape element for displaying squares, rectangles, circles, and ellipses
- Selection and configuration of multiple elements at the same time
- Extensive configuration of the properties of one or more elements using the property window
- The Instruments Panel object model enables complete automation using COM and scripts
- Representation of different scenes on the same panel during runtime
System Requirements
- PCAN-Explorer 6
- Windows® 10, 8.1, 7 (32/64-bit)
- At least 2 GB RAM and 1.5 GHz CPU
Product Includes...
- Instruments Panel Add-in 6 software
- Single user license
- Documentation in HTML help format
1. Software delivery on USB stick. Alternative installation media or download on request.
2. Ordering Add-ins for existing PCAN-Explorer 6 licenses:
If you order an Add-in for an existing PCAN-Explorer 6 license, we will require the corresponding license ID to process your order. Please reference your license ID in the comment field on the bottom of the checkout page.
3. Prices and Specifications are subject to change without notice.
