Description

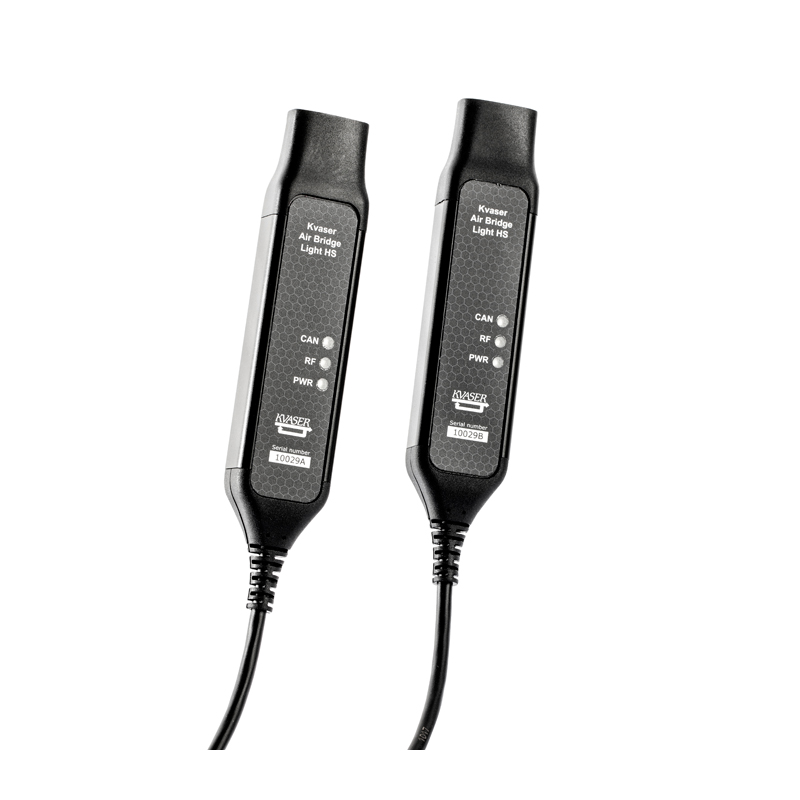

Kvaser Air Bridge Light HS is a configuration-free wireless CAN bridge with uniquely low and predictable latency compared to other wireless technologies and a highly robust signal even at long range, thanks to a proprietary 2.4GHz wireless protocol based on frequency hopping and diversity,.
Comprising a preconfigured pair of plug-and-play units, the Kvaser Air Bridge Light HS ensures the rapid exchange of CAN data in applications where a wired connection is unsuitable or challenging due to high environmental abrasion on cables and connectors.
Major features
- A preconfigured pair of units that acts as a wireless CAN bridge.
- Plug and Play, Driver Free and Configuration Free.
- Automatic Baudrate Detection (125K, 250K, 500K, 1M).
- Point to Point Radio Link.
- 2.4 GHz Proprietary Protocol.
- Internal Antenna Design, Antenna Output Power max 18 dBm approx.
- High-Speed CAN Connection (compliant with ISO 11898-2), up to 1 Mbit/s.
- Supports both 11-bit (CAN2.0A) and 29- bit (CAN 2.0B active) identifiers.
- Power Supplied through the CAN Bus Interface.
- Rugged Aluminum Housing.
Note! Error Frames and Arbitration information are not transmitted by the Air Bridge units across the wireless link.
Technical Specification
| Catergories | Cables, Interfaces, Hardware, CAN, Accessories |
|---|---|
| Certificates | CE, RoHS, FCC |
| Channels | 1 |

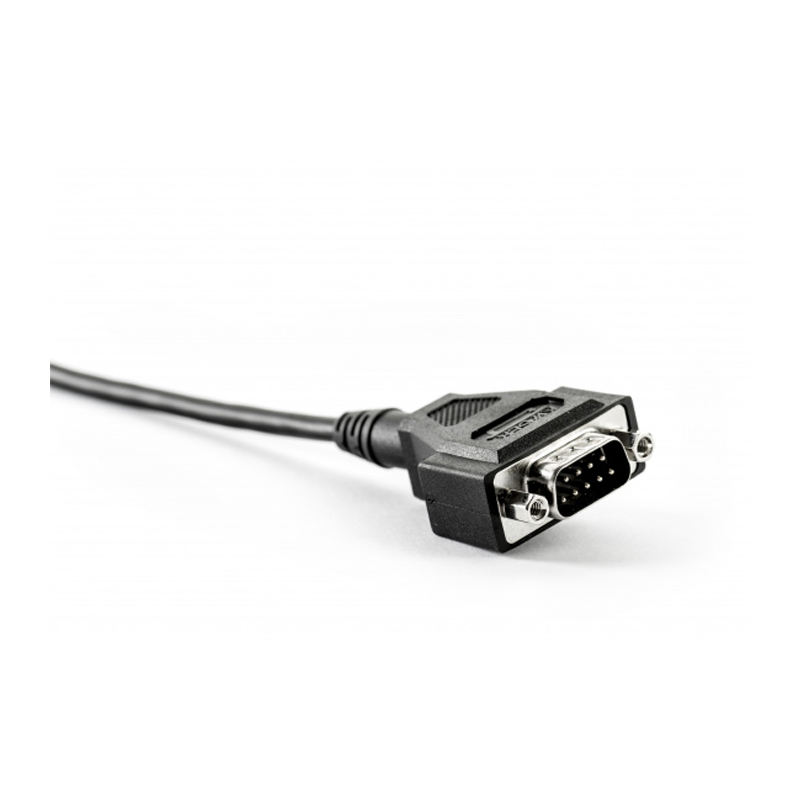

| Connectors | DSUB 9 |
| Galvanic Isolation | Yes |
| Height | 17 mm |
| Length | 151 mm |
| Material | Aluminium, PA6 |
| Silent mode | No |
| Temp Range | -40 °C to 85 °C |
| Weight | 93g |
