Description

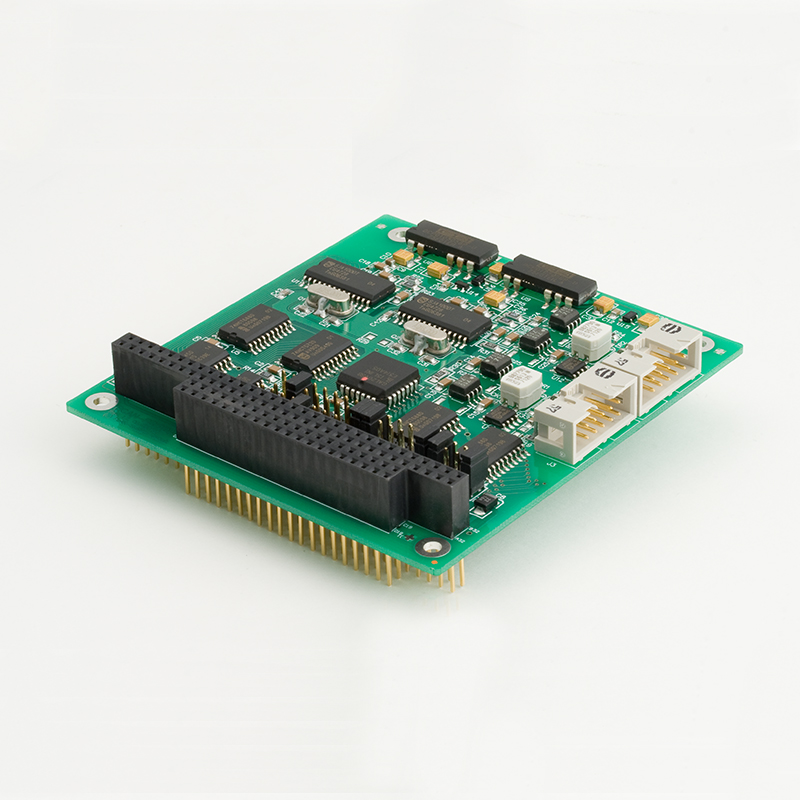

The PCAN-PC/104 card enables the connection of one or two CAN networks to a PC/104 system. Multiple PCAN-PC/104 cards can easily be operated using interrupt sharing.

The card is available as a single or dual-channel version. The opto-decoupled versions also guarantee galvanic isolation of up to 500 Volts between the PC and the CAN sides.

The package is also supplied with the CAN monitor PCAN-View for Windows^® and the programming interface PCAN-Basic.

Specification

• Form factor PC/104
• Multiple PC/104 cards can be operated in parallel (interrupt sharing)
• 14 port and 8 interrupt addresses are available for configuration using jumpers
• 1 or 2 High-speed CAN channels (ISO 11898-2)
• Bit rates from 5 kbit/s up to 1 Mbit/s
• Compliant with CAN specifications
  2.0A (11-bit ID) and 2.0B (29-bit ID)
• Connection to CAN bus through D-Sub slot bracket, 9-pin (in accordance with CiA^® 303-1)
• NXP SJA1000 CAN controller, 16 MHz clock frequency
• NXP PCA82C251 CAN transceiver
• 5-Volt supply to the CAN connection can be connected through a solder jumper,
  e.g. for external bus converter
• Galvanic isolation on the CAN connection up to 500 V, separate for each CAN channel
  (only for IPEH-002056 and IPEH-002057)
• Extended operating temperature range from -40 to 85 °C (-40 to 185 °F)

Pin Assignment D-Sub

Product Includes...

• PCAN-PC/104 card
• Slot bracket with D-Sub connectors for the CAN bus
• Device drivers for Windows^® 10, 8.1, 7 and Linux (32/64-bit)
• Device driver for Windows^® CE 6.x (x86 and ARMv4 processor support)
• CAN monitor PCAN-View for Windows^®
• CAN monitor PCAN-View for DOS
• Programming interface PCAN-Basic for developing applications with CAN connection
• Programming interfaces for standardized protocols from the automotive sector
• Manual in PDF format
