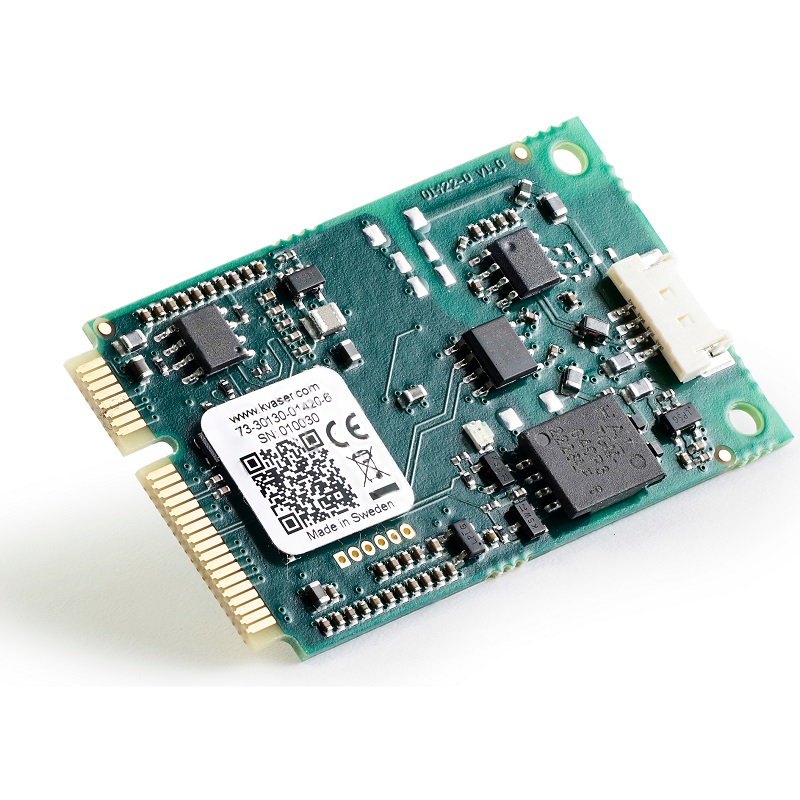

Kvaser Mini PCI Express 1xCAN v3
Part No.: MPKV-01420-6
It handles transmission and reception of standard and extended CAN messages on the bus with a high time stamp precision.
產品介紹
Description
Kvaser Mini PCI Express 1xCAN v3 is a small, yet advanced, real time CAN interface that handles transmission and reception of standard and extended CAN messages on the bus with a high time stamp precision. The Kvaser Mini PCI Express 1xCAN v3 is compatible with applications that use Kvaser‘s CANlib.
Major features
- Mini PCI Express CAN interface.
- Supports CAN FD, up to 8 Mbit/s.
- Quick and easy plug-and-play installation.
- Supports both 11-bit (CAN 2.0A) and 29-bit (CAN 2.0B active) identifiers.
- 100 % compatible with applications written for other Kvaser CAN hardware with Kvaser CANlib.
- High-speed CAN connection (compliant with ISO 11898-2), up to 1 Mbit /s.
- Fully compatible with J1939, CANopen, NMEA 2000® and DeviceNet.
- Supports silent mode for analysis tools – listen to the bus without interfering.
- Supports simultaneous usage of multiple Kvaser interfaces.
Specification
| Bitrate | 20-1000 kbps |
|---|---|
| CAN FD Bitrate | Up to 8 Mbit/s |
| Categories | Cables, Interfaces, Hardware, CAN |
| Certificates | CE, RoHS |
| Channels | 1 |
| Connectors | Molex 53780 PanelMate TM |
| Current Consumption | Typically 180 mA at 3.3 V. |
| Error Counters Reading | No |
| Error Frame Generation | Yes |
| Galvanic Isolation | Yes |
| Height | 5 mm |
| Interfaces | Mini PCI Express |
| Length | 30 mm |
| Messages Per Second Receive | 20000 mps |
| Messages Per Second Sending | 20000 mps |
| OS | Linux, Win 7, Win 10, Win 8 |
| Silent mode | Yes |
| Sound | No |
| Temp range | -40 °C to +85 °C |
| Timestamp Resolution (µs) | 1 µs |
| Weight | 5 g |
