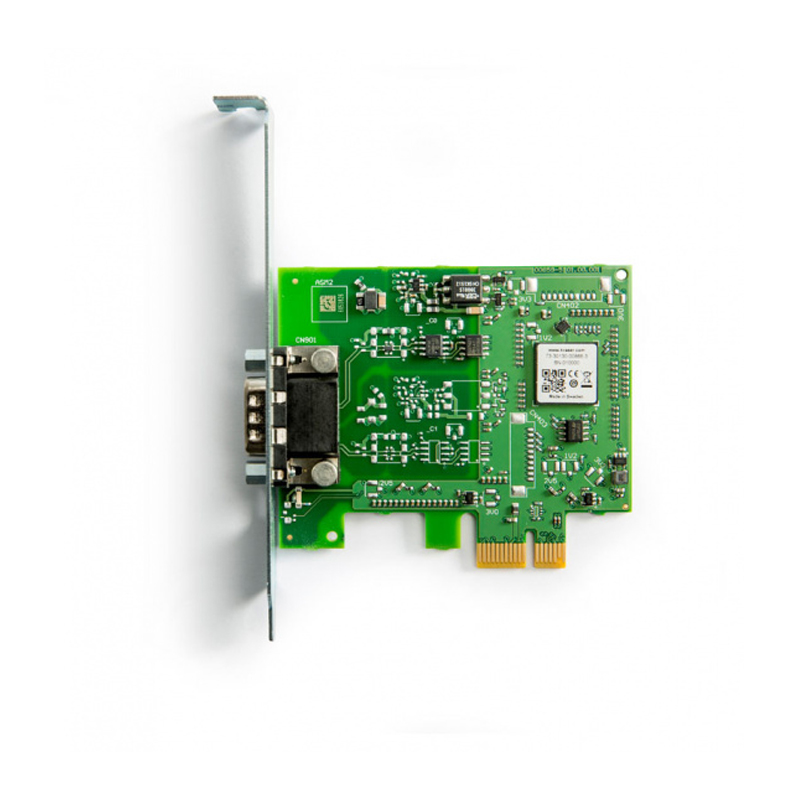

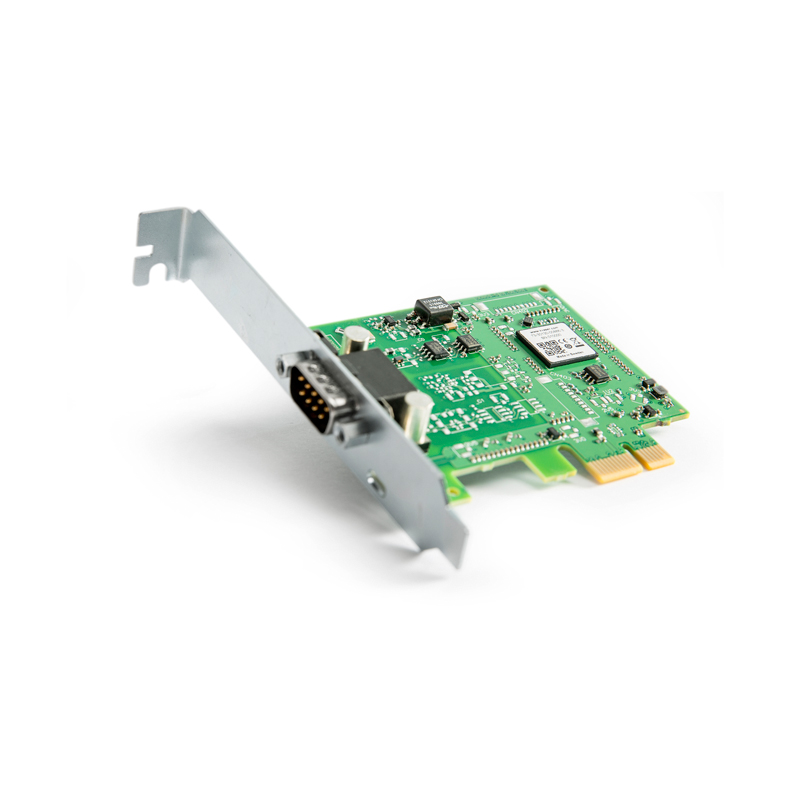

Kvaser PCIEcan HS v2 is a highly integrated, high speed controller area network (CAN) card that adds a single high speed (ISO 11898-2) CAN channel to any standard computer board with PCI Express capability. At 86 x 69 mm, this has a smaller form factor and lower profile than the Kvaser PCIEcan HS.

Offering silent mode, error frame detection/generation and an on-board buffer, this add-on board fits many embedded data acquisition systems and is CAN FD compliant.


Feature List:

• Standard (PCIe-x1) PCI Express interface.
• Quick and easy plug-and-play installation.
• Supports High Speed CAN (ISO 11898-2) up to 1Mbit/s.
• Supports CAN 2.0 A and 2.0 B (active).
• Supports CAN FD up to 8Mbit/s (with proper physical layer implementation).
• Low profile card allows ultra-compact systems.
• Includes low and high profile brackets.
• Implements Kvaser’s CAN IP in an FPGA, resulting in high max message rate.
• Yellow LED indicates when a CAN message was received or sent.
• Fully compatible with J1939, CANopen, NMEA 2000 and DeviceNet.
• Fully compatible with applications written for other Kvaser CAN hardware with Kvaser CANlib.
• Supports silent mode for analysis tools – listens to the bus without interfering.
• Detection and generation of error frames and remote frames.
• Designed for standard and industrial computers.
• Galvanically isolated CAN bus drivers.
• Extended operating temperature range from -40 to 85°C.

Software

• Documentation, software and drivers can be downloaded for free at www.kvaser.com/downloads.
• Kvaser CANLIB SDK is a free resource that includes everything you need to develop software for the Kvaser CAN interfaces. Includes full documentation and many program samples, written in C, C++, C#, Delphi, Java, Python and Visual Basic.
• All Kvaser CAN interface boards share a common software API. Programs written for one interface type will run without modifications on the other interface types!
• J2534 Application Programming Interface available.
• RP1210A Application Programming Interface available.
• On-line documentation in Windows HTML-Help and Adobe Acrobat format.
