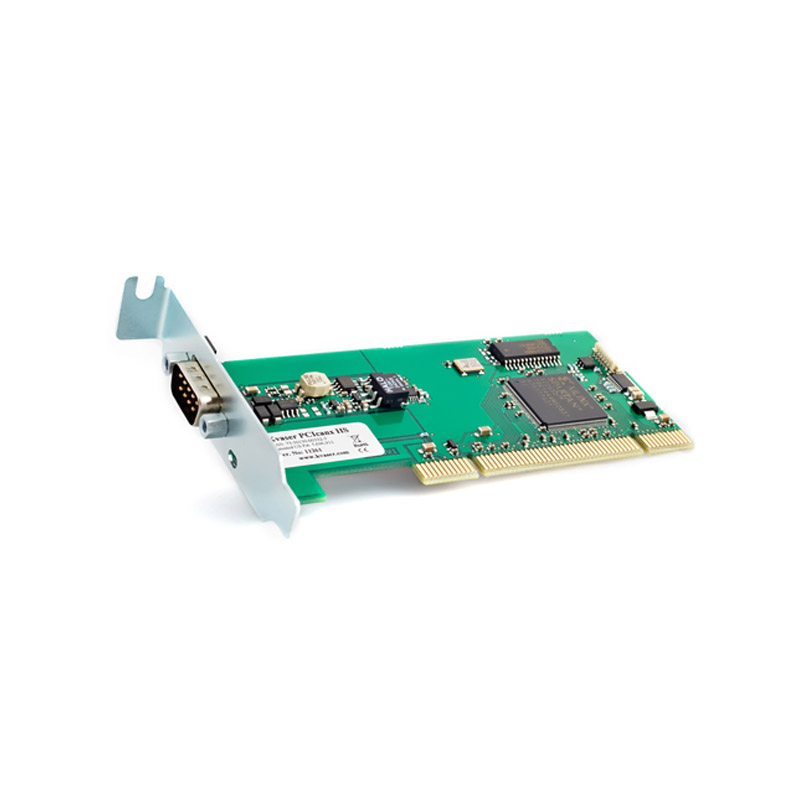

Kvaser PCIcanx HS is a one channel, high speed CAN (controller area network) interface that can be used in both regular PCI and PCI-X slots. A galvanically isolated CAN bus driver protect the hardware, whilst the on board micro controller ensures high throughput.

Major Features

• Quick and easy plug-and-play installation.
• High-speed ISO 11898 compliant driver.
• Compliant with PCI 2.3
• The board fits in 3.3V PCI-X, and 3.3V and 5V PCI busses.
• Compatible with our PCIcan boards.
• I/O mapped for quick reaction times.
• SJA1000 CAN Controllers from Philips, with 64-byte receive FIFO.
• Supports CAN 2.0 A and 2.0 B (active).
• Pin assignment according to CiA-DS102.
• 16 MHz CAN oscillator frequency.
• Galvanic isolation between the CAN-controller and the CAN-driver.
• Interfaces the CAN bus with DSUB CAN connector.
• Wide temperature range, -40°C - +85°C.

Software

• Documentation, software and drivers can be downloaded for free at www.kvaser.com/downloads.
• Kvaser CANLIB SDK is a free resource that includes everything you need to develop software for the Kvaser CAN interfaces. Includes full documentation and many program samples, written in C, C++, C#, Delphi, and Visual Basic.
• All Kvaser CAN interface boards share a common software API. Programs written for one interface type will run without modifications on the other interface types!
• J2534 Application Programming Interface available.
• RP1210A Application Programming Interface available.
• On-line documentation in Windows HTML-Help and Adobe Acrobat format.
