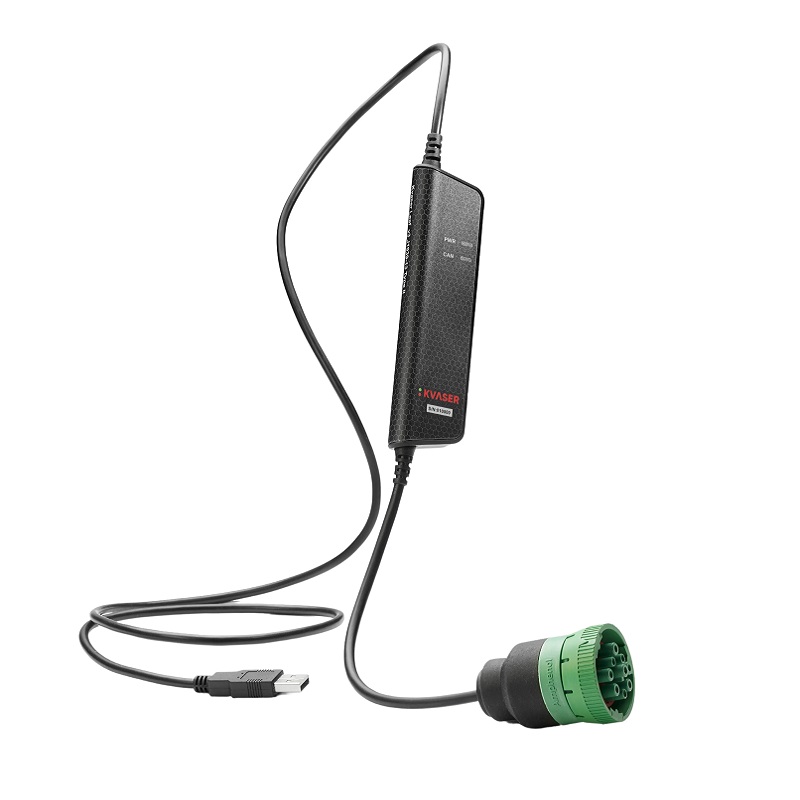

Kvaser Leaf v3 J1939-13 Type II
Part No.: MPKV-01426-8
It is a reliable CAN interface with a USB Type-A connector and 9-pin J1939-13 Type II connector, designed for heavy-duty vehicle diagnostics.
產品介紹
Description
The Kvaser Leaf v3 J1939-13 is a reliable tool for connecting a computer to a CAN bus network, enabling the monitoring and transmission of CAN and CAN FD data. It features a USB Type-A connector and a 9-pin J1939-13 Type II connector; the latter is commonly used for diagnostics and communication in heavy-duty vehicles.
The Type II connector, colour-coded in green and supporting either 250 Kbps or 500 Kbps, is backward-compatible with the older Type I connector, colour-coded in black and limited to 250 Kbps.
Offering excellent value, the Kvaser Leaf v3 J1939-13 ensures reliable communication for vehicle networks where the J1939 protocol is critical.
Major features
- USB 2.0 CAN interface.
- Powered through the USB Type-A connector.
- Compact 9-pin J1939-13 Type II connector with extra strong strain relief.
- Supports CAN FD, up to 8 Mbit/s.
- Quick and easy plug-and-play installation.
- Supports both 11-bit (CAN 2.0A) and 29-bit (CAN 2.0B active) identifiers.
- Supports silent mode for analysis tools – listen to the bus without interfering.
- 20 000 msg/s, each timestamped with a resolution of 50 μs.
- Fully compatible with applications written for other Kvaser CAN hardware with Kvaser CANlib.
- Support for SocketCAN.
- Supports simultaneous usage of multiple Kvaser interfaces.
Technical Specification
| Bitrate (kbps) | 20 - 1000 kbps |
|---|---|
| CAN FD Bitrate | Up to 8 Mbit/s |
| Categories | Interfaces, Hardware, CAN |
| Certificates | CE, FCC |
| Channels | 1 |
| Connectors | J1939-13 Type II |
| Error Counters Reading | No |
| Error Frame Generation | No |
| Galvanic Isolation | Yes |
| Silent Mode | Yes |
| Height | 17 mm |
| Interfaces | USB |
| Length | 165 mm |
| Messages Per Second Receive | 20000 mps |
| Messages Per Second Sending | 20000 mps |
| Temp range | -20 °C to 70 °C |
| Timestamp Resolution (µs) | 50 µs |
| Weight | 160 g |
